Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³ / Cycle

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³ / Cycle

China Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³  /  Cycle supplier
Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³  /  Cycle supplier Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³  /  Cycle supplier

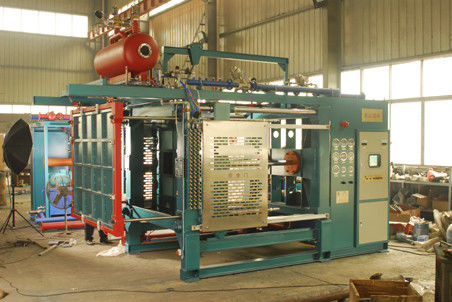

Large Image :  Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³ / Cycle

Product Details:

Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: FAV 2000E

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-40000/ SET
Packaging Details: packed with pvc film
Delivery Time: 50 Days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Mould Dimension: 2000 * 1650 Mm Max Product Dimension: 1850 * 1500 *420 Mm
Stroke: 150 -1500 Steam Entry: 4" (DN 100) Inch
Steam Consumption: 9 - 15 Kg / Cycle Steam Pressure: 0.5 - 0.7 Mpa
Cooling Water Entry: 3"(DN 80) Cooling Water Pressure: 0.3 - 0.5 Mpa
Cooling Water Consumption: 90 - 220 Kg / Cycle Compressed Entry: 2.5" (DN 65)
Compressed Consumption: 2.5 M³ / Cycle Compressed Pressure: 0.5 - 0.7 Mpa
Drainage: 6" ( DN 150) Capacity 15 Kg / M³: 100 - 200 S
Connected Load /Power: 16.5 KW Overall Dimension: L 4700 * W 2240 *H 3680 Mm
Weight: 7000 Kg



Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³  /  Cycle



Auto shape moulding machine with executable automatic ,
semi - automatic and manual operation in the middle f 4 modes



1.  Long working life
2.  Energy saving
3.  Fast molding time
4.  Famous brand part



Application:



1.  The machine adopts PLC programmable controller

      and touch human-machine interface control,

     advanced foam molding process,can produce a variety of products.



2.  The machine produced a variety of foam products,low power consumption,

      size and stability.



3.  The machine executable automatic,semi-automatic

     and manual operation started in the middle of four operating mode,

    equipped with safety protectin devices,can ensure safe and reliable operation.



4. The machine uese programmable controllers,touch human-machine interface.

     Executable computer production control management,high degree of automation,

     simple operation,easy maintenance,labor intensity at the end.



5. The machine adopts the international advanced electrical and hydraulic intergration,

     improve the speed of molding products,a significant reduction in energy consumption

     and reduce ebvironmental pollution.



6.  The machine uses a variety of heating progress,a variety of feeding methods and cooling.



7.  The machine vacuum system to accelerate the rate of product effectiveness,

     reduce cooling time,product moisture content is low.



8.  The machine uses the control instruments,electrical,pneumatic components,valves

     and other supporting both domestic and foreign high-quality brand-name products.



9.  The aircraft complete fault diagnosis and motor overload protection system,relay protection,

     and ensure safe operation of the PLC and touch human-machine interface.



10. The aircraft FAV1400 type machine mold box to Unviversal 1000-1400mm mold,

       FAV 1750 mold box to Universal 1400-1750mm mold.



11. The aircraft can choose mechanical or hydraulic release models.

       Pneumatic de-mould, mould moving actuated by two hydraulic cylinders





Technology Data:



Item

Unit

FAV2000E

Mould Dimension

mm

2000*1650

Max Product Dimension

mm

1850*1500*420

Stroke

mm

150~1500



Steam

Entry

Inch

4’’(DN 100)

Consumption

Kg/Cycle

9~15

Pressure

Mpa

0.5-0.7



Cooling Water

Entry

Inch

3’’(DN 80)

Consumption

Kg/Cycle

90~220

Pressure

Mpa

0.3-0.5



Compressed Air

Entry

Inch

2.5’’(DN65)

Consumption

m³/Cycle

2.5

Pressure

Mpa

0.5~0.7

Drainage

Inch

6”(DN150)

Capacity 15Kg/m³

S

100~200

Connected Load/Power

Kw

16.5

Overall Dimension(L*W*H)

mm

4700*2240*3680

Weight

Kg

7000

































































































Terms:



Terms of Payment:     30% advance payment by T/T upon signing of sales contract

                                   70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.



Delivery:                     60 days after receipt of advance payment.



Installation and Start-up:

                                  TWO technicians will be assigned to coordinate installation,

                                  commissioning and training; cost for flight ticket,

                                  suitable accommodation and additional USD 100/day

                                 each work fee will be covered by Buyer,



Warranty:                  12 months limited warranty

                                 starting from date of arrival excluding wear parts.

                                 Shipping cost for parts to be replaced during warranty                                                                                    period have to be borne by the customer.

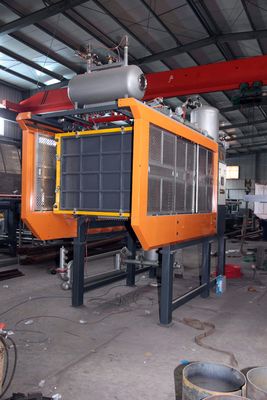

Semi - Automatic Auto EPS Shape Molding Machine PLC Controller 2.5 m³  /  Cycle
