Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam

China Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam supplier
Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam supplier Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam supplier Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam supplier Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam supplier

Large Image :  Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2012B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD30000-80000 / set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2000mm H X 2000 MmW X 3000mm L
Control System: Industrial Computer With D&T Special Profiler Software Horizontal Cutting Blade: 3×0.5mm (Width × Thickness)
Vertical Cutting Balde: 3×0.5mm (Width × Thickness) Cutting Speed: 0~10m/min (Adjustable)
Overall Weight: 2000kg Overall Dimension: 5800×3180×2400 Mm

Brake System Sponge Cutter / Oscillating Blade Cutter For Polyurethane Foam





Application:



Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam,

frame foam, polyethylene.





Description:

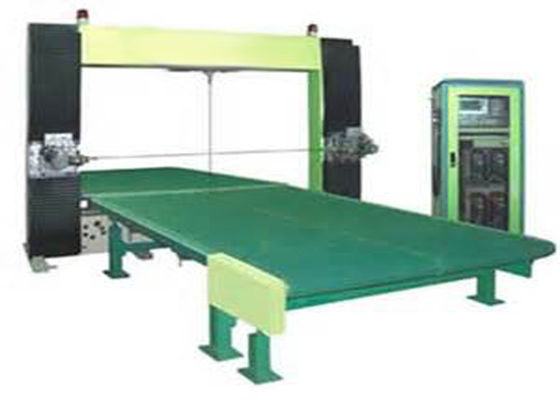

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which

suitable flexible foam. The blade cut with high speed vibrating, resulting that it will work

faster and the product will be smoother. Especially, no dust when you use Oscillating Blade

Contour Cutter to cut Flexible PU.





Specification:



Model

DTC-S2012B

Control System

Industrial Computer

Max. foam block Size

2000mm H x 2000 mmW x 3000mm L

Cutting Speed

0~10m/min (Adjustable)

Horizontal cutting Blade 3×0.5mm (Width × Thickness)
Vertical Cutting Balde 3×0.5mm (Width × Thickness)
Blade Tension Cylinder
Total Power 10kw, 380V, 50HZ
Overall Weight 2000kg
Overall Dimension 5800×3180×2400 mm







Software question:



1.Q: what kind of CAD software the machine uses?

A: For the CAD software ,our machine uses 2004 or 2006(you prefer )



2.Q: about the CAD software, what's its name?

A: The name is Auto CAD Software



3.Q: where do you sell your machines mostly? which countries?

A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,

    Brazil for different kind types



4.Q: the operating system which you use is windows, right?

        what kind of windows? XP? or Windows 7?

   A:Yes ,it is Windows XP.

      When operated,Our machine doesn't need to use network

      We usually use XP for its stability.Also windows 7 is OK.



5.Q:is your software licensed or it's illegal? ("cracked")

   A: our own profiler cutting software is develop by ourselves. It is origina



   Q:but the auto-cad and the windows? the auto-cad and the windows are original too

      I am asking  this question because our company use only licensed software

   A:windows is licensed; AutoCAD is testing type.

     our machines do not include the licensed AutoCAD

     if you have any drawing software, you can make the DXF file.



6.Q:the differences between our Fast Wire CNC Cutting machine and Oscillating Blade

       CNC Blade Cutting Machine.

   A:First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters

       use high-speed, toothed blade.



Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft

foam material, the better cutter is Oscillating Blade CNC cutter.



Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material

needs an extra dust pelletizing system and the soft material also is not good for the fast wire

cutter itself.

7.Q:For reputation and website:

   A: for the reputation ,we are 8 years golden supplier on Alibaba.

       And our engineers have researched our machine more and improved it better and better.

       We promise our machine will be as good as we told. Even we keep 10% for the guarantee

       until till install the machine well and the client satisfy with our machine.

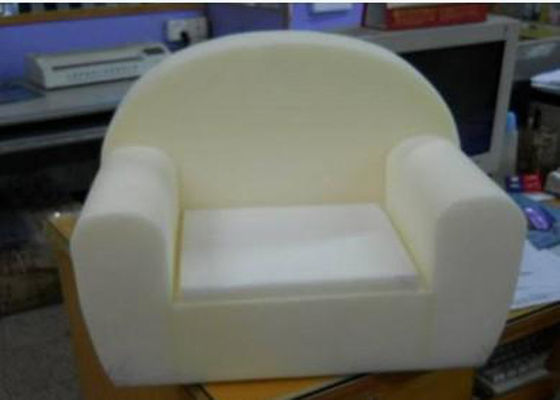

Finished products:



memory foam shape



Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam  Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam  Brake System Sponge Production Line / Oscillating Blade Cutter For Polyurethane Foam
