High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min

China High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min supplier
High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min supplier High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min supplier High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min supplier High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min supplier

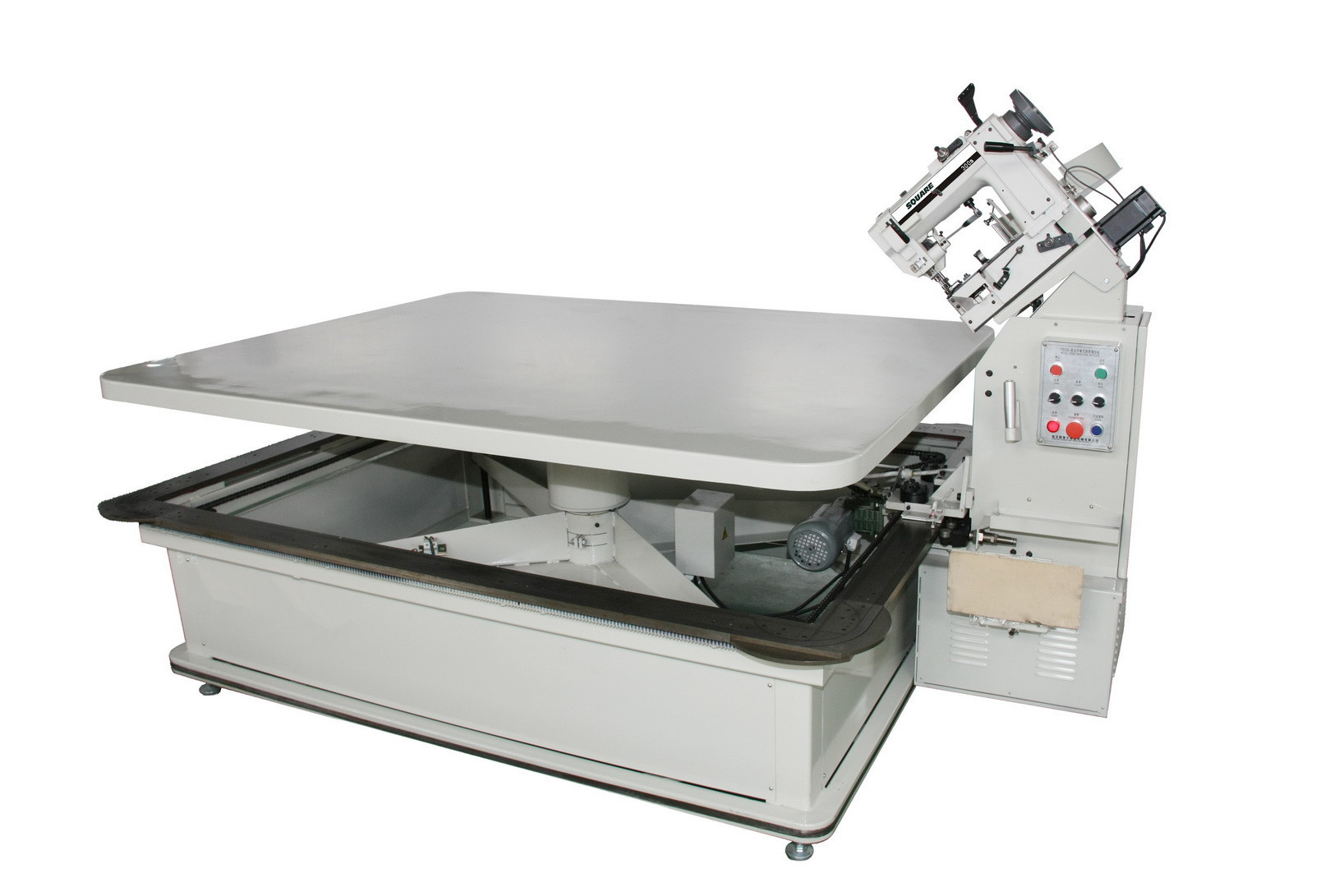

Large Image :  High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DT - 6C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000 - 40000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
HS Code: 84472030 Tilting Angle Of The Sewing Head: Be Adjusted Within 35 ° -55 °
Travel Speed: 50-300mm Table Size: 1400*1950mm ; 1550 Mm *2050 Mm ; 1800 Mm*1950 Mm

High Effeicient Mattress Tape Edge Sewing Machine High Speed 7m / min



Main Introduction:



1.  Hand-controlled lifting table, hand-controlled titling of sewing head.
2.  Hand-controlled speed for moving of carriage and sewing,

     hand-controlled slowdown at corners.

3.  Mainly used for tape edging of mattress panel, sleeping bag and tent.



Product Main Information:



The machine is mainly used for sewing Simmons mattresses,

mattress fabrics and wall coverings to complete the edges

between the package seam work, but also applies to other mattresses,

sofas upholstered sewing, sleeping bag.

The aircraft is equipped with hanging rotary power supply,

so that the machine can do continuous sewing.

Within the range of sewing trajectory can be arbitrarily fixed work,

sewing speed and process can be controlled by a knee lever.





Technical data

Tilting angle of the sewing head

Be adjusted within 35 ° -55 °

 Travel Speed

5.5-7.5m/min(Pulley stepless adjustment)

Mattress thickness

50-300mm

Table Size

1400*1950mm ; 1550 mm *2050 mm ;

1800 mm*1950 mm

Power

0.75KW























































Terms:



Payment:   30% advance payment by T/T upon signing the contract

                  70% covered by T/T or Sight Confirmed Irrevocable L/C before delivery.

Delivery:    40 days after receipt of advance payment.



Installation and Start-up:

                   One technician will be assigned to coordinate installation,

                   commissioning and training, cost for flight and suitable accommodation

                   plus USD80/day per person will be charged additionally.



Warranty:  12 months limited warranty starting from date of delivery excluding wear parts.

                  Shipping cost for parts to be replaced during

                  warranty period have to be borne by the customer.
