2mm Thick Sponge Block Horizontal Foam Cutting Machine Customized

1 set
MOQ
USD5000-35000/SET
Price
2mm Thick Sponge Block Horizontal Foam Cutting Machine Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Foam Horizontal Cutting Machine
Cutting Size: 2500*1650*1000mm
Control System: Transducer
Weight: 1200kg
Power: 8.14kw
Cutting Speed: 0-25m/min
Colour: Customized
Product Name: DTPQ-1650 2mm Thick Sponge Block Cutting Horizontal Foam Cutting Machine
Highlight:

2mm Thick Horizontal Foam Cutting Machine

,

Sponge Block Horizontal Foam Cutting Machine

,

2mm Sponge Block Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTPQ-1650
Payment & Shipping Terms
Packaging Details: packed with PVC Film
Delivery Time: 20-40DAYS
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

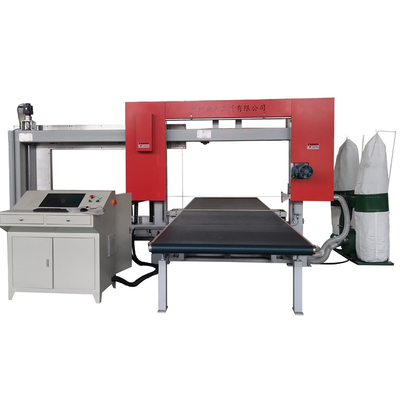

DTPQ-1650 2mm thick Sponge Block Cutting Horizontal Foam Cutting Machine



This cutter adopts the advanced Frequency conversion system. It is used for sponge sheet cutting. Automatic number controlled. It is operation is handy and cutting is exact. This machine can also be supplied with pressure roller.



TECHNICAL DATA

Type

DTPQ-1250

DTPQ-1650

DTPQ-2150

Max. Product Size

2500×1250×1200(mm)

2500×1650×1200(mm)

3000×2150×1200(mm)

Cutting Line

8500 mm

8500 mm

9820 mm

Control System

Transducer

Transducer

Transducer

Cutting Speed

0~25m/min

0~25m/min

0~25m/min

Overall Power

8.14kW

8.14kW

8.14kW

Overall Dimension

5800×3100×2400 mm

5800×3500×2400 mm

7800×4200×2400 mm

Overall Weight

2000kg

2000kg

2200kg






Our Service



1. Our engineers can coordinate installation, commissioning and training abroad.

Airfare and suitable accommodation plus USD 60 per person per day

Additional charge.

2. Free maintenance for life.

3. Free factory training courses.

4. 24 hours a day online service, free technical support.
5. The machine has been adjusted and tested before leaving the factory.


FAQ



1. Q: Are you a factory?


A: Yes, we are a manufacturer and have been making foam machines since 2006.

2. Q: Which drawing software do you use?

Automotive Computer Aided Design.

3.Q: Can your engineer come to our factory to install the machine?

A: Yes, of course.

4. Q: Can you import DXF files from other sources?

Yes. Any DXF file is acceptable.

5. Q: The other express machine has the function of dust removal and filtering. Does this machine also have a dust removal function?

A: Yes, including it.


6. Q: Which countries are your products sold to?

A: Canada, Mexico, Brazil, Australia, Singapore, Malaysia, UAE, Yemen, Qatar, Algeria, etc.


7. Q: What safety control measures does the machine have?


A: There are emergency stop devices on the control box and the machine.


There are two fences around the cutting frame, open the fences and the machine stops.



Company Information



Fuyang D&T Industrial Co., Ltd. specializes in the production of CNC foam cutting machines, polyurethane cutting machines, 3D panel machines, concrete sprayers and auxiliary equipment for foam relations. Through the research of our engineers, our cutting machines are compatible with

The CAD technology has been popularized to realize automation, high efficiency, high precision and convenient operation. We always put our customers first and do our best to keep you satisfied. We wholeheartedly look forward to developing economic, technical and trade cooperation with you.

Products: fast wire cutting machine, pu cutting machine, hot wire cutting machine, eps

Cutting machine, 3D panel production line, concrete spraying machine, etc.
