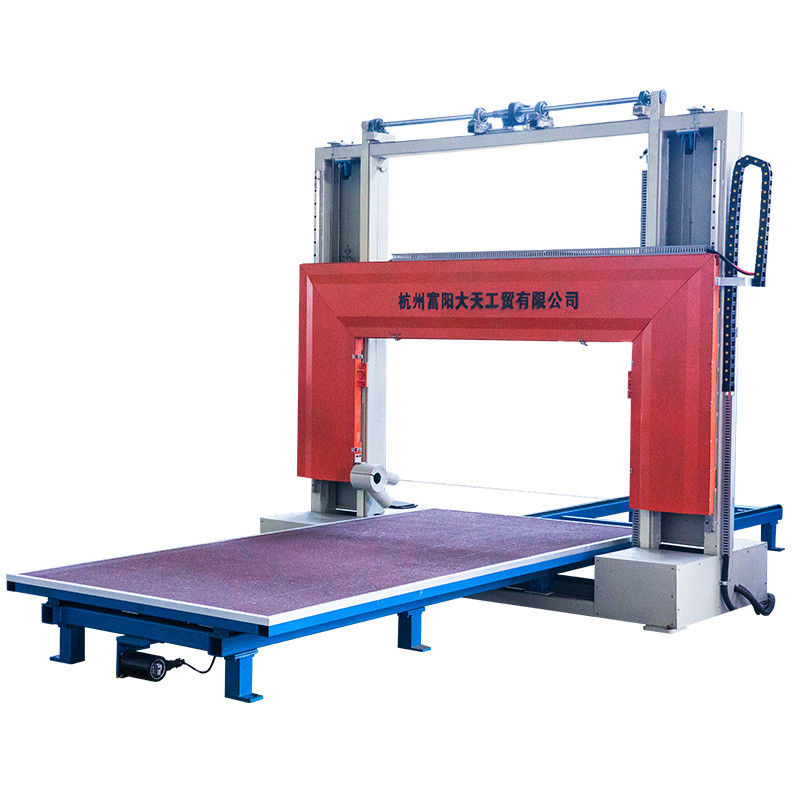

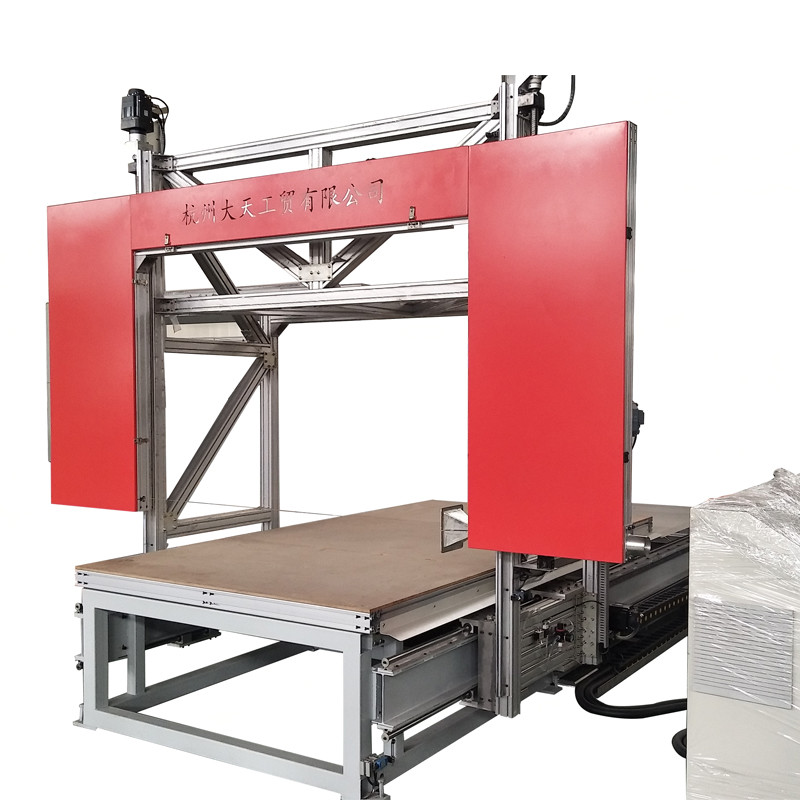

Technical Data of 2D CNC Fast Wire Cutting Machine
| TECHNICAL DATA |
|
|
|
| Type |
DTC-F1212 |
DTC-F2012 |
DTC-F2512 |
| Max. Product Size |
2500*1200*1000(mm) |
2500*2000*1200(mm) |
2500*2500*1200(mm) |
| Cutting Line |
1.3~1.5mm |
1.3~1.5mm |
1.3~1.5mm |
| Control System |
Industrial Computer |
Industrial Computer |
Industrial Computer |
| Software |
D&T Profiler |
D&T Profiler |
D&T Profiler |
| Cutting Speed |
0~6m/min |
0~6m/min |
0~6m/min |
| Precision |
±0.5mm |
±0.5mm |
±0.5mm |
| Power |
<5.5kw |
<6.5kw |
<8.5kw |
| Vacuum De-dust |
Included |
Included |
Included |
| Overall Weight |
1200kg |
1500kg |
2200kg |
| Overall Dimension |
4800*2400*2380mm |
4800*3200*2800mm |
4800*3800*2800mm |
1. Features:
1. It is advanced and fully automatic computerized foam contour cutting machine.

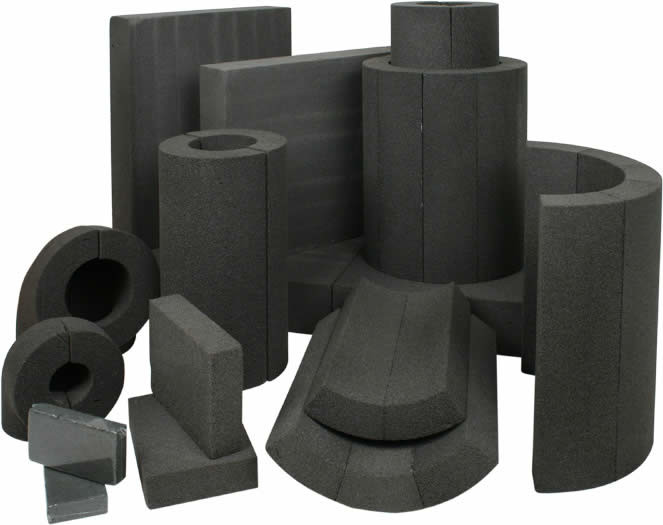

2. Can cut foam into any 2D complex shape.
3. Easy control
This foam cutting machine is most advanced and
fully automatic computerized foam contour cutting machine,
which can cut the various shape by computerized system.
1. This eva foam contour cutting machine is operated by computer
and use CAD software to design the shape for the foam block.
Make full use of the foam blocks and
extremely save the raw material(foam blocks) cost.
2. Besides CAD software, we also design another drawing software
by our engineers which is very easy to use.
Operators only need to go through simple computer literacy training.
3. This CNC contour cutter is equipped with wireless remote control
which makes the operation more humane convenient.

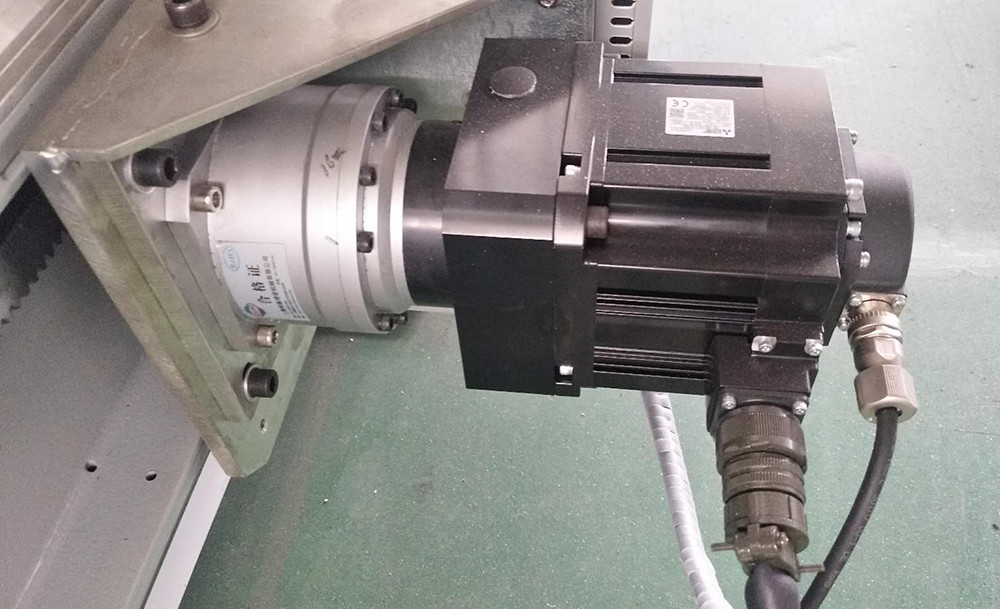

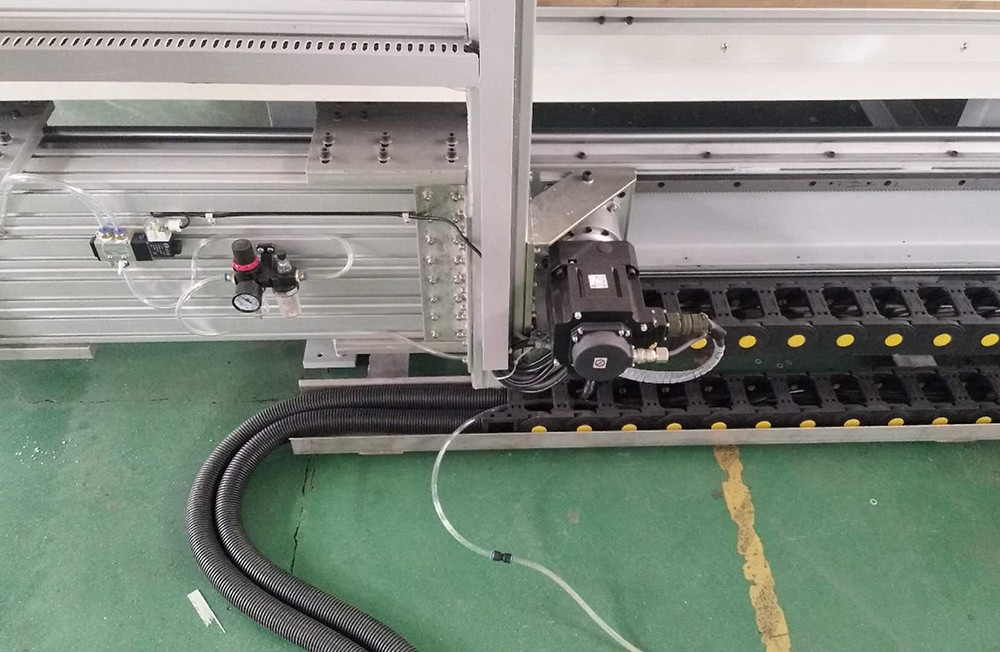

4. Equipped with high precision servo mechanism system;
Rapid cutting speed and accurate cutting; which enhance the working efficiency.

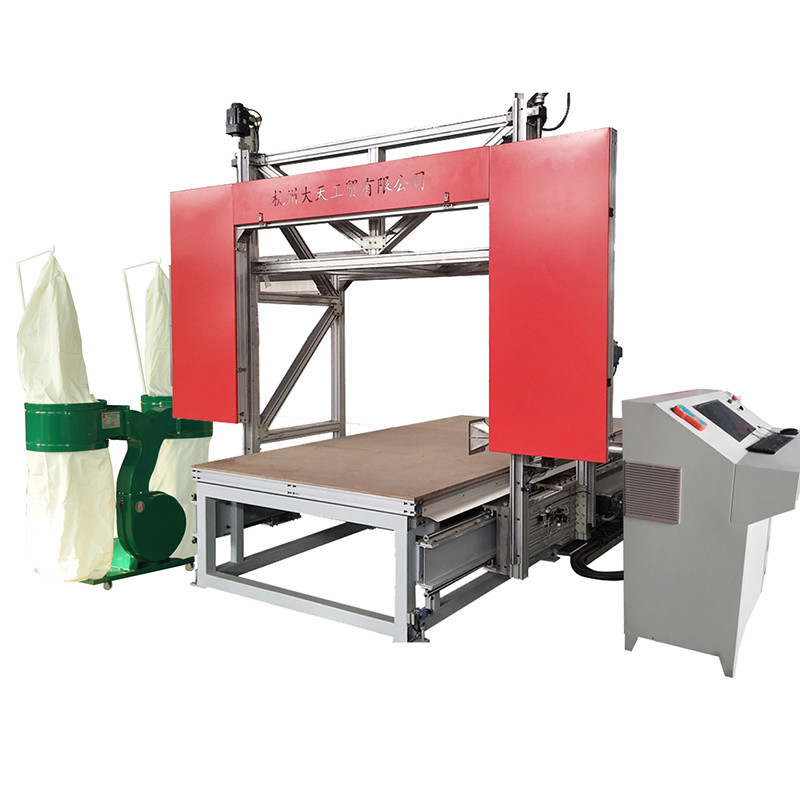

5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: Foam cutting control system
Our Services
After-sale Service:
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day each person will be charged
additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have to be borned by the customers.
Terms of Paypent: 30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
Question:
1. Q:Are you a factory ?
A:Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering.
Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop when you open the fence.
Packing:
For the packing, there are a professional team to loading the cargo.
and also, we have some long-term cooperation with the shipping agent
who is rich experience of carrier.
So do not worry, it can save money and safe for you.
