Full Automatic Sponge Production Line/PU Foam Manufacturing Machines
1,Brief Introduction
As the technology increasingly matures, sponge mainly made out of Polyurethane (PU) is the most welcomed product in the decorative industry presently based on its multi-dimensional advantages: fireproof, anti-static, sound-insulated, heat-retaining, sprung, recyclable, etc.
D&T, specializing in this area for almost 10 years, has been providing our clients state-of-the-art machines, advanced technical formulation, special worker-training, and prompt and all-around after service on the purpose that our clients could adopt international-standard technology and machines producing the most economical and best-quality sponges. We believe we could success together.
2, Instruction of Main Disposition and Material

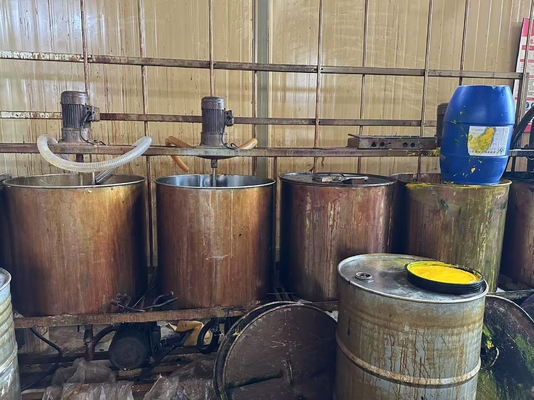

1. Raw Material Pot (Atmospheric pressure)
|
Type
|
Usage
|
Specification
|
Quantity
|
|
Big pot
|
PPG
|
6m³/δ 5mmA3 Carbon Steel with constant
temperature
|
1
|
|
Big pot
|
PPG+ Powder,
white oil
|
4m³/δ 5mmA3 Carbon Steel with constant
temperature system
|
2
|
|
Big pot
|
TDI
|
4m³/δ 4mm Stainless Steel, stirs with constant
temperature
|
1
|
|
Big pot
|
MC
|
2m³/δ 3mm Stainless Steel, with constant
temperature
|
1
|
|
Pot
|
Water
|
400L/δ 1.5mm Stainless Steel,with Automatic
water-adding system and water filter
|
1
|
|
Pot
|
Silicon Oil,
Fireproof, Black
|
200L/δ 1.5mm Stainless Steel
|
3
|
|
Pot
|
Amine, Stannum,
Color Matter
|
120L/δ 1.5mm Stainless Steel
|
4
|
|
Pot
|
Stone powder stirs
|
1.0m³/δ 3mm/A3 steel strap stirs
|
1
|
|
Pot
|
MC
|
118L standard pot
|
1
|
Description:
This machine is mostly used for producing of soft urethane foam rubber productions
(density is about 10-50kg/m³).
It’s automaton-action level is high.the production is low low cost and the operation is
simple.It is desirable equipment to manufacture products of foam rubber in furniture,
shoes,circumference,electron clothing and automobile industry.
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery or sight confirmed L/C.
Installation and Start-up: 2 technicians will be assigned to coordinate installation,commissioning
training, cost for flight and suitable accommodation plus USD60/day will be charged additionally.
Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
