Name: DT Fast Wire PE Rigid PU Foam Sheet Machine Foam Cutter Factory for 2 Axis Foam Cutter EPS Foam Cutting Machine
Brand: Fuyang D&T Industry Co., Ltd.
SKU: DTC-F1212
Price: 28,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Max. Block Size: 2500*1200*1200mm( Customized)

Material Can Be Cut: Rigid PU,Pir,EPS,rock Wool,ets.

Cutting Wire Length: ~8500mm (Should Be Confirmed By Maker By Machine)

Flying Wheel Diameter: 300 Mm/ 400 Mm

Mainly Motor: ABB, 3kW

Running Speed Of The Wheel: 2860rpm

Cutting Speed: 0 ~ 6m/min

Precision: ± 0.5mm

Basic Infomation

Place of Origin: China

Brand Name: D&T

Certification: CE

Model Number: DTC-F1212

Payment & Shipping Terms

Packaging Details: WOODEN BOX

Delivery Time: 30 WORK DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 15 SETS PER MONTH

Gallery

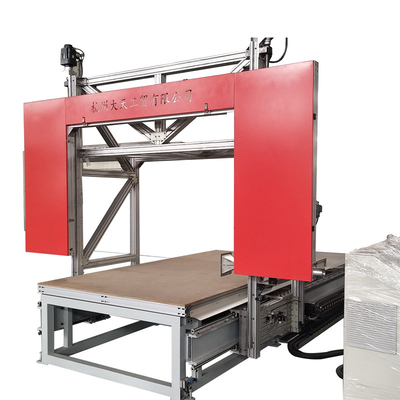

DT Fast Wire PE Rigid PU Foam Sheet Machine Foam Cutter Factory for 2 Axis Foam Cutter EPS Foam Cutting Machine

Product Description

DT Fast Wire PE Rigid PU Foam Sheet Machine Foam Cutter Factory for 2 Axis Foam Cutter EPS Foam Cutting Machine DTC-F1212

Fast wire mesh PE foam board machine with hot wire foam cutter

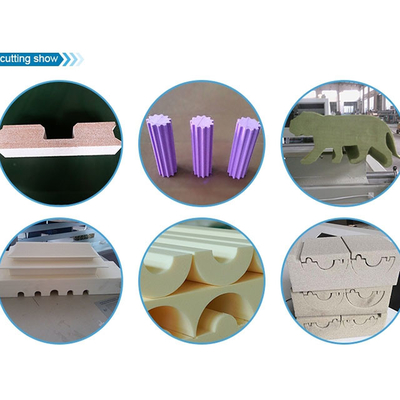

Suit for clean cut geometric outline, the furniture industry, the packing auto industryand other daily necessities etc...

Performance characteristic: suitable for small batch, various geometry shape and complex sponge products.

Machine model DTC-SD2012 is the new design, the reasonable gear design can fixthe inner fittings very well. Meanwhile,

highly enhance the equipment's thermolysis.

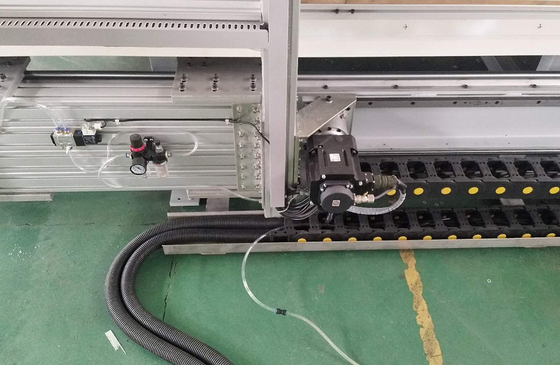

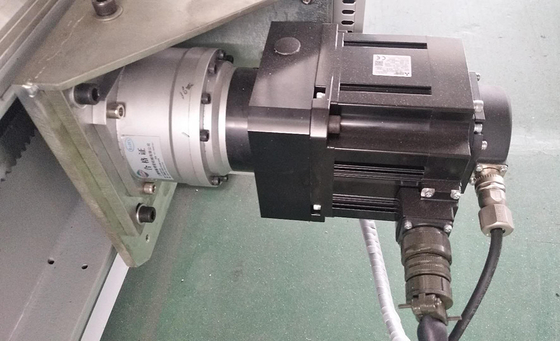

The new transmission parts design, increases the stability of the transmission system,the synchronization, and improves the cutting precision.

The new electrical cabinet's design, uses the space of the platform, takes a samll area,

highly improves the use of the utilizaiton degree fo space.

All the new models are same design products, this series machine models are freely

used with each other. Meantime, improving the degree of automation. Increasing the

prodution efficiency, the over production efficiency is increased50%.

The heating switch is controlled by our D&T software.

Hot wire power: 2kw

Model	DTC-F1212
Max. Block Size	Length	2500mm(~4 feet)
	Width	1200mm(~3 feet)
	Height	1200mm(~3 feet)
Material can be Cut	Rigid PU PIR EPS Miner Wool Polypropylene Honeycomb Paperboard ……
Control Device	Industrial Computer
Computer Operation System	Windows 7
Software	D&T Profiler
Acceptable File Formats	DXF/DWG
Number of Cutting Wire	One
Cutting Wire Length	~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter	1.3~1.5mm
Flying Wheel Diameter	300 mm/ 400 mm

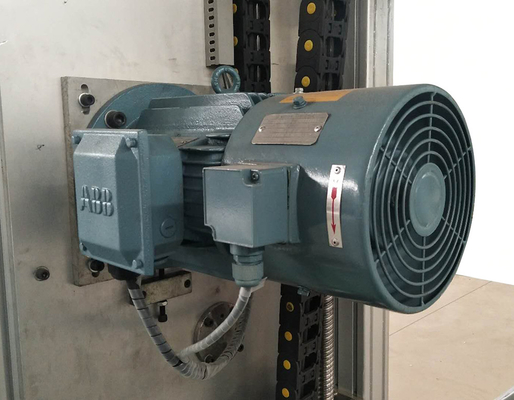

Mainly Motor	ABB, 3kW
Running Speed of the wheel	2860rpm
Inverter	Panasonic, for 3kW motor
Cutting Speed	0 ~ 6m/min
Precision	± 0.5mm
Total Power	~5.5kW, 230V, 60Hz
Gross Weight	1200kg
Overall Dimension	L6200×W2400×H2380mm
