D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine

1set
MOQ
USD 15000-35000 /PC
Price
D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Wire Diameter: 0.8~2.0mm
Cutting Wire Length: ~8500mm
Max. Block Size: 2500mm*1300mm*1000mm
Material Can Be Cut: Rock Wool Miner Wool Flexible
Number Of Cutting Wire: Dual Wire (Horizonal +Vertical)
Flying Wheel Diameter: 400mm
Mainly Motor: ABB, 3kW*2pcs
Running Speed Of The Wheel: 2860rpm
Cutting Speed: 0~10m/min
Highlight:

foam cutting machinery

,

foam cutting equipment

,

CNC PVC Pipe Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-FKD2012
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union.paypal
Supply Ability: 20 SETS PER MONTH
Product Description

 D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine
 D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine 0



Technical Specifications

Max.Block size 2500*1300*1000mm (L*W*H)

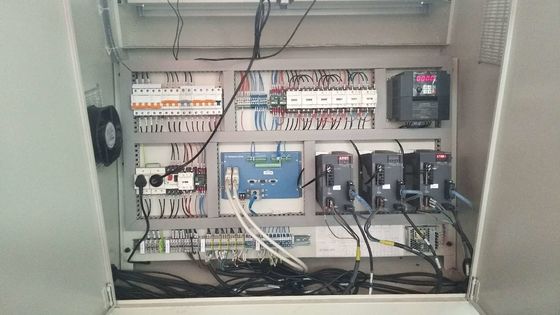

Control Device Industrial computer
Computer Operation System Win7
Software D&T Profiler
Acceptable File Formats DXF/DWG/CDR
Number of Cutting Wire Dual Wire (Horizontal+Vertical)
Cutting Wire Length of Horizontal ~8260mm(should be confirmed by maker by machine)
Cutting Wire Length of Vertical ~9050mm(should be confirmed by maker by machine)
Cutting Wire Diameter Φ0.8~2.0mm
Flying Wheel Diameter 400mm

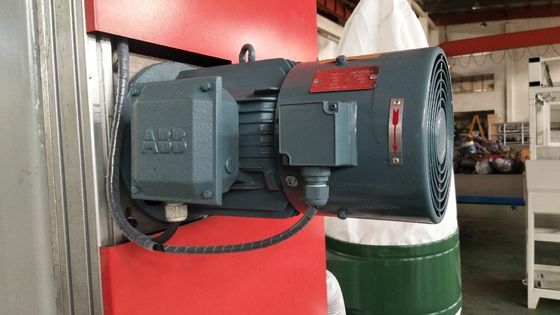

Mainly Motor ABB,3kW*2pcs
Running Speed of the Wheel 2860rpm
Inverter Panasonic,for 3kW motor
Cutting Speed 0~10m/min
Precision ±0.5mm
Total Power 14kW,380/220V,50Hz (customizable)
Gross Weight 2800kg
Overall Dimension 6240*5460*2690mm

Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
Fast Wire Contour Cutter

Cutting line: Fast cutting wire

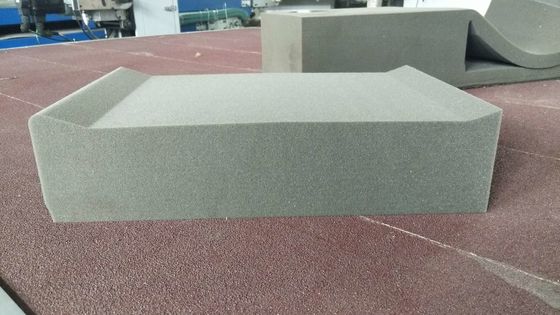

The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D
shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain
the best yield from the foam block.
Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident; brake system when cutting line broken.
