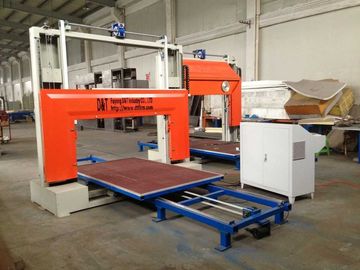

D&T DTC-F2512 vacuum de-dust Sponge Rigid PU Foam Cutting Machine

1 set
MOQ
USD27000-30000 /PC
Price
D&T DTC-F2512  vacuum de-dust Sponge Rigid PU Foam Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Block Size: 2500*2500*1200(mm)
Cutting Wire: 0.8-2mm
Control System: Industrial Computer+Window XP
Software: D&T Profiler
Cutting Speed: 0~6m/min
Precision: ±0.5mm
Power: <8.5kw
Overall Weight: 2200kg
Overall Dimension: 6200*3800*2800mm
Highlight:

foam cutting equipment

,

polyurethane cutting machine

,

Rigid Sponge PU Foam Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-F2512
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 SETS PER MONTH
Product Description

CNC Automatic Horizontal Rigid Foam Sponge Cutting Machine with Vacuum De-dust







Type DTC-F1212 DTC-F2012 DTC-F2512 DTC-F6012
Max. Product Size 2500*1200*1000(mm) 2500*2000*1200(mm) 2500*2500*1200(mm) 6000*1250*2000(mm)
Cutting Wire 0.8-2mm
Control System Industrial Computer+Window XP
Software D&T Profiler
Cutting Speed 0~6m/min
Precision ±0.5mm
Power <5.5kw <6.5kw <8.5kw 10 kw
Vacuum De-dust Included Included Included Included
Overall Weight 1200kg 1500kg 2200kg 3100kg
Overall Dimension 6200*2400*2380mm 6200*3200*2800mm 6200*3800*2800mm 7200*2400*3300mm




Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
Cutting line: Abrasive steel wire

Specification:
1.It is advanced and fully automatic computerized foam contour cutting machine.
2.Can cut foam into any 2D complex shape.
3.Easy control
This foam cutting machine is most advanced and fully automatic computerized foam contour cutting machine, which can cut the various shape by computerized system.
1.This eva foam contour cutting machine is operated by computer and use CAD software to design the shape for the foam block. Make full use of the foam blocks and extremely save the raw material (foam blocks) cost.
2. Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.
3.Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting; whichenhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: D&T Profile software. Application:
CNC Fast Wire Contour Cutter is specifically developed for special heat insulation materials used in the construction industry, and it can be used in slicing and modeling processing for various types of high density foam.
It is the most ideal equipment in building, indoor decoration, advertising, toys model industry, aerospace industry model, furniture manufacturing and packaging areas. The control system is self-development, worry-free service, To make your most wanted tailor-made production equipment, is the goal we are after.
