D&T Series High Precision Heating Wire XPS Foam Cutting Machine For EPS Material

1set
MOQ
USD20000~40000/SET
Price
D&T Series High Precision Heating Wire XPS Foam Cutting Machine For EPS Material
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CNC XPS Foam Cutting Machine
Type: DTC-E2012
Product Size: 2000*1300*1000mm
Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm
Power: 13.5kw,380v,50hz
Weight: 1200kgs
Color: As Cliebts Requirement
Name: Eps Cutting Machine
Warranty: 1 Year
Highlight:

hotwire foam cutter

,

cnc hot wire foam cutter

,

High Precision XPS Foam Cutting Machine

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: D&T
Certification: CE
Model Number: DTC-E2012
Payment & Shipping Terms
Packaging Details: packed with pvc film into 20 container
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

High Precision Heating Wire XPS Foam Cutting Machine For EPS



styrofoam cutting machine/ eps block cutter/ electric hot wire eps cutter





1. Description Of 2D EPS cutting machine



Suit for: Polystyrene

Cutting line: Hot Wire



D&T series 2D EPS cutting machine is a special cutting machine, which is for complex

shapes of EPS products. THis kind of cutter has one or sevaral cutting lines for

different production request.



All the machines are driven by the remarkable D&T Profiler software, which speeds up

the design process and enables the operator to obtain the best yield from the foam block.





2. Main Description:





Usage of 3D hot wire cnc foam cutter:

to cut many kinds of two-dimensional and rotational parts,

which is mainly used to cut rotational molds with more curves

such as European components, T slot board, column, pellet, etc..





 3. Technical DaTa of  2D EPS cutting machine



TECHNICAL DATA
Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg

















































4. Company Information



Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,



polyurethane cutting machine, quilting machine and mattress spring coiling machine and foam relation assistant equipments.

Through the research of our engineers, our cutting machine had connected well



with the popularized CAD and achieved automation and high efficiency, high accuracy and



makes it easy to operate.We always put the customer on the first place and make utmost efforts



to satisfy you.We wholeheartedly look forward to developing economic, technical and trade



cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting



machine, eps cutting machine, quilting machine and mattress spring coiling machine and so on.

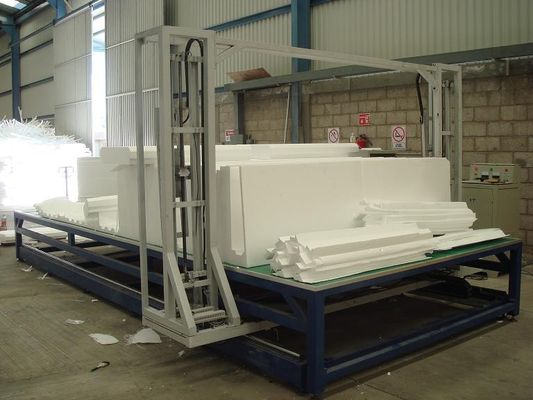

Sample for Cutting Product



D&T Series High Precision Heating Wire XPS Foam Cutting Machine For EPS Material 0  D&T Series High Precision Heating Wire XPS Foam Cutting Machine For EPS Material 1
