Industrial Auto EPS Block Moulding Machine With PLC Controller 6Min / Cycle

1 set
MOQ
USD15000-50000 / Set
Price
Industrial Auto EPS Block Moulding Machine With PLC Controller 6Min / Cycle
Features Gallery Product Description Request A Quote
Features
Specifications
Mould Cavity Size: 3080 *1240 * 630 Mm
Steam Entry: 6’’(DN150) Inch
Steam Consumption: 45- 65Kg/Cycle
Steam Pressure: 0.6-0.8 Mpa
Compressed Air Entry: DN 40
Compressed Air Pressure: 0.6-0.8 Mpa
Drainage Vacuum Drain: DN125
Drainage Down Steam Vent: DN150
Capacity (15g/l): 6 Min / Cycle
Connected Load/Power: 26.75
Overall Dimension(L*W*H): 7200 * 4500 * 3500 Mm
Weight: 9500 Kg
Highlight:

eps block molding machine

,

eps block making machine

,

EPS Block Moulding Machine 6 min / cycle

Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPB 3000 V
Payment & Shipping Terms
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Product Description

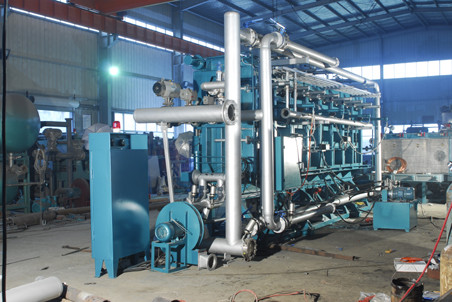

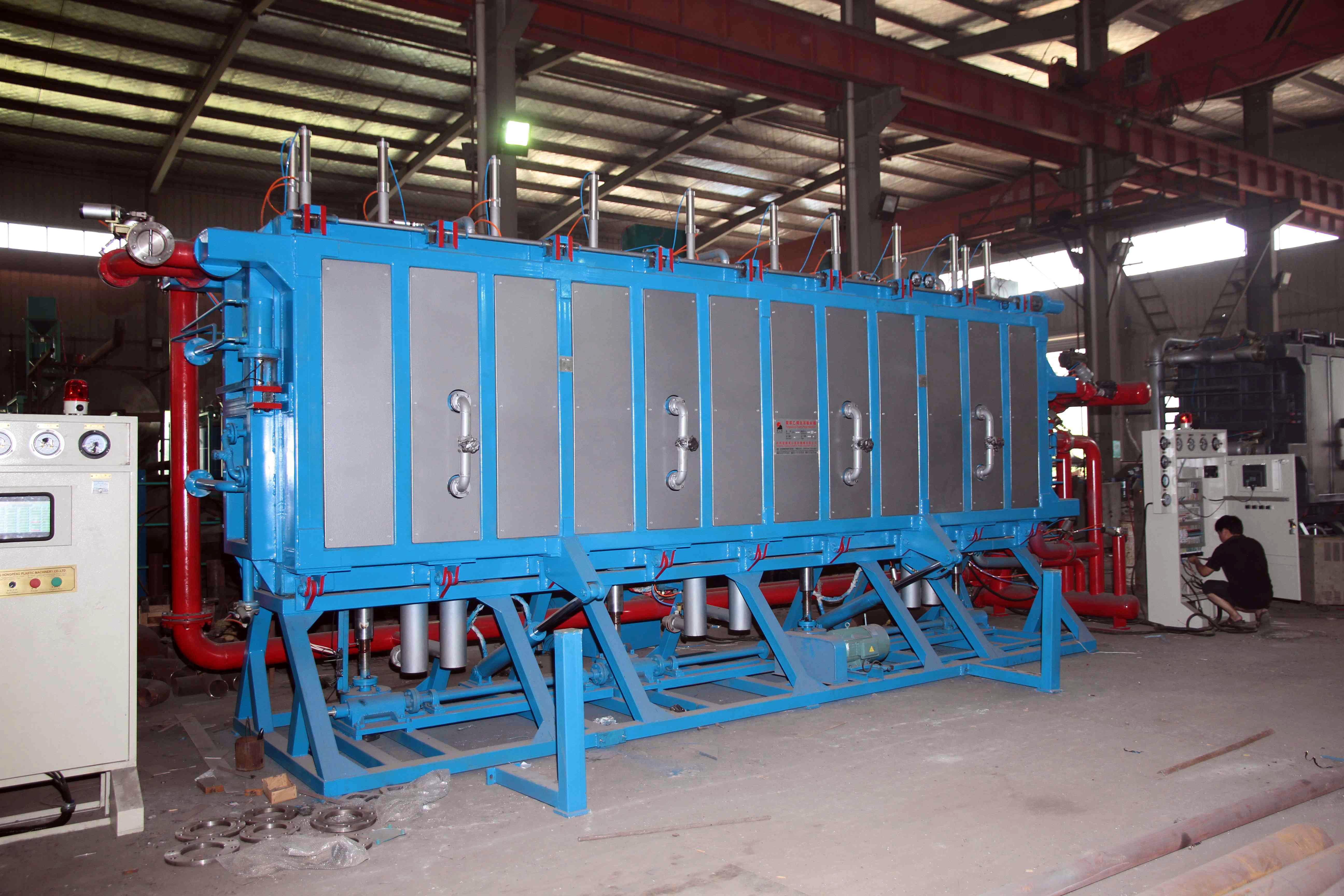

Industrial Auto EPS Block Moulding Machine With PLC Controller 6Min / Cycle



Main Feature:



1,  Strong Structure:
     Machine is made of high-strength square tubes and thick steel plates.
    Machine's all six panels are through heat treatment to release welding stress,

    so that panels cannot deform under high temperature.
    After heat treatment, all panels are processed by sand blasting treatment t remove rust,

    then first painting and final painting is done to keep machine anti-corrosion.
2, Steam System:
    Use three ball valves to control steam,

    saving 20% steam comparing to traditional one main valve system.
    Steaming is controlled by Timer and three Germen electrical gauge switches,

    with a safty valve to save from gauge malfuncton situation.
3, Control System:
    Machine with PLC and touch screen for easy operation.





Application:



1. The machine adopts PLC programmable controller and

    touch human-machine interface control ,

    automatic feeding,automatic control feeding progress,

    has formed a complete guarantee automatic cycle of production equipment.

2. The machine uses high quality square tube and

     welded steel and other groups,each Template

     through heat treatment and after assembly of small deformation,

     strength and durability.

3. The machine uses a unique heat penetration of

    advanced foreign EPS molding process,

     penetrating ability,good adhesion,good product quality,

     significant energy saving features.





Technology Data:



Item

Unit

SPB3000VS

Mould Cavity Dimension

mm

2050*1240*630

Block Size

mm

2000*1200*1000



Steam

Entry

Inch

DN50

Consumption

Kg/Cycle

45~65

Pressure

Mpa

0.6-0.8





Compressed Air

Entry

Inch

DN40

Consumption

m³/Cycle

1.5~2.5

Pressure

Mpa

0.6-0.8



Drainage

Vacuum Drain

Inch

DN125

Down Steam Vent

Inch

DN150

Air Cooling Vent

Inch

DN100



Vacuum Cooling Water

Entry

Inch

DN40

Consumption

Kg/Cycle

0.6

Pressure

Mpa

0.2-0.4

Capacity @15Kg/m³

Min/cycle

6

Connected Load/Power

Kw

26.75

Overall Dimension(L*W*H)

mm

7200*4500*3500

Weight

Kg

9500







































































































Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.
