CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry

1 set
MOQ
USD15000-50000/set
Price
CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Product Size: 3000*2200*1250(mm) Or As Request
Horizontal Cutting Blade: 2300*3*0.5mm
Vertical Cutting Blade: 2300*3*0.5mm
Software: Industrial Computer+ D&T Profiler
Computer System: Windows XP Or Win7
Cutting Speed: Max To 10m/min
Power: 9.5kw,380v,50hz
Blade Tension: Cylinder Tensioning 6 Bar
Weight: 2000kg
Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-SD2012
Payment & Shipping Terms
Packaging Details: packed with pvc film or as request
Delivery Time: 20 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry

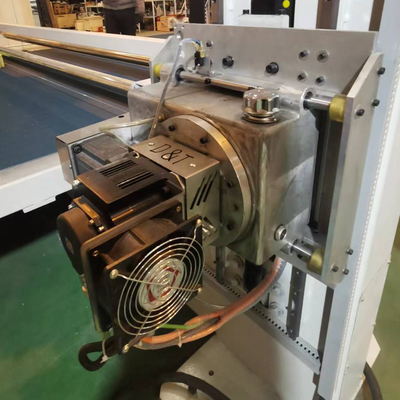

CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry 0



Product Description

Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.This CNC contour cutter is equipped with wireless remote control which makes the operation more humane convenient. Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting which enhance the working efficiency.Operating system is Windows XP or win7.Designing software is Auto CAD / Self-developed CNC operation Software. Cutting software is Foam cutting control system



Product Parameter



Type

DTC-SD2012
Max. Product Size   3000*2200*1250(mm)
Horizontal Cutting Blade   2300*3*0.5mm
Vertical Cutting Blade   2300*3*0.5mm
Control System   Industrial Computer+Windows XP with D&T Profiler
Cutting Speed   0~10m/min(adjustable)
Power   9.5 kw,380v,50hz
Blade Tension   Cylinder Tensioning 6 Bar
Overall Weight   2000kg
Overall Dimension   5800*3180*2400mm





·Main Features

1) Suit for sponge, flexible PU.
2) Cutting line: high speed, toothed blade.
3) The blade cuts with high speed vibrating, so that it work faster and product will be smoother.
4) No dust. Simple operation
5) Different working tables for choosing to meet your request.

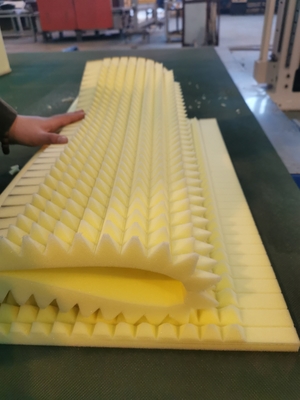

Cutting PAmaterial sample

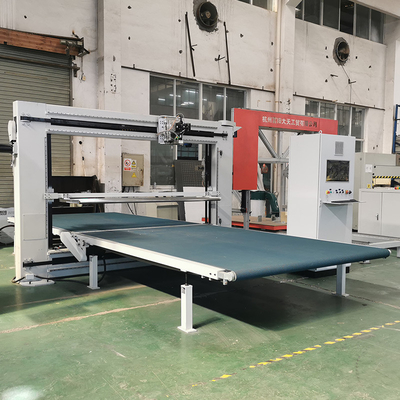

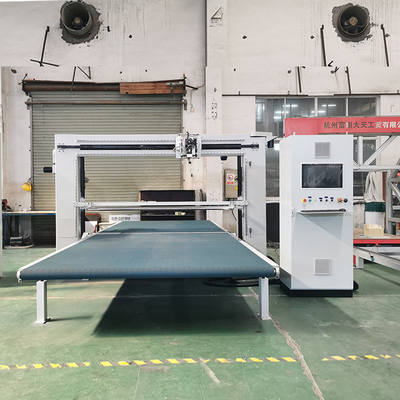

CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry 1CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry 2

Packing information

For the packing, there are a professional team to loading the cargo.And also, we have some long-term cooperation with the shipping agent who is rich experience of carrier.So do not worry, it can save money and safe for you.





Our Services



CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry 3



·After-sale Service:

Our engineers is avilable to oversea for coordinate installation, commissioning and training. Cost for flight and suitable accommodation

plus USD 60 per day each person will be charged additionally. Our machine with Lifetime maintenance free of charge. And Free training course at our plant. We support 24 hours on line service each day to make you get technical direction in time.   Our Machine has been adjusted and test before delivery.



·Warranty:

12 months limited warranty starting from date of delivery excluding wear parts.

shipping cost for parts to be replaced during warranty period have to be borned by the customers.



·Terms of Papent

30% advance payment by T/T upon signing the contract

70% covered by Confirmed Irrevocable Sight L/C



FAQ

1) Q:Are you a factory ?

     A:Yes,We are a manufacturer and doing the foam machines since 2006.

2) Q: Which drawing software do you use?

     A:Auto CAD.

3) Q: Whether your engineer can come to our factory for installation of the machine?

     A: Yes, sure.

4) Q: Can you import DXF files from another source?

     A:yes. Any DXF files is acceptable.

5) Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?

     A : Yes, include it.

6) Q: What countries have you sold to?

     A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.

7) Q: What safety controls are on the machine?

     A:There are urgence bottoms on the control box and machine for accident to stop the mahicne.There are two fence around the cutting frame, the machine will stop when you open the fence.



                            CNC Oscillating Dual-blade Foam Cutting Machine for Flexible Sponge Cutting D&T Industry 4
