Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | China |
|---|---|
| Brand Name: | D&T |
| Certification: | CE |
| Model Number: | DTLG-2150 |
| Minimum Order Quantity: | 1set |
| Price: | USD30000-80000/set |
| Packaging Details: | packaged according to the requirements of customers |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 20 sets per month |
| Condition: | New | After-Sales Service Provided: | Engineers Available To Service Machinery Oversea |
|---|---|---|---|
| Color: | Green ( Can Be Customized) | Max. Product Width: | 2150mm |
| Max. Product Height: | 1200mm | Cutting Thickness: | 2~60mm |
| Cutting Speed: | 0~60m/min | Blade Length: | 8720mm |
| Total Power: | 8.84kw 380V 50HZ | Overall Weight: | 1500kg |
| Overall Dimension: | L3750*W2640*H2350mm | ||
| Highlight: | Vertical Foam Cutter,vertical foam cutting machine,Long Sheet Sponge Cutter Machine |
||

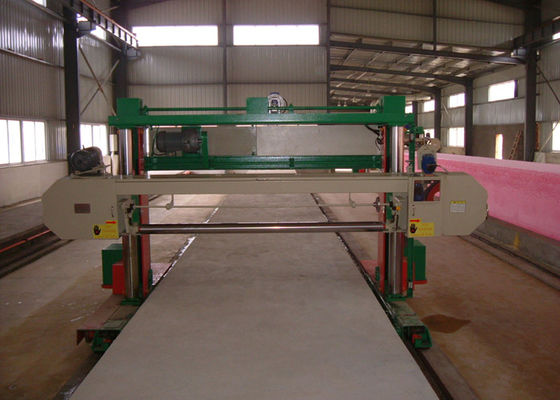

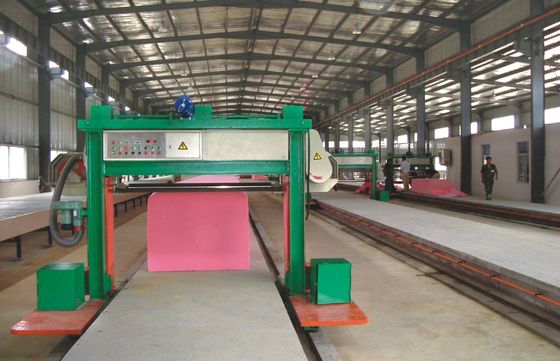

Rail Type Foam Block Long Sheet Sponge Cutter Machine 1500KG 8.84KW
Specification:
| Model |
DTLG-2150 |
Cutting Thickness |
2~60mm |
|
Cutting Foam Width |
W2150mm |
Cutting Speed |
0~60m/min |
|
Cutting Foam Height |
1200mm |
Blade Length |
8720mm |
|
Total Power |
8.84kw 380V 50HZ |
Overall Weight |
1500kg |
Application:
This machine is mostly for foam block long sheet slicing.
Advantage:
1. It adopts advanced imported inverter timing control techniques, Its running is reposeful.
2. The cutting is accurate, the production efficiency is high, it is assorted equipment of foam foaming machine. (This machine chooses the automatic-accept equipment)
Software question:
1. Q: what kind of CAD software the machine uses?
A: For the CAD software ,our machine uses 2004 or 2006(you prefer )
2. Q: about the CAD software, what's its name?
A: The name is Auto CAD Software
3. Q: where do you sell your machines mostly? which countries?
A: our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types
4. Q: the operating system which you use is windows, right?
what kind of windows? XP? or Windows 7?
A: Yes ,it is Windows XP.
When operated,Our machine doesn't need to use network
We usually use XP for its stability.Also windows 7 is OK.
5. Q: is your software licensed or it's illegal? ("cracked")
A: our own profiler cutting software is develop by ourselves. It is origina
Q: but the auto-cad and the windows? the auto-cad and the windows are original too
I am asking this question because our company use only licensed software
A: windows is licensed; AutoCAD is testing type.
our machines do not include the licensed AutoCAD
if you have any drawing software, you can make the DXF file.
6. Q: the differences between our Fast Wire CNC Cutting machine and Oscillating Blade CNC Blade
Cutting Machine.
A: First,Fast wire cutters use high -speed abrasive wire
and Oscillating Blade cutters use high-speed ,
toothed blade.
Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.
and for soft foam material,
the better cutter is Oscillating Blade CNC cutter.
Thirdly,fast wire CNC cutters also can cut soft material.
but the dust from the soft material needs an
extra dust pelletizing system and the soft material also is not good for the fast wire cutter itself.
7. Q: For reputation and website:
A: for the reputation ,we are 8 years golden supplier on Alibaba.
And our engineers have researched our machine more and improved it better and better.
We promise our machine will be as good as we told.
Even we keep 10% for the guarantee until to
install the machine well and the client satisfy with our machine.
Finished Product:
