Styrofoam Eps Foam Making Machine Polystyrene Expansion Beads Making Machine

China Styrofoam Eps Foam Making Machine Polystyrene Expansion Beads Making Machine supplier
Styrofoam Eps Foam Making Machine Polystyrene Expansion Beads Making Machine supplier Styrofoam Eps Foam Making Machine Polystyrene Expansion Beads Making Machine supplier

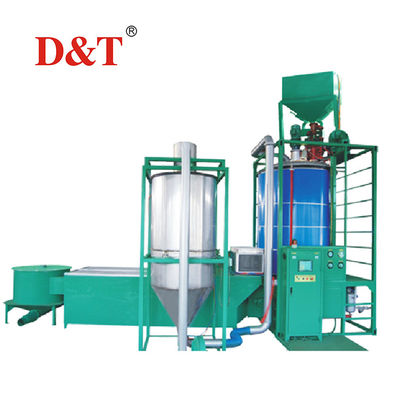

Large Image :  Styrofoam Eps Foam Making Machine Polystyrene Expansion Beads Making Machine

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: FDS1100A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 35000-13000 /PC
Packaging Details: WOODEN BOX
Delivery Time: 30 worldays
Payment Terms: L/C, T/T, Western Union,paypal
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Material Conveying Line: 6"(DN150)
Power: 19kw Expansion Density: 10~40MMM
Overall Dimension: 2900*4500*5900 Weight: 3200kg




Product Description

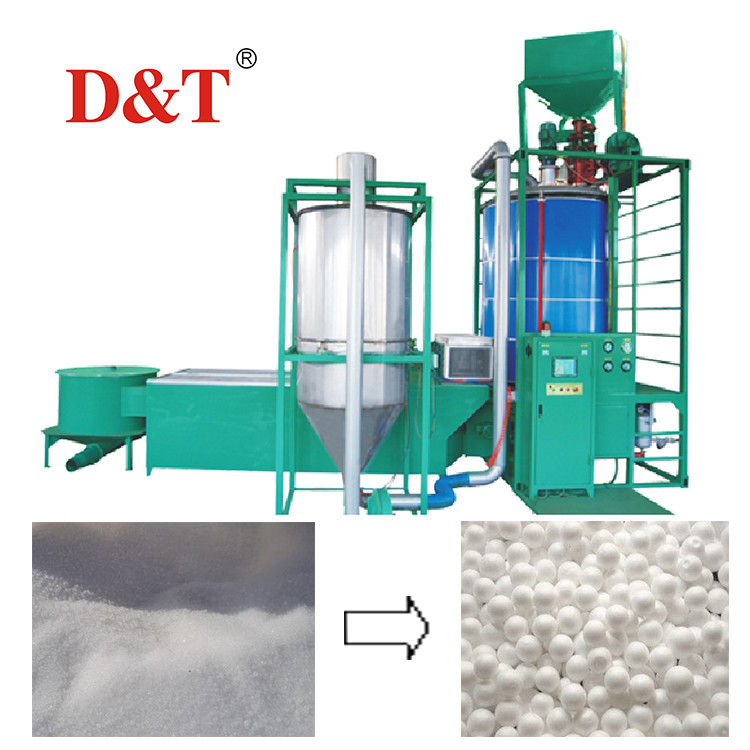

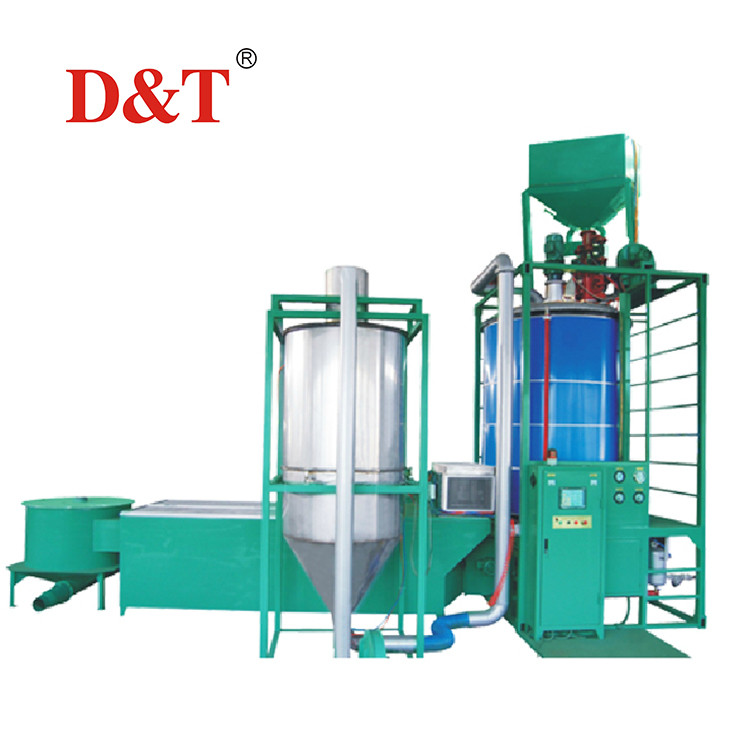

1.Picture Of polystyrene expansion beads making machine


2.Description Of polystyrene expansion beads making machine

Item Unit FDS930A FDS1100A
Expansion Chamber Diameter mm DN900 DN1100
Volume m3 0.9 1.4
Usable Volume m3 0.75 1
Stzam Entry Inch 2"(DN50) 2"(DN50)
Consumption Kg/cycle 4~6 6~8
Pressure Mpa 0.6~0.8 0.6~0.8
Compressed Air Entry Inch 2"(DN50) 2"(DN50)
Consumption m3/cycle 0.5~0.7 0.9~1.1
Pressure Mpa 0.5~0.8 0.5~0.8
Drainge upper drain port Inch 4"(DN100) 4"(DN100)
The drainage outlet Inch 4"(DN100) 4"(DN100)
Discharge port Inch 3"(DN80) 3"(DN80)
material conveying line Inch 6"(DN150) 6"(DN150)
Capacity   10g/L 230 320
15g/L 320 550
20g/L 450 750
30g/L 670 850
Connected load/power kw 17 19
Expanded Density m3 10~50 10~40
Density Tolerance % ±2.5% ±3%
Overall dimensions(L*W*H) mm 2700*4200*5900 2900*4500*5900
Weight kg 2700 3200

3.Application Of Product

.jpg

4.More Products For You To Choose



5.Certifications Of styrofoam polystyrene expansion beads making machine eps making machinery





Packaging & Shipping



6 .Packing & Shipping

We have professional person for packing and we have longterm cooperation with our own

cargo agent.They could help us to send the cargo to the place all over the world with safety.For

this point,dear sir,you could  believe us.

7.Pictures of Packing & Shipping

packing & shipping.jpg

Our Services



8.Our Services

1)After-sale Service:
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 100 per day each person will be charged additionally.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)24 hours on line service each day; free technical support.
5)Machine has been adjusted and test before delivery.
6)Free to design the Layout of customers' plant by our technician team.





1.Company Information

Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,

polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assistant

equipments. Eps Pre-expander machine.Through the research of our engineers, our cutting machine

had connected well with the popularized CAD and achieved automation and high efficiency, high

accuracy and makes iteasy to operate.We always put the customer on the first place and make utmost

efforts to satisfy you.We wholeheartedly look forward to developing economic, technical and trade

cooperation with you.

2.Our Company View



3.Our Team



4.Our Exhibitions

sample display.jpg

5.Our Customers



6. Welcome to Contact Us



FAQ



 FAQ

  1.Q:Are you manufacturer ?

       A:Yes,We are manufacturer

   2.Q: Which software do you use?

      A: Dear sir,we use the CAD software

   3.Q: Which way do you repair your machine

       A:Our engineers is avilable to repair oversea

   4.Q:Where can I find your cutting vidio?

       A :Dear sir,you could find our vidio at YOUTUBE

   5.Q:What is your website?

       A :Dear sir,our website is www.dtfirm.com

Welcom new and old customers come and visit us!please feel free to contact us for more information!
