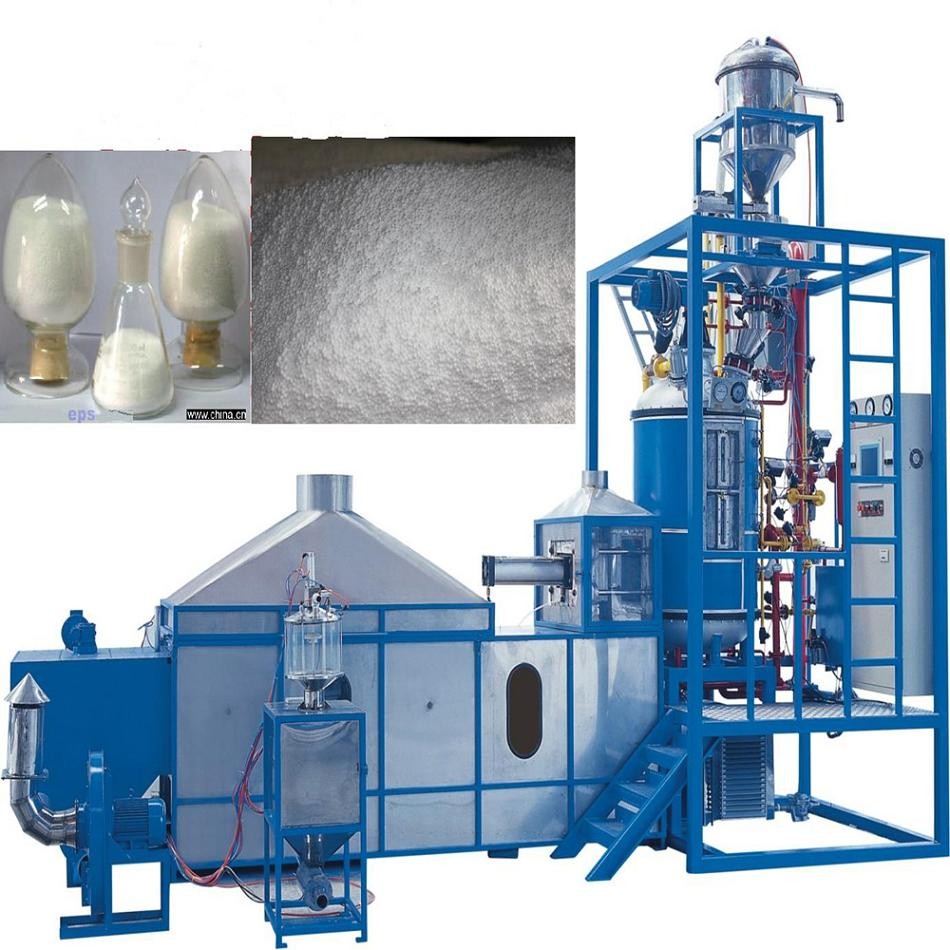

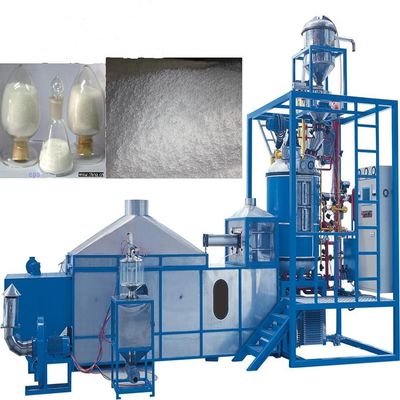

Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW

China Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW supplier
Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW supplier Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW supplier Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW supplier

Large Image :  Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPY-900 II

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000/ Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Expansion Chamber Diameter: Dn900 Expansion Chamber: 1.3m³
Expansion Chamber Volume: 0.8 M³ Steam Entry: 1’’(DN25) Inch
Steam Consumption: 200 - 250 Kg/Cycle Steam: 0.6-0.8 Mpa
Compressed Air Entry: 2’’(DN20) Compressed Air: 0.5-0.8 Mpa
Drainage Upper Drain Port: DN20 Drainage Lower Drain Port: DN20
Capacity (15g/l): 200 Capacity (20 G/l): 250
Capacity (25 G/l): 300 Capacity (30g/l): 350
Connected Load/Power: 10 Kw Expaned Density: 12 - 30 G/l / 7- 12 G/l
Density Tolerance: ±3% Overall Dimension(L*W*H): 4700*2900*3200 Mm
Weight: 1600 Kg





Industrial Continuous EPS Pre-expander Machine Auto Low Cost , 10 KW





Adopt highprecision imported pneumatic control valve

so that temperature can be controlled at ±1%,
EPS grains are at same level with low water content.





Application:



The fat barrel,outside all stainless steel compartment has insulation measures,reliable performance,



reasonable structure,beautiful,stable quality,high production efficiency ,increase 2-3times than the average

 machine,low energy consumption 25%.

The machine feed system including a feeding device and the secondary device, a feeding device by

adjusting the feed rate of transmission in order to ensure a stable feed.

EPS beads through the material,the foam into the fluidized bed dryer(customer optional)and then into the

 aging silo through the fan delivery device,complete raw foaming process.Process cycle according to the

second foam.

The machine produced more uniform density can foam density 7-35kg/m³.

Let the steam valve,the user can choose according to need.





Technical Data:



Item

Unit

SPY-900II



Expansion Chamber

Diameter

mm

Dn900

Volume

1.3

Usable Volume

0.8



Steam

Entry

Inch

DN25

Consumption

Kg/Cycle

200-250

Pressure

Mpa

0.6-0.8



Compressed Air

Entry

Inch

DN20

Pressure

Mpa

0.5-0.8

   Drainage

Entry

Inch

DN20

Material Conveying Line

Inch

DN100





Capacity



15g/l

200kg/h

20/g

250kg/h

25g/l

300kg/h

30g/l

350kg/h

Connected Load/Power

Kw

10

Expaned Density

       First Expansion

12-30g/l

Secondary Expansion

7-12g/l

Density Tolerance

%

±2.8%

Overall Dimension(L*W*H)

mm

4700*2900*3200

Weight

Kg

1600





















































Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.
