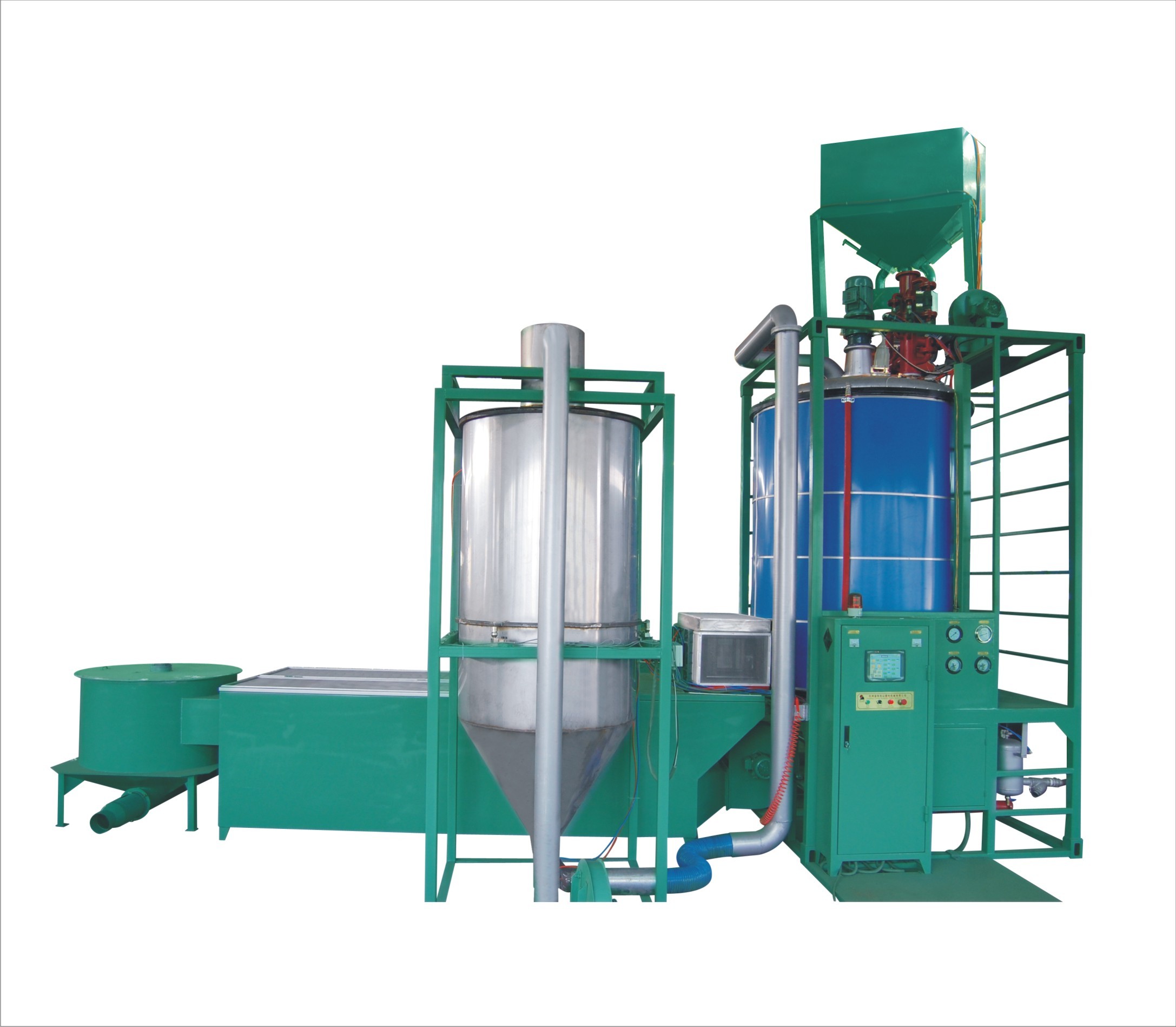

Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³

China Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³ supplier
Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³ supplier Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³ supplier

Large Image :  Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: FDS1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Expansion Chamber Diameter: Dn1600 Expansion Chamber: 4.8 M³
Expansion Chamber Volume: 3.5 M³ Steam Entry: 2’’(DN50) Inch
Steam Consumption: 11-14 Kg/Cycle Steam Pressure: 0.4-0.8 Mpa
Compressed Air Entry: 2’’(DN50) Compressed Air Pressure: 0.5-0.8 Mpa
Drainage Upper Drain Port: 6’’(DN100) Drainage Lower Drain Port: 4’’(DN80)
Capacity (4g/l): 360 Capacity (7g/l): 480
Capacity (15g/l): 900 Capacity (20g/l): 1100
Connected Load/Power: 24.5 Kw Expaned Density: 10-40 M³
Density Tolerance: ±3% Overall Dimension(L*W*H): 9000*3500*5500 Mm
Weight: 4800 Kg







Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³




- PLC adopts Japan OMRON
- touch screen adopts Taiwan Delta
- main spare parts are products from famous factories.



Application:



1. The machine adopts PLC programmable controlloer and touch screen control,

    automatic feeding,automatic electronic measurement,

    automatic contorl of temperature and pressure,dry barrel drums,etc.,

    have made the material once completed,

    to ensure that the machine automatically cycle of production.
2. The use of electronic weighing systems,photoeletric material level control system,

    proper grasp bulk density foam material,

   so that a uniform density foam beads

   after each error is less than 3% or less.
3. Barrel body temperature and vapor pressure,the use of advanced

   high-precision Japanese pilt valve control,

   ensure that the pressure relief valve outlet is always constant,

   ensure that the temperature inside the tank advance machine control

   within ±1% °c of,so as to ensure the consistency of raw EPS issued

   prevent EPS material because the temperature control is not good agglomeration.

4. Automatic vacuum feeding device,electronic weighing devices,

   combined with level switch to achieve the automatic feeding,

   improved production efficiency,reduce labor inensity.

5.  The barrel constant use of closed foam,

     high thermal efficiency,

     save steam energy than the continuous advance machines save

     more than 50%
    The aircraft is equipped with a high quality enclosed hot air drying system,

    good raw material in the barrel body hair dry,without going through

    along curing dry bed.Weighing system on top of the barrel,

   so the small footprint and compact machine structure.
6. The machine uses electrical,pheumatic components,valves,etc.

    are well-known brand products,

    thus ensuring the operation of the machine stability,

    reliability and long service life.
   Automatic discharge barrel using compressed air to blow the material ,

   increase the feed rate.
7. The computer has a memory function,

    can often use the EPS raw material manufacture brands,specifications,

    foaming process,all parameters can be recorded in the computer.

    When you need to use the manufacturers of raw materials used in the past,

    you just press a computer touch screen can quickly go back to the original process.
8. The machine is suitable for high altitude areas of foam production,

    play a pressure foaming machines superiority

    (In the same environment Continuous Pre machine productivity is very low.)




Technical Data:





Item

Unit

FDS1660


Expansion Chamber

Diameter

mm

Dn1660

Volume

4.8

Usable Volume

3.5


Steam

Entry

Inch

2’’(DN50)

Consumption

Kg/Cycle

11-14

Pressure

Mpa

0.4-0.8


Compressed Air

Entry

Inch

2’’(DN50)

Consumption

m³/Cycle

0.7-1.1

Pressure

Mpa

0.5-0.8


Drainage

Upper Drain Port

Inch

6’’(DN150)

Lower Drain Port

Inch

5”(DN125)

Lower Drain Port

Inch

4’’(DN100)

Material Conveying Line

Inch

8’’(DN200)



Capacity




4g/l

360

7/g

480

9g/l

560

15g/l

900

20g/l

1100

Connected Load/Power

Kw

24.5

Expaned Density

10-40

Density Tolerance

%

±2.8%

Overall Dimension(L*W*H)

mm

9000*3500*5500

Weight

Kg

4800



























































Terms:

Validity:                       60 days
Terms of Payment:     30% advance payment by T/T upon signing of sales contract
                                  70% covered by confirmed irrevocable L/C by sight or T/T before shipping.
Delivery:                     60 days after receipt of advance payment.
Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                          commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker                                                                fee will be covered by Buyer,

Warranty:                        12 months limited warranty
                                       starting from date of arrival excluding wear parts.
                                       Shipping cost for parts to be replaced during wa

rranty

                                       period have to be borne by the customer.

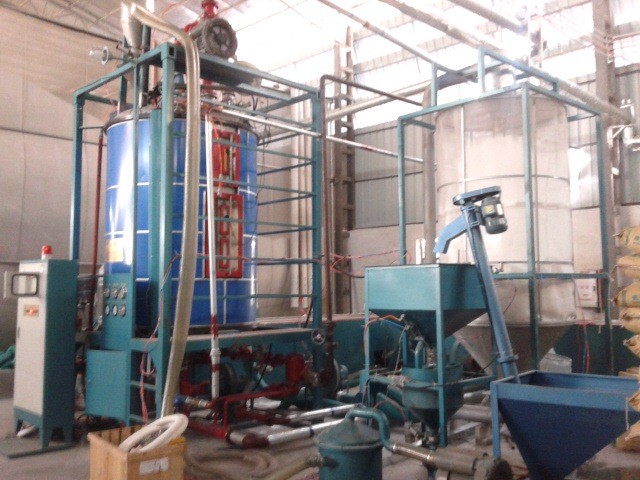

Automatic Vacuum EPS Batch Pre Expander With Pilot Valve Control 3.5 m³
