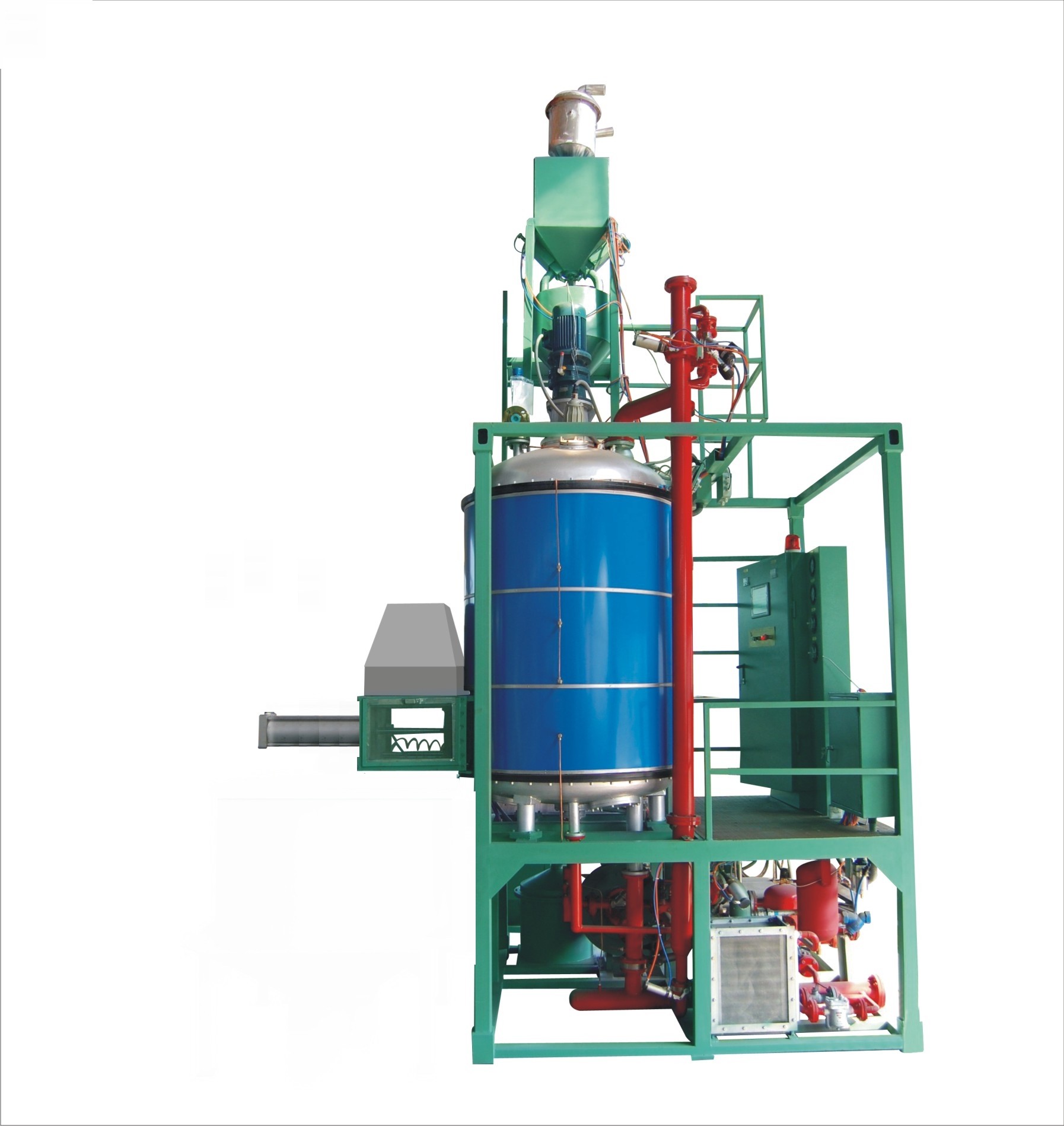

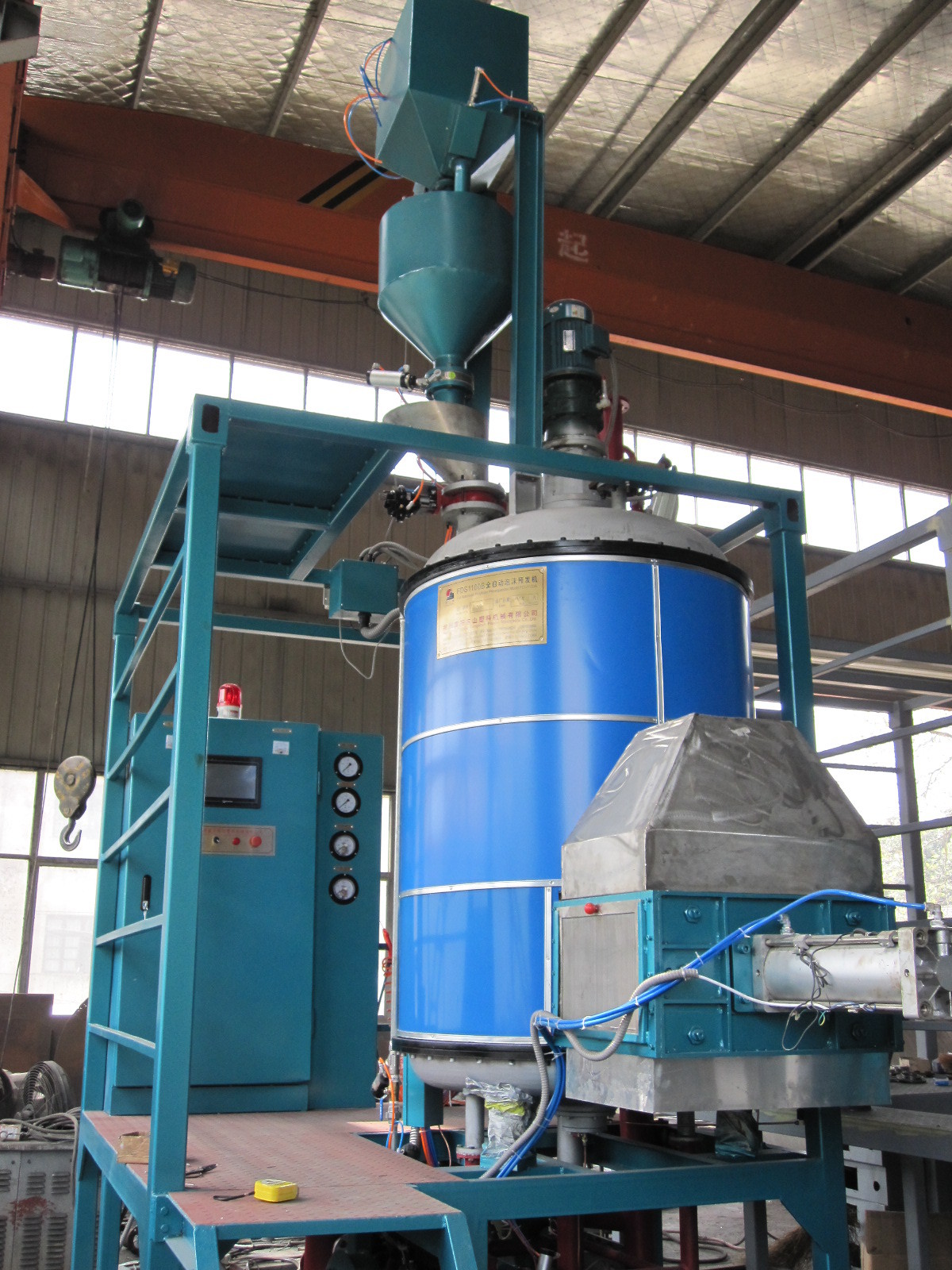

High Speed Automatic Vaccum EPS Pre-expander With PLC Control System

China High Speed Automatic Vaccum EPS Pre-expander With PLC Control System supplier
High Speed Automatic Vaccum EPS Pre-expander With PLC Control System supplier High Speed Automatic Vaccum EPS Pre-expander With PLC Control System supplier High Speed Automatic Vaccum EPS Pre-expander With PLC Control System supplier

Large Image :  High Speed Automatic Vaccum EPS Pre-expander With PLC Control System

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: FDS1100B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets / Month
Contact Now
Detailed Product Description
Chamber Voume: 1.4m3 Steam Consumption: 6-8kg/cycle
Steam Pressure: 0.6-0.8Mpa Compressed Air Consumption: 0.9-1.1m3/cycle
Compressed Air Pressure: 0.5-0.8Mpa Capacity: 320kg(10g/l)
Loaded Power: 17.5kw Expanded Density: 10-40m3

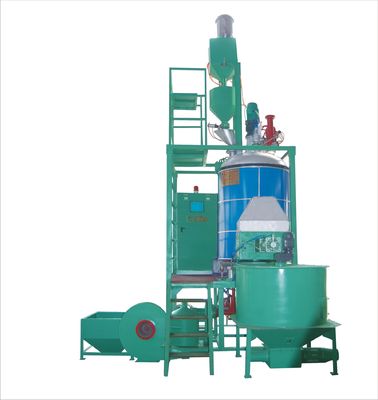

High Speed Automatic Vaccum EPS Pre-expander With PLC Control System







To make eps raw material (expanded polystyrene)

become big and light foam beads through steam heating.

With PLC English touch screen to realize full automatic production

for feeding, heating to eject foam beads.



With PLC Control system, Fluid bed drier, screw conveyor,

have double –expansion device.

Steaming is controlled by timer and

photo-sensor material level filling are controlled

by weighing sensor and timer.



Application:


1. The machine adopts PLC programmable controlloer and touch screen control,automatic feeding,

    automatic electronic measurement,automatic contorl of temperature and pressure,

    dry barrel drums,etc.,have made the material once completed,to ensure that the machine

    automatically cycle of production.
2. The use of electronic weighing systems,photoeletric material level control system,

     proper grasp bulk density foam material,so that a uniform density foam beads

    after each error is less than 3% or less.
3. Barrel body temperature and vapor pressure,the use of advanced high-precision Japanese

    pilt valve control,ensure that the pressure relief valve outlet is always constant,

    ensure that the temperature inside the tank advance machine control within ±1% °c of,

    so as to ensure the consistency of raw EPS issued prevent EPS material because

    the temperature control is not good agglomeration.

4.  Automatic vacuum feeding device,electronic weighing devices,

     combined with level switch to achieve the automatic feeding,

    improved production efficiency,reduce labor inensity.

5. The barrel constant use of closed foam,high thermal efficiency,

    save steam energy than the continuous advance machines save more than 50%
    The aircraft is equipped with a high quality enclosed hot air drying system,

    good raw material in the barrel body hair dry,without going through along curing dry bed.

    Weighing system on top of the barrel,so the small footprint and compact machine structure.
6. The machine uses electrical,pheumatic components,valves,etc.are well-known brand products,

    thus ensuring the operation of the machine stability,reliability and long service life.
    Automatic discharge barrel using compressed air to blow the material ,increase the feed rate.
7. The computer has a memory function,can often use the EPS raw material manufacture brands,

    specifications,foaming process,all parameters can be recorded in the computer.

    When you need to use the manufacturers of raw materials used in the past,

    you just press a computer touch screen can quickly go back to the original process.
8. The machine is suitable for high altitude areas of foam production,

    play a pressure foaming machines superiority.

    (In the same environment Continuous Pre machine productivity is very low.)



Technical Data:



Item

Unit

FDS1100B


Expansion Chamber

Diameter

mm

Dn1100

Volume

1.4

Usable Volume

1.0


Steam

Entry

Inch

2’’(DN50)

Consumption

Kg/Cycle

6-8

Pressure

Mpa

0.6-0.8


Compressed Air

Entry

Inch

2’’(DN50)

Consumption

m³/Cycle

0.9-1.1

Pressure

Mpa

0.5-0.8


Drainage

Upper Drain Port

Inch

4’’(DN100)

Lower Drain Port

Inch

4”(DN100)

Lower Drain Port

Inch

3’’(DN80)

Material Conveying Line

Inch

6’’(DN150)


Capacity




10g/l

320

15/g

550

20g/l

750

30g/l

850

Connected Load/Power

Kw

17.5

Expaned Density

10-40

Density Tolerance

%

±3%

Overall Dimension(L*W*H)

mm

2900*4500*5900

Weight

Kg

3200


























































Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.







High Speed Automatic Vaccum EPS Pre-expander With PLC Control System
