PLC Programmable Controlling Bath EPS Pre-expander Machine High Tolerance

China PLC Programmable Controlling Bath EPS Pre-expander Machine High Tolerance supplier

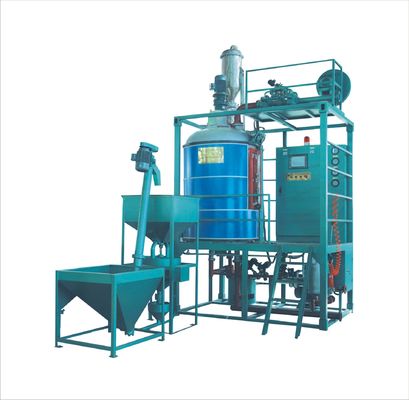

Large Image :  PLC Programmable Controlling Bath EPS Pre-expander Machine High Tolerance

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: FDS930A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Expansion Chamber Diameter: Dn1100 Expansion Chamber: 1.0 M³
Expansion Chamber Volume: 1.4 M³ Steam Entry: 2’’(DN50) Inch
Steam Consumption: 6-8 Kg/Cycle Steam: 0.6-0.8 Mpa
Compressed Air Entry: 2’’(DN50) Compressed Air: 0.5-0.8 Mpa
Drainage Upper Drain Port: 4’’(DN100) Drainage Lower Drain Port: 3’’(DN80)
Capacity (10g/l): 320 Capacity (15g/l): 550
Capacity (20g/l): 750 Capacity (30g/l): 850
Connected Load/Power: 17.5 Kw Expaned Density: 10-40 M³
Density Tolerance: ±3% Overall Dimension(L*W*H): 2900*4500*5900 Mm
Weight: 3200 Kg

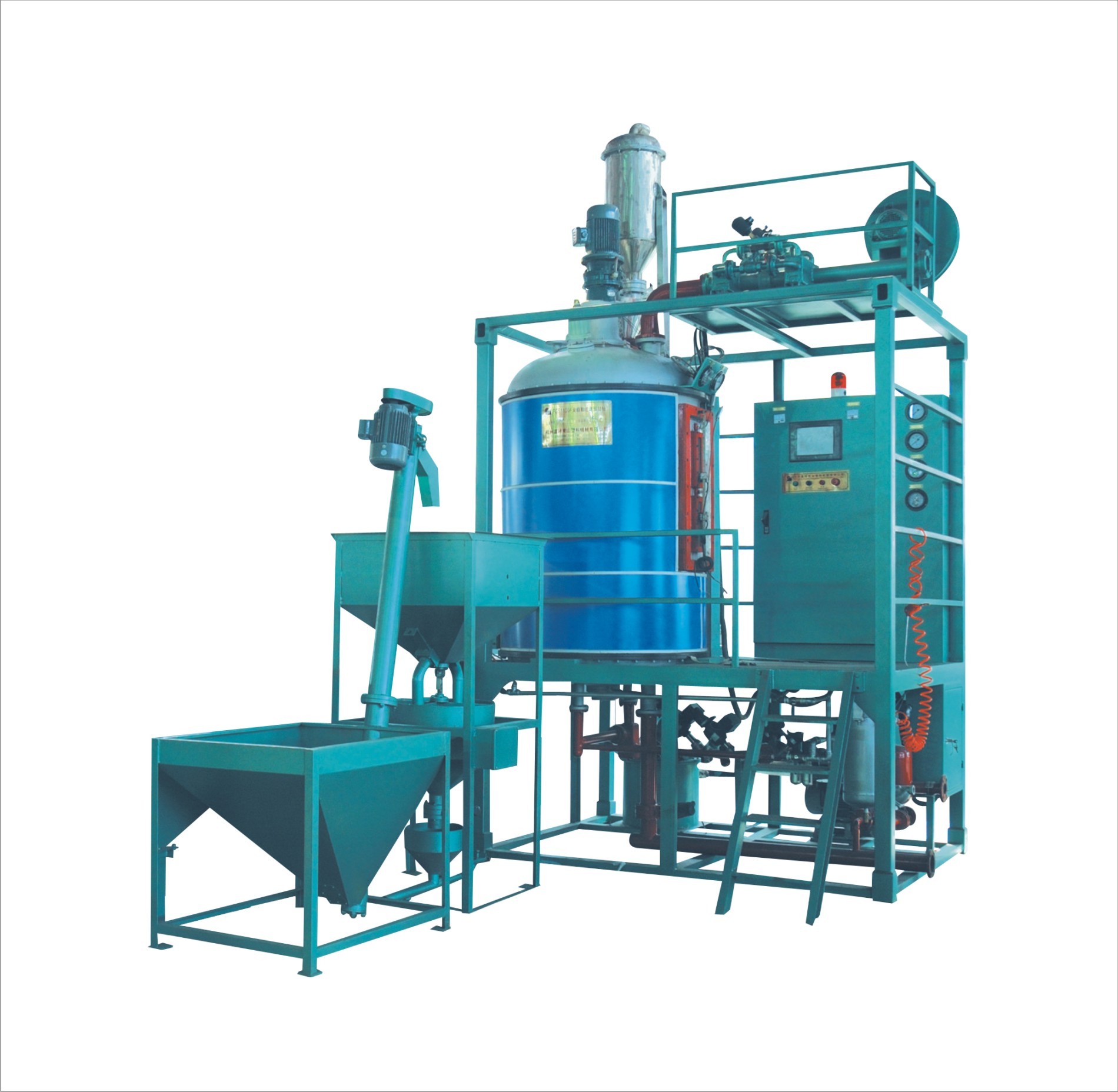

PLC Programmable Controlling Bath EPS Pre-expander Machine High Tolerance




Main Feature:





The programmable control with color touch screen control,

automatic feeding,

automatic control of temperature and pressure barrel,

automatic sensor testing material;


Application:

1. The machine adopts PLC programmable controlloer and touch screen control,

    automatic feeding,automatic electronic measurement,automatic contorl of temperature and

    pressure,dry barrel drums,etc.,have made the material once completed,

    to ensure that the machine automatically cycle of production.
2. The use of electronic weighing systems,photoeletric material level control system,

    proper grasp bulk density foam material,so that a uniform density foam beads after each error

    is less than 3% or less.
3. Barrel body temperature and vapor pressure,the use of advanced high-precision

    Japanese pilt valve control,ensure that the pressure relief valve outlet is always constant,

    ensure that the temperature inside the tank advance machine control within ±1% °c of,

    so as to ensure the consistency of raw EPS issued prevent EPS material

    because the temperature control is not good agglomeration.

4. Automatic vacuum feeding device,electronic weighing devices,combined with level switch

    to achieve the automatic feeding,improved production efficiency,reduce labor inensity.

5. The barrel constant use of closed foam,high thermal efficiency,save steam energy

    than the continuous advance machines save more than 50%
    The aircraft is equipped with a high quality enclosed hot air drying system,

    good raw material in the barrel body hair dry,without going through along

    curing dry bed.Weighing system on top of the barrel,so the small footprint

    and compact machine structure.
6. The machine uses electrical,pheumatic components,valves,etc.
are well-known

    brand products,thus ensuring the operation of the machine stability,reliability and

    long service life.Automatic discharge barrel using compressed air to blow the material ,

    increase the feed rate.
7. The computer has a memory function,can often use the EPS raw material

    manufacture brands,specifications,foaming process,all parameters

    can be recorded in the computer.When you need to use the manufacturers

    of raw materials used in the past,you just press a computer touch screen can

    quickly go back to the original process.
8. The machine is suitable for high altitude areas of foam production,

    play a pressure foaming machines superiority

    (In the same environment Continuous Pre machine productivity is very low.)


Technical Data:



Item

Unit

FDS1100A


Expansion Chamber

Diameter

mm

Dn1100

Volume

1.4

Usable Volume

1.0


Steam

Entry

Inch

2’’(DN50)

Consumption

Kg/Cycle

6-8

Pressure

Mpa

0.6-0.8


Compressed Air

Entry

Inch

2’’(DN50)

Consumption

m³/Cycle

0.9-1.1

Pressure

Mpa

0.5-0.8


Drainage

Upper Drain Port

Inch

4’’(DN100)

Lower Drain Port

Inch

4”(DN100)

Lower Drain Port

Inch

3’’(DN80)

Material Conveying Line

Inch

6’’(DN150)


Capacity




10g/l

320

15/g

550

20g/l

750

30g/l

850

Connected Load/Power

Kw

19

Expaned Density

10-40

Density Tolerance

%

±2.8%

Overall Dimension(L*W*H)

mm

2900*4500*5900

Weight

Kg

3200





























































Terms:





Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.
