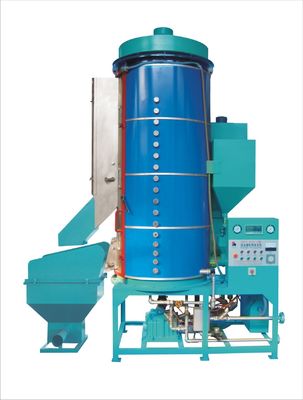

High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding

China High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding supplier
High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding supplier High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding supplier

Large Image :  High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPY-900

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Expansion Chamber Diameter: Dn900 Expansion Chamber: 1.2 M³
Expansion Chamber Volume: 0.8 M³ Steam Entry: 1’’(DN25) Inch
Steam Consumption: 200 - 250 Kg/Cycle Steam: 0.6-0.8 Mpa
Compressed Air Entry: 2’’(DN20) Compressed Air: 0.5-0.8 Mpa
Drainage Upper Drain Port: DN20 Drainage Lower Drain Port: DN20
Capacity (15g/l): 250 Capacity (20 G/l): 300
Capacity (25 G/l): 350 Capacity (30g/l): 400
Connected Load/Power: 10 Kw Expaned Density: 12 - 30 G/l / 7- 12 G/l
Density Tolerance: ±3% Overall Dimension(L*W*H): 4700*2900*3200 Mm
Weight: 1600 Kg





High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding





Application:





  1. The fat barrel,outside all stainless steel compartment has   insulation measures,reliable performance,reasonable structure, beautiful,stable quality,high production efficiency ,increase 2-3times than the average machine,
  2. low energy consumption 25%.
  3. The machine feed system including a feeding device and   the secondary device, a feeding device
  4.  by adjusting the feed rate of transmission in order to ensure a stable feed.
  5.  EPS beads through the material,the foam into   the fluidized bed dryer(customer optional) and then into the aging silo through the fan delivery device, complete raw foaming process.Process cycle according to the second foam.
  6. The machine produced more uniform density can foam density 7-35kg/m³.
  7.  Let the steam valve,the user can choose according to need.





Technical Data:





Item

Unit

SPY-900II



Expansion Chamber

Diameter

mm

Dn900

Volume

1.3

Usable Volume

0.8



Steam

Entry

Inch

DN25

Consumption

Kg/Cycle

200-250

Pressure

Mpa

0.6-0.8



Compressed Air

Entry

Inch

DN20

Pressure

Mpa

0.5-0.8

   Drainage

Entry

Inch

DN20

Material Conveying Line

Inch

DN100





Capacity



15g/l

200kg/h

20/g

250kg/h

25g/l

300kg/h

30g/l

350kg/h

Connected Load/Power

Kw

10

Expaned Density

       First Expansion

12-30g/l

Secondary Expansion

7-12g/l

Density Tolerance

%

±2.8%

Overall Dimension(L*W*H)

mm

4700*2900*3200

Weight

Kg

1600























































Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                        70% covered by confirmed irrevocable L/C by sight

                                        or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:  TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.

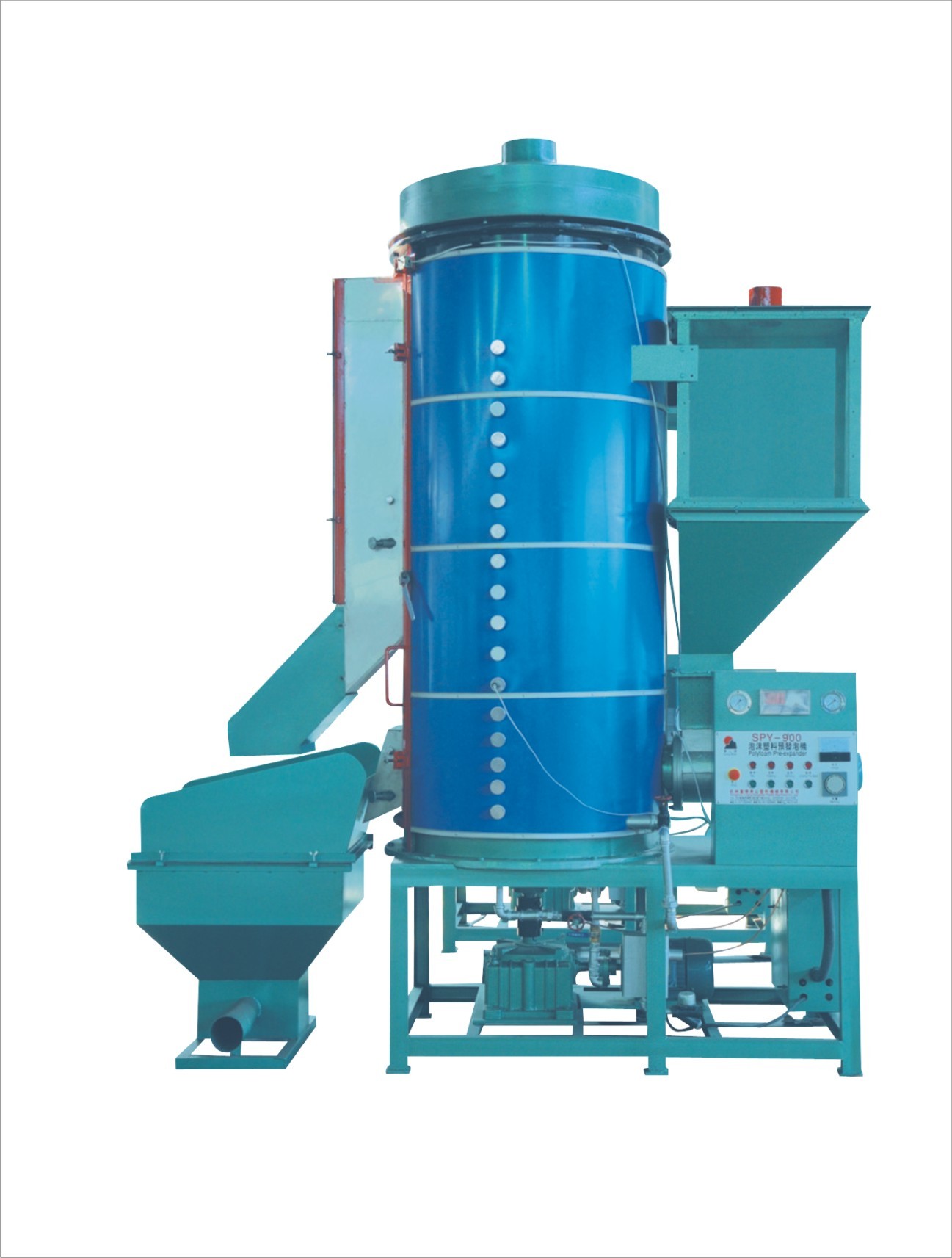

High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding

High Capacity Stainless Steel EPS Pre-expander Machine With 2 Times Feeding
