Semi Auto Mattress Polyurethane Foam Making Machine High Efficient Foaming Making Box

This machine is fully automatic discontinuously produce rectangular and round blocks, also suitable for the production of flexible H.R. rigid and semi-rigid and visco Polyurethane foam blocks.

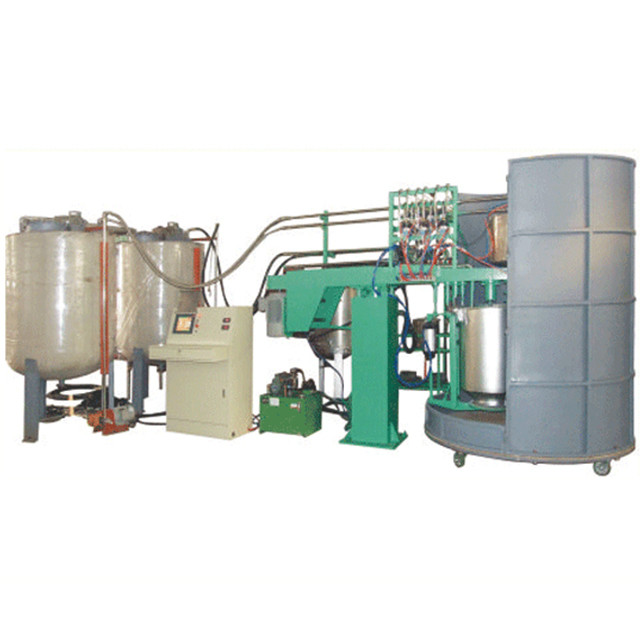

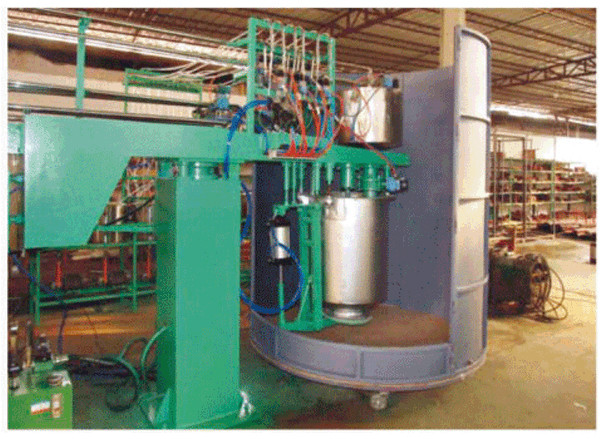

AUTO BATCH PU FOAMING MACHINE consists of mixing system with moving forward and backward device, chemical metering system with re-circulation system to control chemicals which are dosed from the chemical storage tanks through pipe work and pneumatic injection valve systems into the mixing barrel.

Main Technology Data :

1). Product Size: 2400mm×2000mm (L×W)
2). Product Height: Below 1100mm
3). Quantity of component of foaming material: 7 (PPG, TDI, MC, Silicone oil, water, T9, A33 , ect) (for making general foam)
4). Density: 10Kg/m³~60Kg/m³
5). Maximum capacity: 220L/mould
6). Discontinual Foaming
7). Total Power: 35KW

Machine List :

1). Main Machine: 2.8m×2.5m×1.5m(L×W×H)
2). Mould box size : L2400×W2050 (Two Sets)
3). Pot
PPG Volume: 3 Tons Quantity: 1PC
TDI Volume: 1.5 Tons Quantity: 1PC
Others: Volume: 60~120L Quantity: 5PCS

4). Other accessory equipments
Hydraulic system: 2.2Kw/100L 1SET
Hydraulic Cylinder: MOB50×200A 4SETS
Air Compressor: 1 set

Water Cooling Machine: 5HP/5Tons 1SET
Mould: W2050×L2400 2SETS
Pipes.Vavles etc.
