High Efficient CNC Pipe Profile Cutting Machine With Horizontal And Vertical Blade

1 set
MOQ
USD 10000 - 50000 / set
Price
High Efficient CNC Pipe Profile Cutting Machine With Horizontal And Vertical Blade
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Wire Diameter: 0.8~2.0mm
Cutting Wire Length: ~8500mm
Max. Block Size: 2500mm*1225mm*1000mm
Material Can Be Cut: Rock Wool Miner Wool Flexible
Number Of Cutting Wire: Dual Wire (Horizonal +Vertical)
Flying Wheel Diameter: 300mm
Mainly Motor: ABB, 3kW*2pcs
Running Speed Of The Wheel: 2860rpm
Cutting Speed: 0~6m/min
Highlight:

foam cutting machinery

,

polyurethane cutting machine

,

PU Foam Cutting Machine High Efficient

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-F2012
Payment & Shipping Terms
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 20 sets / month
Product Description



D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine



suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
Fast Wire Contour Cutter

Cutting line: Fast cutting wire
The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D
shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain
the best yield from the foam block.
Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident; brake system when cutting line broken.

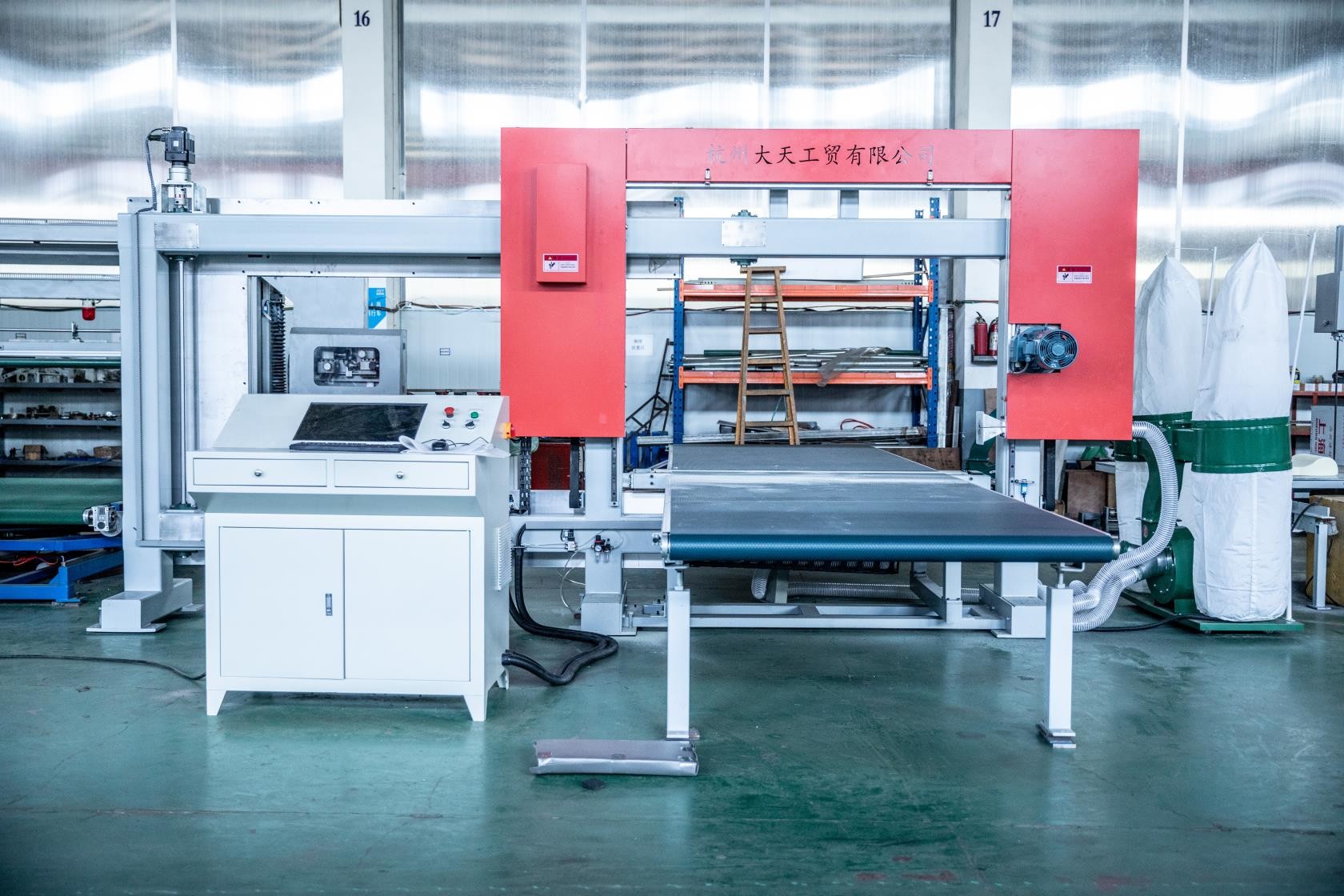

High Efficient CNC Pipe Profile Cutting Machine With Horizontal And Vertical Blade 0
High Efficient CNC Pipe Profile Cutting Machine With Horizontal And Vertical Blade 1

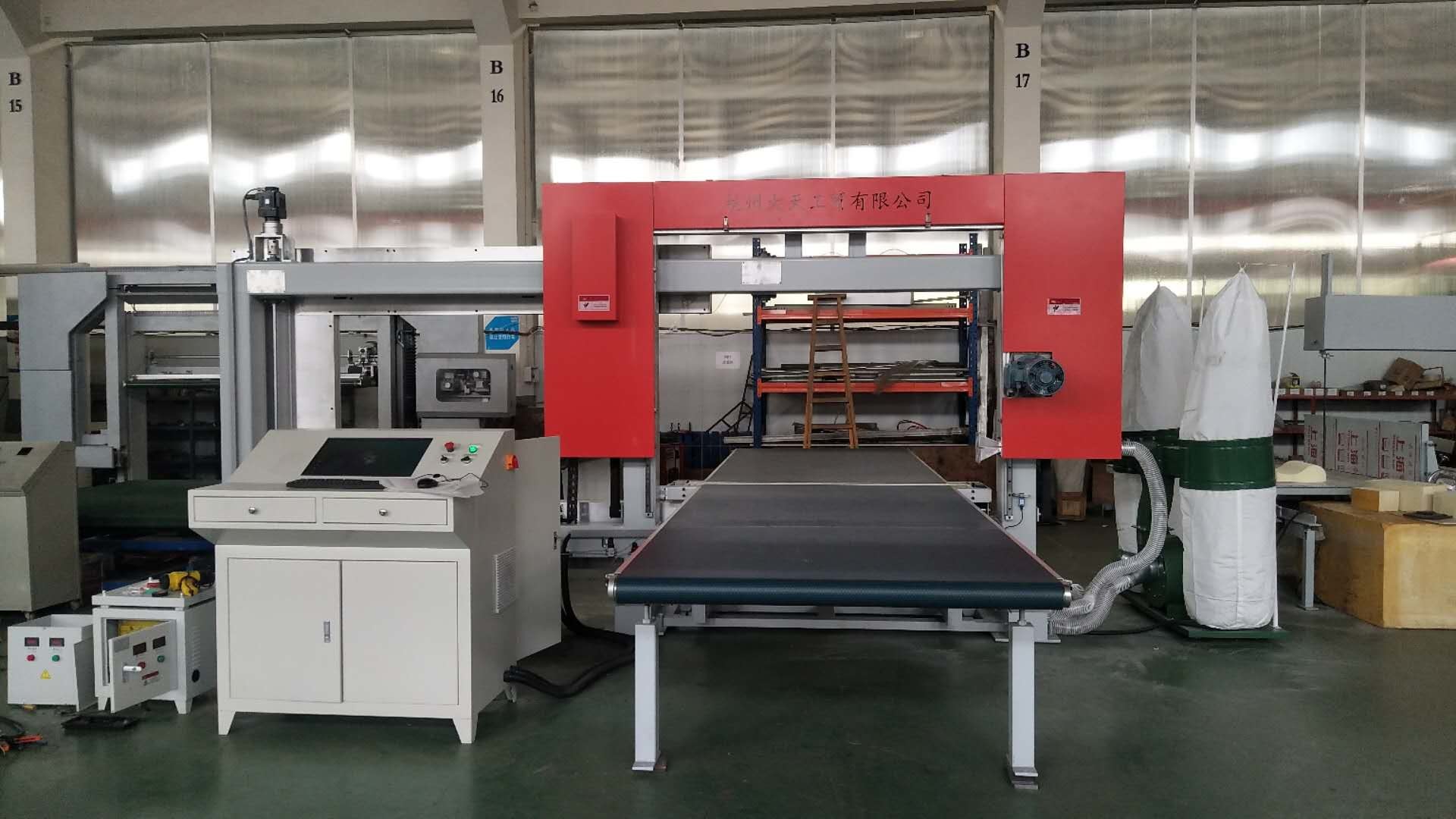

High Efficient CNC Pipe Profile Cutting Machine With Horizontal And Vertical Blade 2







Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
Cutting line: Abrasive steel wire

Specification:
1.It is advanced and fully automatic computerized foam contour cutting machine.
2.Can cut foam into any 2D complex shape.
3.Easy control
This foam cutting machine is most advanced and fully automatic computerized foam contour cutting machine, which can cut the various shape by computerized system.
1.This eva foam contour cutting machine is operated by computer and use CAD software to design the shape for the foam block. Make full use of the foam blocks and extremely save the raw material (foam blocks) cost.
2. Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.
3.Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting; whichenhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: D&T Profile software. Application:
CNC Fast Wire Contour Cutter is specifically developed for special heat insulation materials used in the construction industry, and it can be used in slicing and modeling processing for various types of high density foam.
It is the most ideal equipment in building, indoor decoration, advertising, toys model industry, aerospace industry model, furniture manufacturing and packaging areas. The control system is self-development, worry-free service, To make your most wanted tailor-made production equipment, is the goal we are after.



Technical Specifications

Max. Block Size Length 2500mm
Width 1225mm
Height 1000mm
Control Device Industrial Computer
Computer Operation System Windows7
Software D&T Profiler
Acceptable File Formats DXF/DWG
Number of Cutting Wire Dual Wire (Horizonal +Vertical)
Cutting Wire Length ~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter 0.8~2.0mm
Flying Wheel Diameter 300mm

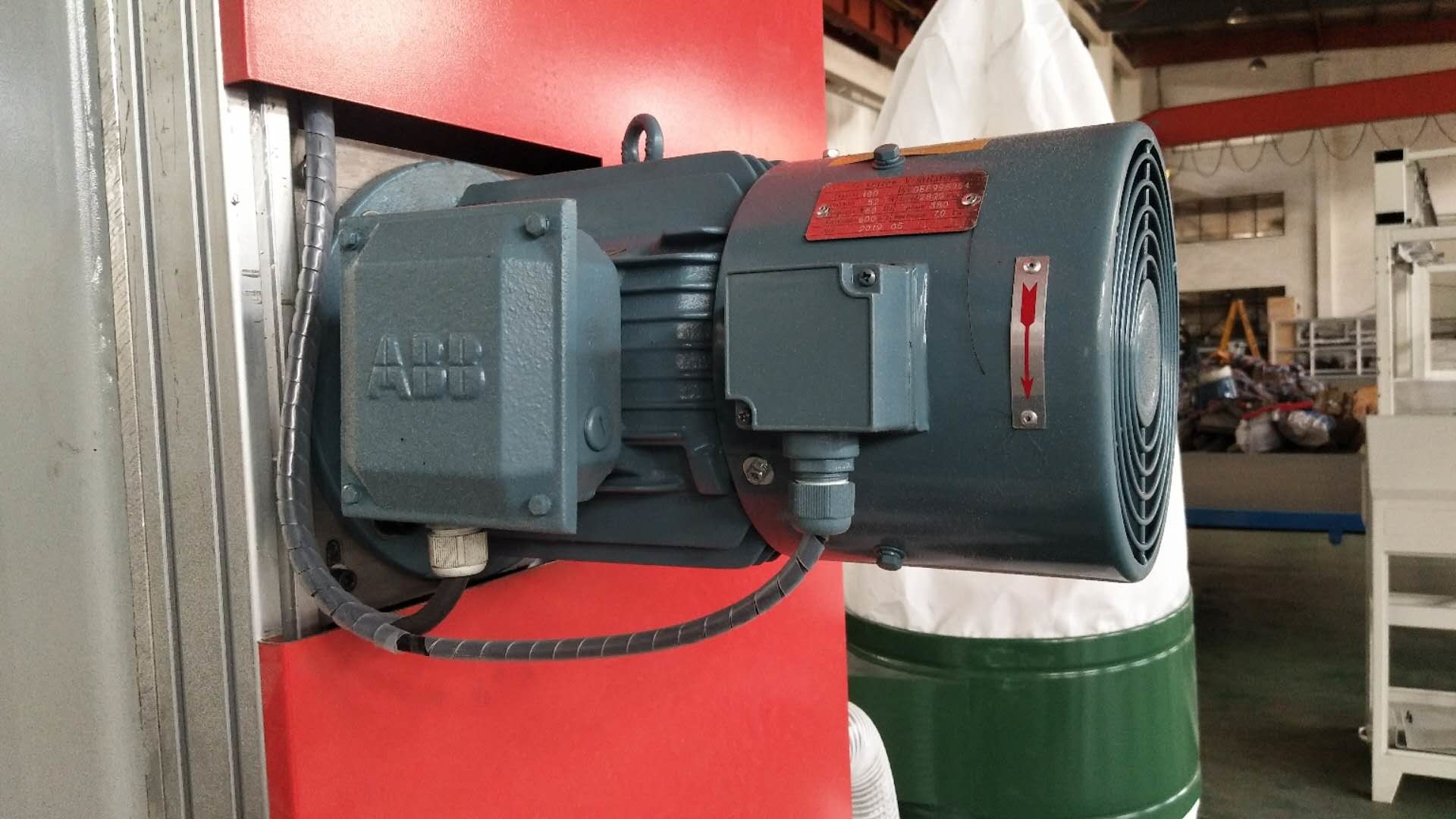

Mainly Motor ABB, 3kW*2pcs
Running Speed of the wheel 2860rpm
Inverter Panasonic, for 3kW motor
Cutting Speed 0~6m/min
Precision ±0.5mm
Total Power 11kW, 400/240V, 50Hz
Gross Weight 2800kg
Overall Dimension 5500*5500*2600 mm
