Home /Products/Oscillating Blade Cutter/Automatic CNC horizontal and vertical dual blade hydraulic polyurethane foam cutting machine

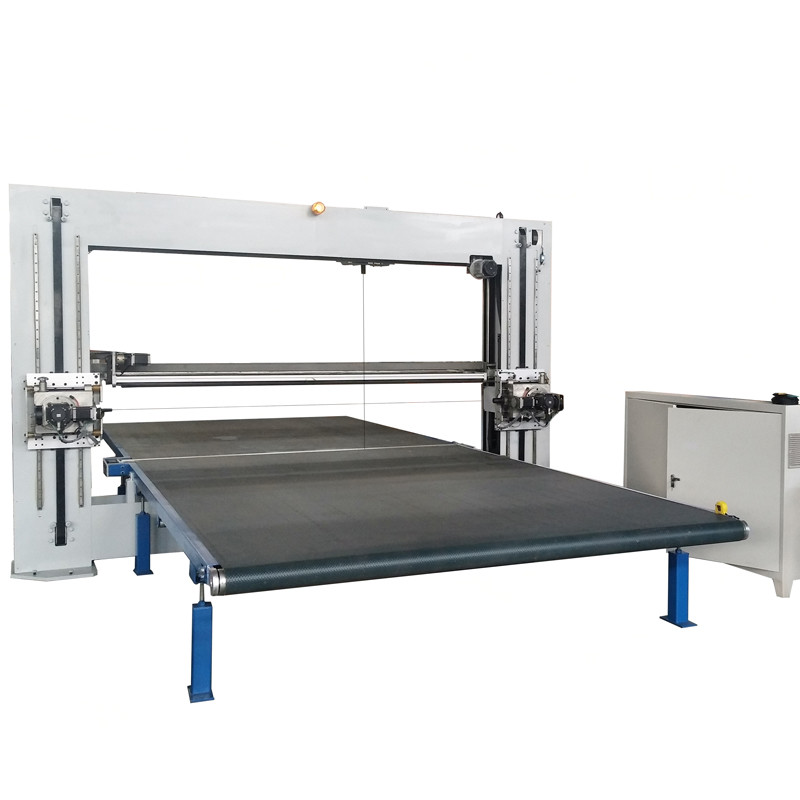

Automatic CNC horizontal and vertical dual blade hydraulic polyurethane foam cutting machine

1 set
MOQ
USD35000-50000/SET
Price
Automatic CNC horizontal and vertical dual blade hydraulic polyurethane foam cutting machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Product Size: 3000*2200*1250(mm)
Horizontal Cutting Blade: 2300*3*0.5mm
Vertical Cutting Blade: 2300*3*0.5mm
Control System: Industrial Computer+Windows XP With D&T Profiler
Cutting Speed: 0~10m/min(adjustable)
Power: 10kw,380v,50hz
Blade Tension: Cylinder Tensioning 6 Bar
Overall Weight: 2000kg
Highlight:

foam contour cutting machine

,

latex cutting machine
Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-SD2012
Payment & Shipping Terms
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

Automatic CNC horizontal and vertical dual blade hydraulic polyurethane foam cutting machine



Automatic CNC horizontal and vertical dual blade hydraulic polyurethane foam cutting machine 0

CNC horizontal oscillating blade cutting machine(with conveyor) is applied for mattress ,furniture, packaging and automotive industry . It can cut many foam materials such as mesh sponge ,bonded foam, flexible foam , latex foam, filter cotton ,high-density cotton, sofa cotton , sound insulation cotton, sound absorbing cotton . There is few dust during the cutting . All two dimensional shapes and simple three dimensional shapes can be cut. It is very easy to tranfter the foam block backwards and forwards automatically after the foam is moved onto conveyor by remote control . All of the cutting movement is totally controlled by computer and this will reduce large amount of human resources and improve the production efficiency.It can save more power and material consumption .





Technology Data:



TECHNICAL DATA 　
Type DTC-SD2012
Max. Product Size 3000*2200*1250(mm)
Horizontal Cutting Blade 2300*3*0.5mm
Vertical Cutting Blade 2300*3*0.5mm
Control System Industrial Computer+Windows XP with D&T Profiler
Cutting Speed 0~10m/min(adjustable)
Power 10kw,380v,50hz
Blade Tension Cylinder Tensioning 6 Bar
Overall Weight 2000kg
Overall Dimension 5800*3180*2400mm









Company Information


Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,

polyurethane cutting machine, quilting machine and foam relation assistant

equipments.

Through the research of our engineers, our cutting machine had connected well with

the popularized CAD and achieved automation and high efficiency,

high accuracy and makes it easy to operate.

We always put the customer on the first place and make utmost efforts to satisfy

you.We wholeheartedly look forward to developing economic,

technical and trade cooperation with you.



Products: Fast wire cutting machine, pu cutting machine,

hot wire cutting machine, eps cutting machine,

quilting machine and so on.





FAQ



1. Q:Are you a factory ?



    A:Yes,We are a manufacturer and doing the foam machines since 2006.



2. Q: Which drawing software do you use?



    A: Auto CAD.



3. Q: Whether your engineer can come to our factory for installation of the machine?



   A: Yes, sure.



4. Q: Can you import DXF files from another source?



   A : yes. Any DXF files is acceptable.



5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?



   A : Yes, include it.



6. Q: What countries have you sold to?



   A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.

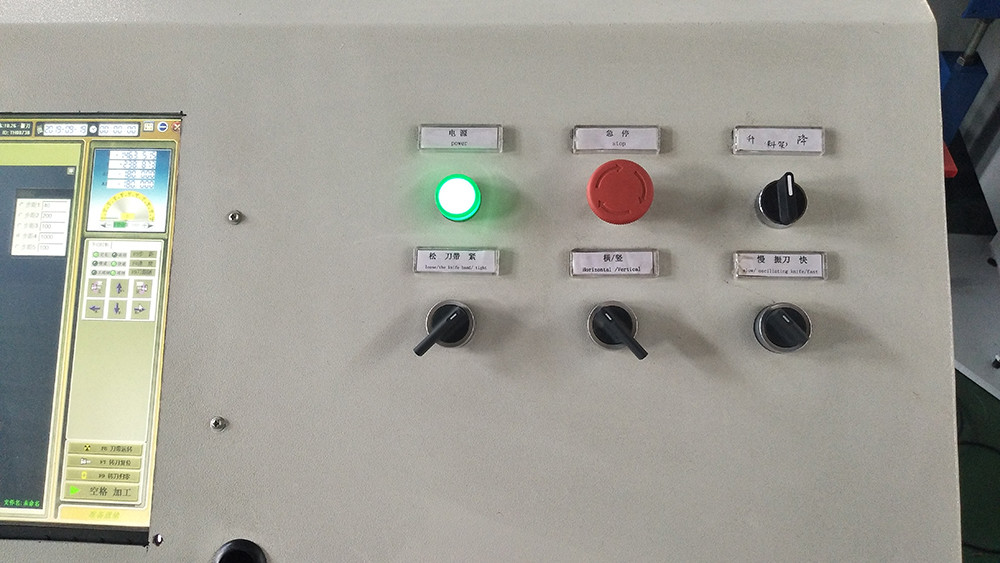

7. Q: What safety controls are on the machine?



    A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.



     There are two fence around the cutting frame, the machine will stop when you open the fence.





 Cutting material sample

Automatic CNC horizontal and vertical dual blade hydraulic polyurethane foam cutting machine 1
