Name: Eps Polystyrene Cutting Machine CNC For Horizontal Block Insulation Board Sheet
Brand: Fuyang D&T Industry Co., Ltd.
SKU: DTC-E2012
Price: 24,750.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Max. Product Size: 2000*1300*1300(mm)

Power: 13.5kw, 380V, 50HZ

Overall Dimension: 4800*1950*1850(mm)

Overall Weight: 1200kg

Control System: Industrial Computer

Cutting Line: 0.8-1.2mm

Highlight:

tape edging machine

hot wire foam cutter

Basic Infomation

Place of Origin: Zhejiang,China

Brand Name: D&T

Certification: CE

Model Number: DTC-E2012

Payment & Shipping Terms

Packaging Details: Film + wooden box

Delivery Time: 40 working days

Payment Terms: T/T, L/C, Paypal, Western Union

Supply Ability: 20 sets / month

Gallery

Eps Polystyrene Cutting Machine CNC For Horizontal Block Insulation Board Sheet

Product Description

·services

Our engineers is avilable to repair oversea afer you buy our machine and we have professional persons do the service after sale

1. 12 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery.

7. Our staff can be sent to your company to install or adjust if necessary.

Eps Polystyrene Cutting Machine CNC For Horizontal Block Insulation Board Sheet 0

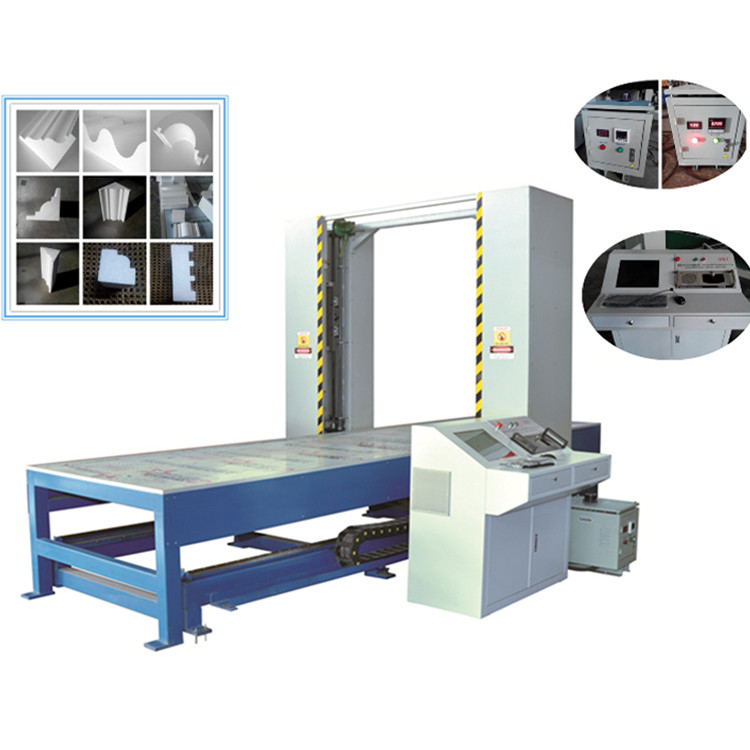

Eps Polystyrene CNC Horizontal Block Insulation Board Sheet Cutting Machine

Eps Polystyrene Cutting Machine CNC For Horizontal Block Insulation Board Sheet 1

·Product Parameter

Model	DTC-E2012	DTC-E3012	DTC-E3030
Max. Size(LWH mm)	200013001000	300013001300	300030001300
Cutting Line	φ0.8-1.2	φ0.8-1.2	φ0.8-1.2
Cutting Speed	0-1.5m/min	0-1.5m/min	0-1.5m/min
Cutting Software	D&T Profile	D&T Profile	D&T Profile

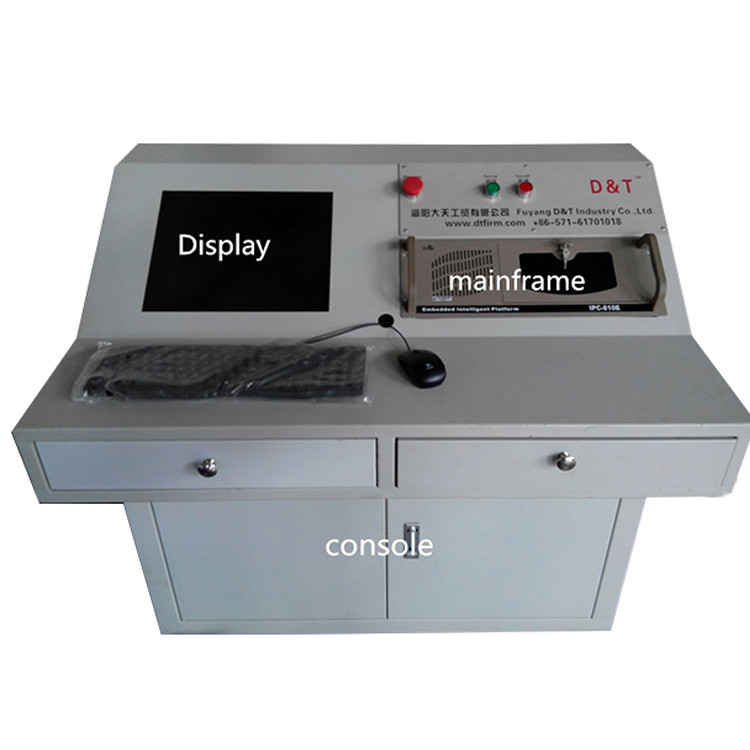

Cutting System	Industrial Computer	Industrial Computer	Industrial Computer
Computer Operation System	Windows XP	Windows XP	Windows XP
Coolng System	Air blower	Air blower	Air blower
Acceptable File Formats	DXF/DWG	DXF/DWG	DXF/DWG
X-Axis Motor	Servo Motor	Servo Motor	Servo Motor
Number of Cutting Wire	Up to 20	Up to 20	Up to 20
Total Power	13.5kw,380V,50Hz	14.5kw,380V.50Hz	14.5kw,380V,50Hz
Gross Weight	1200kg	1500kg	2000kg

·Product details

Eps Polystyrene Cutting Machine CNC For Horizontal Block Insulation Board Sheet 2

Eps Polystyrene Cutting Machine CNC For Horizontal Block Insulation Board Sheet 3

·Features

1. All the machines are driven by the remarkable D&T Profiler software:the software speeds up the design process and enables the operator to obtain the best yield from the foam block;

2. It has perfect safe system to prevent the accident:all Motors will stop when the safety dooropened;Exigency button on both machine and control box is for preventing accident.

Suit for: Polystyrene

Cutting Line: Hot Wire

Application:D&T series hot wire contour cutter is special cutting machine for complex shape products of EPS.It has one or several cutting wires for different production requests.

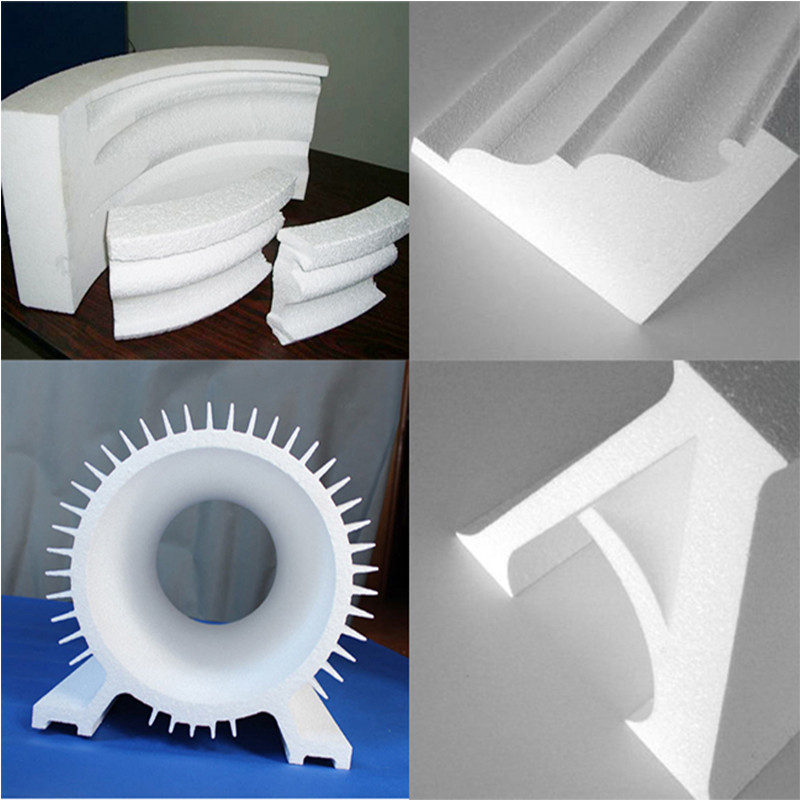

·Cutting Samples
