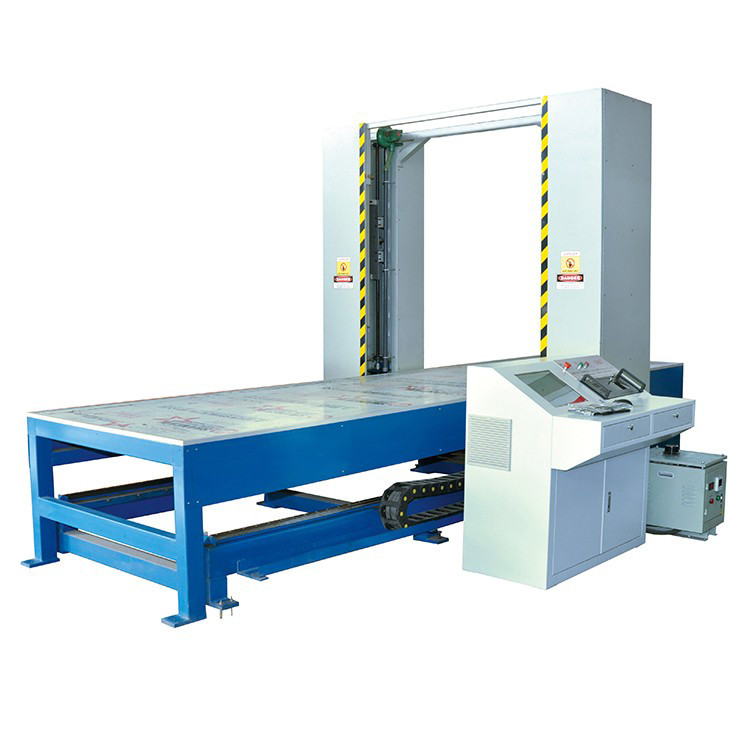

Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape

1set
MOQ
USD20000~40000/SET
Price
Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CNC 2D EPS Cutting Machine
Type: DTC-E2012
Product Size: 2000*1300*1000mm
Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm
Power: 13.5kw,380v,50hz
Weight: 1200kgs
Color: As Cliebts Requirement
Name: Eps Cutting Machine
Warranty: 1 Year
Highlight:

eps foam cutting equipment

,

eps foam cutting machine

Basic Infomation
Place of Origin: CN
Brand Name: D&T
Certification: ce
Model Number: DTC-E2012
Payment & Shipping Terms
Packaging Details: packed with pvc film into 20 container
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description




Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape 0Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape 1





Technical Data of  2D EPS cutting machine


Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person  ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg






























 Description

Suit for: Polystyrene
Cutting line: Hot Wire

1.D&T series 2D EPS cutting machine is a special cutting machine,which is for complex shapes of EPS products.

2.THis kind of cutter has one or sevaral cutting lines for different production request.All the machines are driven by the remarkable D&T Profiler software,which speeds up the design process and enables the operator to obtain the best yield from the foam block.
3.It includes: All Motor will stop when the safety door be opened;Exigency button on both machine and control box for accident;brake system when cutting line broken.



FAQ


Q1:Are you a factory ?
A1:Yes,We are a manufacturer and doing the foam machines since 2006.

Q2: Which drawing software do you use?
 A2: Auto CAD.

Q3: Whether your engineer can come to our factory for installation of the machine?
A3: Yes, sure.

Q4: Can you import DXF files from another source?
A4 : yes. Any DXF files is acceptable.

Q5:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A5 : Yes, include it.

Q6: What countries have you sold to?
A6: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.

Q7: What safety controls are on the machine?
A7: There are urgence bottoms on the control box and machine for accident to stop the machine


Finished Products:

  Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape 2  Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape 3


Auto Expander Polystyrene Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape 4
