Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | Zhejiang,China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-E2012 |
Minimum Order Quantity: | 1 set |
Price: | USD 10000- 40000 / set |
Packaging Details: | Film and wooden box |
Delivery Time: | 30 working days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 sets per month |

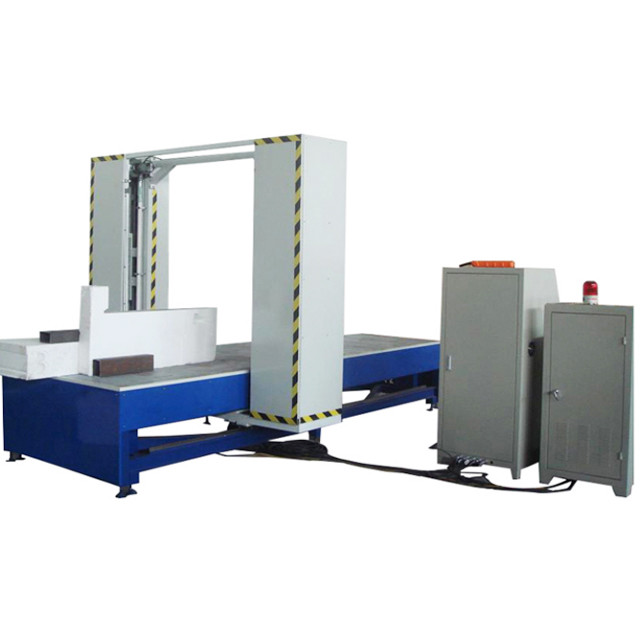

Item: | CNC Hot Wire Cutting Machine | Product Size: | 2000*1300*1000mm |
---|---|---|---|
Cutting Line Diameter: | 0.5-1.2mm | Control System: | Industrial Computer |
Cutting Speed: | 0-1.5m/min(adjusted) | Precision: | ±0.5mm |
Power: | 13.5kw,380v,50hz | Weight: | 1200kgs |
Color: | As Cliebts Requirement | ||
Highlight: | EPS Hot Wire Foam Cutting Machine,0.5mm Hot Wire Foam Cutting Machine,1.5m/Min Hot Wire Foam Cutting Machine |
D&T series 2D EPS cutting machine is a special cutting machine,which is for complex shapes of EPS products.
All the machines are driven by the remarkable D&T Profiler software,which speeds up the design process and enables the operator to obtain the best yield from the foam block.
Includes:
1)All Motor will stop when the safety door be opened;
2)Exigency button on both machine and control box for accident;
3)Brake system when cutting line broken.
TECHNICAL DATA | |||
Type | DTC-E2012 | DTC-E3012 | DTC-E6012 |
Max. Product Size | 2000*1300*1000mm | 3000*1300*1300(mm) | 6000*1300*1300(mm) |
Cutting Line | 0.5~1.2mm | ||
Control System | Industrial Computer | ||
Software | D&T Profiler | D&T Profiler | D&T Profiler |
Cutting Speed | 0~1.5m/min | 0~1.5m/min | 0~1.5m/min |
Person | ±1mm | ||
Power | 13.5kw, 380v, 50hz | 14.5kw, 380v, 50hz | 14.5kw, 380v, 50hz |
Overall Weight | 1200kg | 1500kg | 2000kg |
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine, polyurethane cutting machine, quilting machine and foam relation assistant equipments.
Through the research of our engineers,our cutting machine had connected well with the popularized CAD.
We always put the customer on the first place and make utmost efforts to satisfy you.
We wholeheartedly look forward to developing economic,technical and trade cooperation with you.
1. Q:Are you a factory ?
A:Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop when you open the fence.
