Digital CNC Computerized PU Foam Cutting Machine For Rigid PU EPS

1 set
MOQ
USD15000-50000/SET
Price
Digital CNC Computerized PU Foam Cutting Machine For Rigid PU EPS
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CNC Foam Contour Cutting Machine For Rigid Foam
Type: DTC-F2012
Product Size: 3000*1200*1200mm
Cutting Line Diameter: 1.0-1.5mm
Control System: Industrial Computer
Cutting Speed: 0-10m/min(adjusted)
Precision: ±0.5mm
Power: <6.5kw
Weight: 1200kgs
Overall Dimension: 6200*2400*2380mm
Name: FOAM CUTTING MACHINE
Highlight:

Digital PU Foam Cutting Machine

,

Rigid PU Foam Cutting Machine

,

Computerized PU Foam Cutting Machine

Basic Infomation
Place of Origin: CN
Brand Name: D&T
Certification: CE
Model Number: DTC-F2012
Payment & Shipping Terms
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

Digital CNC Computerized PU Foam Cutting Machine for Rigid PU, EPS, PE, PVC, EVA, Rockwool and Phenol foam









Specification:



1. It is advanced and fully automatic computerized foam contour cutting machine.
2. Can cut foam into any 2D or 3D complex shape
3.All the machine are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain t       the best yield from the foam block





This foam cutting machine is most advanced and fully automatic computerized foam contour cutting machine, which can cut the various shape by computerized system.




1. This eva foam contour cutting machine is operated by computer and use CAD software to design the shape for the foam block. Make full use of the foam blocks and extremely save the raw material(foam blocks) cost.



2. Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.
3. This CNC contour cutter is equipped with wireless remote control which makes the operation more humane convenient.
4. Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting; which enhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP

7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: Foam cutting control system



Features:


1)  Big cost savings by eliminating the need to make, repair and store templates
2)  Integrated design & cutting program. Just design then cut
3)  Big cost savings by automatically arranging the product
4)  Supports numeric instrument
5)  Higher material utilization resulting from computer aided nesting of shapes
6)  Cutting speed can be set to be the best-cut speed for different foams
7)  Can pre-cut on the computer to check cutting course
8)  Several ways to keep operator safe: four safety doors to stop all motors
      when it is opened; braking system starts when cutting line is broken





Technical Data of  2D CNC Fast Wire Cutting Machine



TECHNICAL DATA
Type DTC-F1212 DTC-F2012 DTC-F2512
Max. Product Size 2500*1200*1000(mm) 2500*2000*1200(mm) 2500*2500*1200(mm)
Cutting Line 1.3~1.5mm 1.3~1.5mm 1.3~1.5mm
Control System Industrial Computer Industrial  Computer Industrial Computer
Software D&T Profiler D&T Profiler D&T Profiler
Cutting Speed 0~6m/min 0~6m/min 0~6m/min
Precision ±0.5mm ±0.5mm ±0.5mm
Power <5.5kw <6.5kw <8.5kw
Vacuum De-dust Included Included Included
Overall Weight 1200kg 1500kg 2200kg
Overall Dimension 4800*2400*2380mm   4800*3200*2800mm 4800*3800*2800mm





Our Services



After-sale Service:



1. Our engineers is avilable to oversea for coordinate installation, commissioning and training. Cost for flight and suitable accommodation plus USD 80 per day each person will be charged additionally.



2. Lifetime maintenance free of charge.



3. Free training course at our plant.



4. 24 hours on line service each day, free technical support.



5. Machine has been adjusted and test before delivery.





Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.



                   shipping cost for parts to be replaced during warranty period have to be borned by the customers.





Terms of Paypent: 30% advance payment by T/T upon signing the contract



                                   70% covered by Confirmed Irrevocable Sight L/C

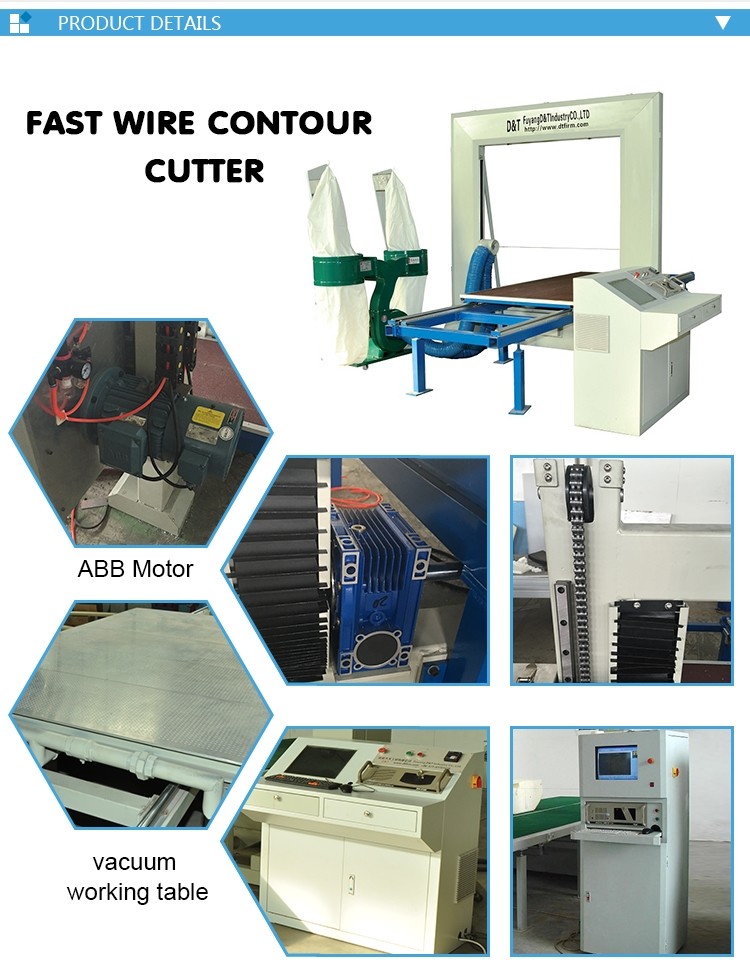

Digital CNC Computerized PU Foam Cutting Machine For Rigid PU EPS 0



Company Information


Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,

polyurethane cutting machine, quilting machine and foam relation assistant

equipments.

Through the research of our engineers, our cutting machine had connected well with

the popularized CAD and achieved automation and high efficiency, high accuracy and makes it

easy to operate.We always put the customer on the first place and make utmost efforts to satisfy

you.We wholeheartedly look forward to developing economic, technical and trade cooperation

with you.

Products: Fast wire cutting machine, pu cutting machine, hot wire cutting machine, eps

cutting machine,quilting machine and so on.



Welcome visit us!please feel free to contact us for more information!
