Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | CN |
|---|---|
| Brand Name: | D&T |
| Certification: | CE |
| Model Number: | DTYQ-750 |
| Minimum Order Quantity: | 1SET |
| Price: | USD10000-50000/SET |
| Packaging Details: | PVC Film |
| Delivery Time: | 40days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 20 sets/month |
| Item: | Circle Foam Cutting Machine | Size: | 2000×1500×1200mm Four Pieces |
|---|---|---|---|
| Cutting Speed: | 0-25m/min | Cutting Thickness: | 5-150mm |
| Power: | 7.94kw | Weight: | 1500kgs |
| High Light: | Digital Control Cnc Foam Cutter,Horizontal Circular Foam Cutting Machine,Digital Control Circular Foam Cutting Machine |
||

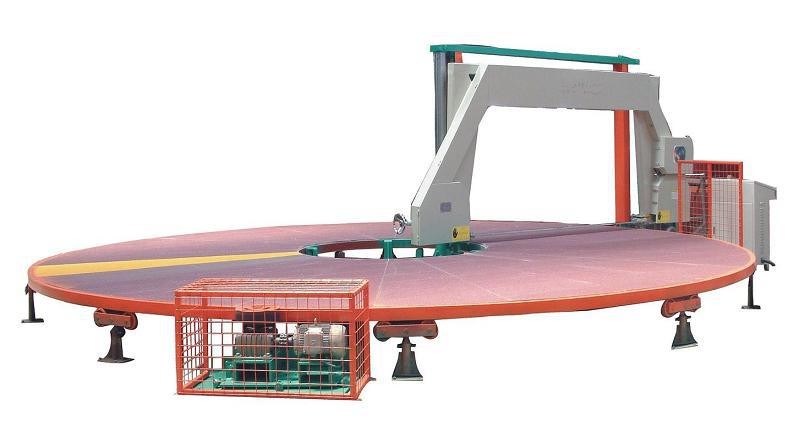

Automatic Digital Control Circle Horizontal Cutter for different kinds of flexible foam
Specifications
This machine is mostly used for many quadrate foam continuously flatly slicing.It is fully
automatic controlled operation and the cutting is accurate,the operation is simple and the
production efficiency is very high.It chooses with vacuum equipments,the foam rubber fixed more
firmly,the effect of cutting is better.The humane designing can make it more safer to the worker.
It can choosing two blades for the better effect of cutting soft sponge.
|
TECHNICAL DATA |
|||
|
Type |
DTYQ-750 |
DTYQ-850 |
DTYQ-1150 |
|
Max. Product Size |
2000×1500×1200mm |
3000×2150×1200(mm) |
4500×2150×1200(mm) |
|
Cutting Thickness |
2~150mm |
2~150mm |
2~150mm |
|
Cutting Line |
8940 mm |
10000 mm |
10240 mm |
|
Overall Power |
8.04kW |
8.84kW |
10.24kW |
|
Overall Dimension |
6900×6000×2400(mm) |
7900×7000×2400(mm) |
11500×11000×2400(mm) |
|
Overall Weight |
3300kg |
3500kg |
3800kg |
Description:
This cutter adopts the advanced Frequency conversion system. Automatic number controlled.
It is operation is handy and cutting is exact. This machine is suitable to cut horizontal sheet for
several sponge once. It control by digital system, and Frequency conversion system.
This machine adopts the advanced imported controlled techniques and electrical btake device .
Its fully automatic controlled operation and cutting accurately .it can be continuously cutout.
its dependability is lofty and production efficiency is better .
meanwhile we latest research to manufacture the huge carrousel splitting machine successfully.
which the diameter 10.5 is the biggest in the current national.
it can be continuously cut the bigger quadrate foam of w2.15*4.5m.(this machine choose with
vacuum equipments
Terms:
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery
Delivery: 45 working days after receipt of advance payment.
Installation and Start-up:
One technician will be assigned to coordinate installation,
commissioning and training,
cost for flight and suitable accommodation plus
USD80/day per person will be charged additionally.
Warranty: 12 months limited warranty starting
from date of delivery excluding wear parts.
Shipping cost for parts to be replaced
during warranty period have to be borne by the customer.
All size can be made by your requirement.
We trust this offer meets your requirements and look forward to your reply with much interest.
