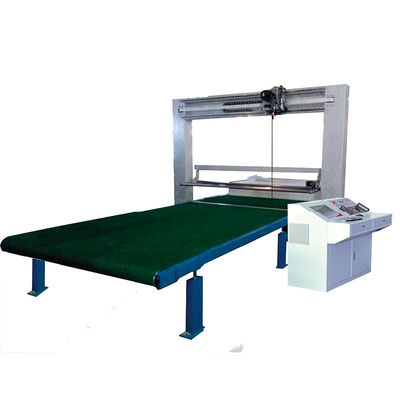

6kw Flexible Foam Vertical CNC Oscillating Blade Cutter High Speed for cuting 2D or 3D shapes
Oscillating Blade Cutter application :Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.And advantage:1* PC/ Industry computer control, easy operation.2* Worktable:plat working table, moving table (could select)
| Model |
DTC -SL1212 |
| Max. Product size (customizable) |
Max. Product size (customizable) |
| Blade Size |
3*0.5mm |
| Control System |
Industrial Computer+Win7 with D&T Profiler |
| Cutting Speed |
Cutting Speed |
| Cutting Speed |
4kW,380V,50Hz |
| Blade Tension |
Cylinder Tensioning 6 bar |
| Overall Weight |
1500kg |
| Overall Dimension |
6200*2400*2380mm
|
Description:
1. The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which is suitable flexible foam.
2. The blade cut with high speed vibrating, so that it will work faster and the product will be smoother.
3. Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.
4. All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain the best yield from the foam block.
Cutting finish product:
Software question:
1. Q: what kind of CAD software the machine uses?
A: For the CAD software ,our machine uses 2004 or 2006(you prefer )
2. Q: about the CAD software, what's its name?
A: The name is Auto CAD Software
3. Q: where do you sell your machines mostly? which countries?
A: our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types
4. Q: the operating system which you use is windows, right? what kind of windows? XP? or Windows 7?
A:Yes ,it is Windows XP. When operated,Our machine doesn't need to use network.We usually use XP for its stability.Also windows 7 is OK.
5. Q:is your software licensed or it's illegal? ("cracked")
A: our own profiler cutting software is develop by ourselves.
6. Q:The differences between our Fast Wire CNC Cutting machine and Oscillating Blade CNC Blade cutting Machine.
A:First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutter use high-speed toothed blade.
Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material, the better cutter is Oscillating Blade CNC cutter.
Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material
needs an extra dust pelletizing system and the soft material also is not good for the fast wire
cutter itself.
Why choose D&T:
-Since 2006, being the leading manufacturing CNC automatic foam cutting machine in China,
-D&T offers the highest price performance foam cutting machine.
-Every D&T product was marked as economic, environmental and easy maintenance.
-With 9 years history in the industry, D&T built a high reputation in South America,
-Eastern Europe, Southeast Asia, and Oceania regions.
-The D&T Industry Co., Ltd. won the customers for our good service and advanced technology.
Welcome to D&T!
1. Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day each person will be
charged additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
FAQ
1. Q:Are you a factory ?
A: Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop when you open the fence.
Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine, polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assistant equipments. Through the research of our engineers, our cutting machine had connected well with
the popularized CAD and achieved automation and high efficiency, high accuracy and makes it easy to operate.We always put the customer on the first place and make utmost efforts to satisfy you.We wholeheartedly look forward to developing economic, technical and trade cooperation with you.
Products: Fast wire cutting machine, pu cutting machine, hot wire cutting machine, eps
cutting machine, 3D panel production line, concrete spray machine and so on.
