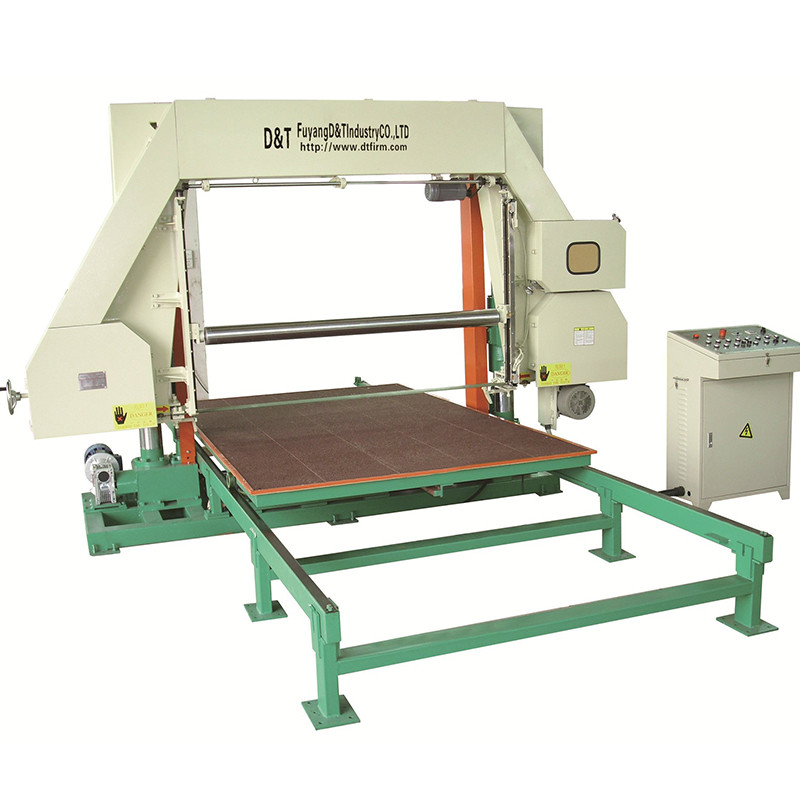

CE Polyurethane PU Horizontal Foam Cutting Machine For Sponge Sheet with mini cutting thickness 2mm
This cutter adopts the advanced Frequency conversion system. It is used for sponge sheet cutting. Automatic number controlled. It is operation is handy and cutting is exact. This machine can also be supplied with pressure roller.
|
TECHNICAL DATA |
|||
|
Type |
DTPQ-1250 |
DTPQ-1650 |
DTPQ-2150 |
|
Max. Product Size |
2500×1250×1200(mm) |
2500×1650×1200(mm) |
3000×2150×1200(mm) |
|
Cutting Line |
8500 mm |
8500 mm |
9820 mm |
|
Control System |
Transducer |
Transducer |
Transducer |
|
Cutting Speed |
0~25m/min |
0~25m/min |
0~25m/min |
|
Overall Power |
8.14kW |
8.14kW |
8.14kW |
|
Overall Dimension |
5800×3100×2400 mm |
5800×3500×2400 mm |
7800×4200×2400 mm |
|
Overall Weight |
2000kg |
2000kg |
2200kg |
1. Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day each person will be
charged additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
1. Q:Are you a factory ?
A: Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop when you open the fence.
