Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-FK2012 |
Minimum Order Quantity: | 1 Set |
Price: | USD 10000 - 50000 / set |
Packaging Details: | Film + wooden box |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T, Western Union,paypal |
Supply Ability: | 20 sets / month |
Cutting Wire Diameter: | 0.8~2.0mm | Cutting Wire Length: | ~8500mm |
---|---|---|---|
Max. Block Size: | 2500mm*1225mm*1000mm | Material Can Be Cut: | Rock Wool Miner Wool Flexible |
Number Of Cutting Wire: | Dual Wire (Horizonal +Vertical) | Flying Wheel Diameter: | 300mm |
Mainly Motor: | ABB, 3kW*2pcs | Running Speed Of The Wheel: | 2860rpm |
Colour: | Customized | Product Name: | DTC-FK2012 Vertical Blade Wire Cutting Machine |
High Light: | Rock Wool Wire Cutting Machine,Vertical Blades Wire Cutting Machine,Vertical Blades PU Foam Cutter |

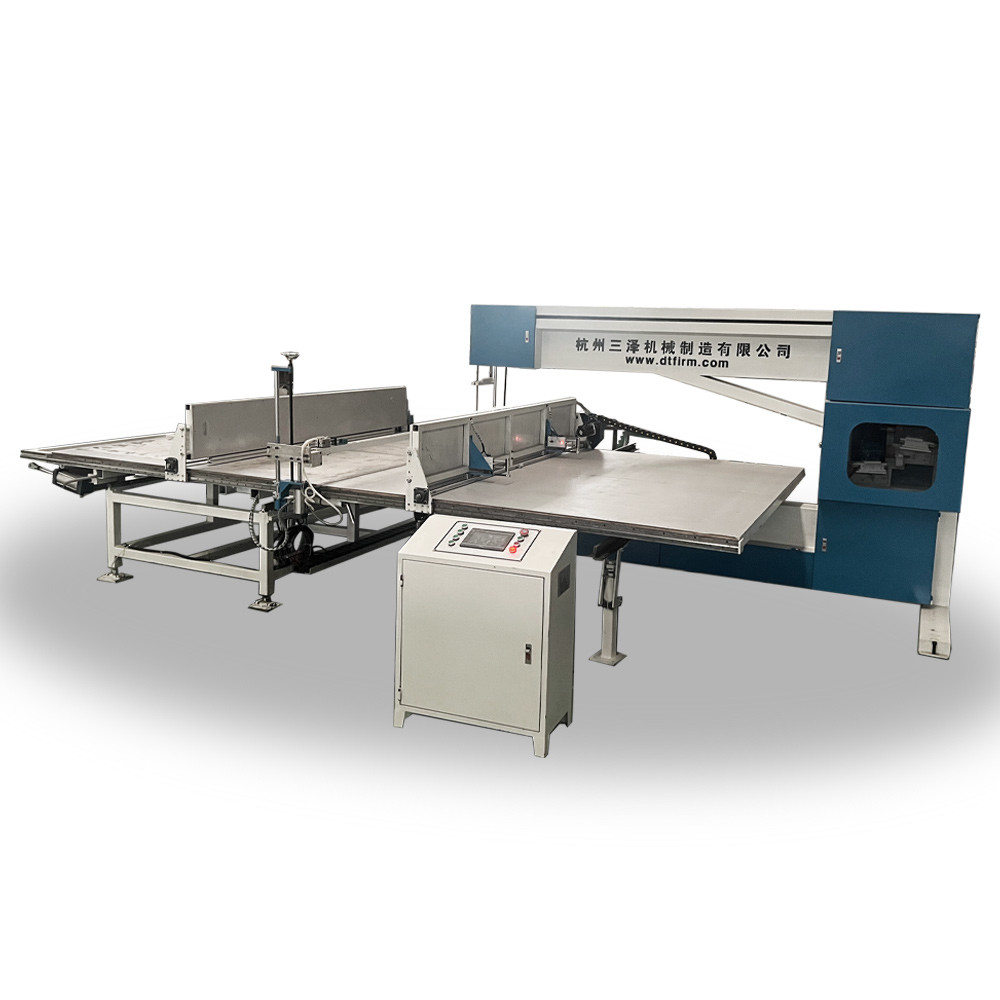

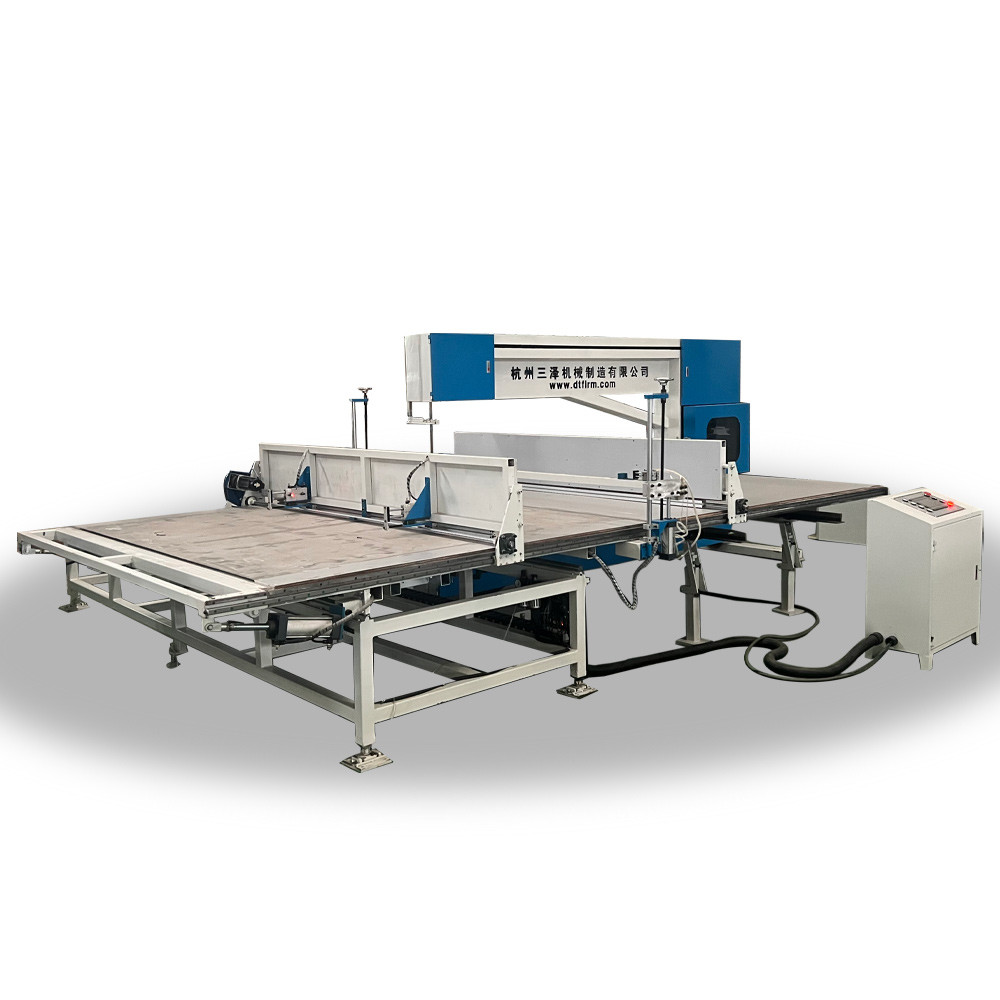

DTC-FK2012 Vertical Blade Wire Cutting Machine
D&T Vertical Blade Wire Cutting Machine 2860rpm For Rigid Foam
1. suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
2. Cutting line: Fast cutting wire
3. The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain the best yield from the foam block.
*Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident; brake system when cutting line broken.
Specification:
It is an advanced automatic computer foam contour cutting machine.
Foam can be cut into any 2D complex shape.
easy to control
This machine is the most advanced automatic computer foam contour cutting machine at present, which can cut various shapes of foam contours through the computer system.
The eva foam contour cutting machine is operated by computer and uses CAD software to design the shape of the foam block. Make full use of foam blocks, greatly saving the cost of raw materials (foam blocks).
Besides CAD software, we have also designed another simple and easy-to-use drawing software by our engineers. Operators only need to undergo simple computer knowledge training.

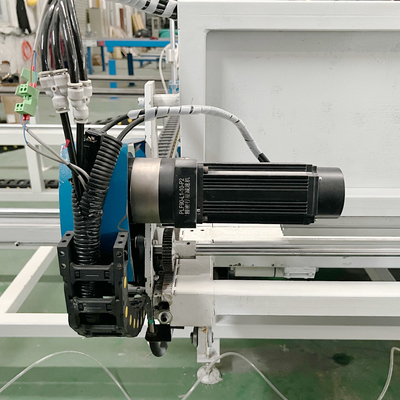

Equipped with high-precision servo system; fast cutting speed and high cutting accuracy; this improves work efficiency. 85% of the dust is collected in the bag during the cutting process with low noise.
Operating System: Windows XP
Design software: Auto CAD/self-developed CNC operation software.
Cutting software: D&T Profile software.
application:
The CNC Fast Line Profile Knife is specially developed for special thermal insulation materials used in the construction industry, and can be used for slicing and molding of various types of high-density foams.
It is the most ideal equipment in the fields of construction, interior decoration, advertising, toy model industry, aerospace industry model, furniture manufacturing and packaging. Self-made control system, worry-free service, and tailor-made production equipment for you are our goals.
Technical Specifications
Max. Block Size | Length | 2500mm |
Width | 1225mm | |
Height | 1000mm | |

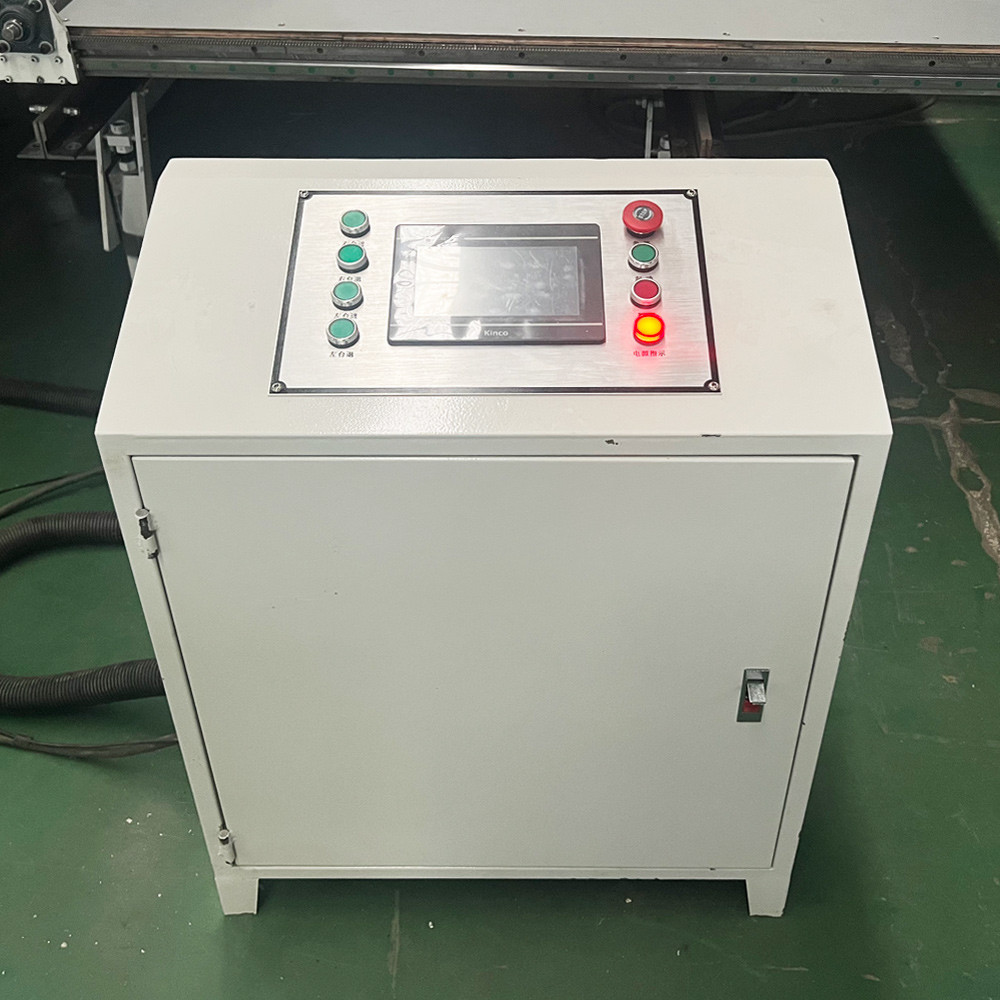

Control Device | Industrial Computer | |
Computer Operation System | Windows7 | |
Software | D&T Profiler | |
Acceptable File Formats | DXF/DWG | |
Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
Cutting Wire Diameter | 0.8~2.0mm | |
Flying Wheel Diameter | 300mm | |
Mainly Motor | ABB, 3kW*2pcs | |
Running Speed of the wheel | 2860rpm | |
Inverter | Panasonic, for 3kW motor | |
Cutting Speed | 0~6m/min | |
Precision | ±0.5mm | |
Total Power | 11kW, 400/240V, 50Hz | |
Gross Weight | 2800kg | |
Overall Dimension | 5500*5500*2600 mm |
