Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape

1set
MOQ
USD3000~8000/SET
Price
Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CNC 2D EPS Cutting Machine
Type: DTC-E2012
Product Size: 2000*1300*1000mm
Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm
Power: 13.5kw,380v,50hz
Weight: 1200kgs
Color: As Cliebts Requirement
Name: Eps Cutting Machine
Warranty: 1 Year
Colour: Customized
Highlight:

Customized Cnc Hot Wire Foam Cutter

,

3D Shape Eps Hot Wire Cutter

,

2D Shape Eps Hot Wire Cutter

Basic Infomation
Place of Origin: CN
Brand Name: D&T
Certification: ce
Model Number: DTC-E2012
Payment & Shipping Terms
Packaging Details: packed with pvc film into 20 container
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

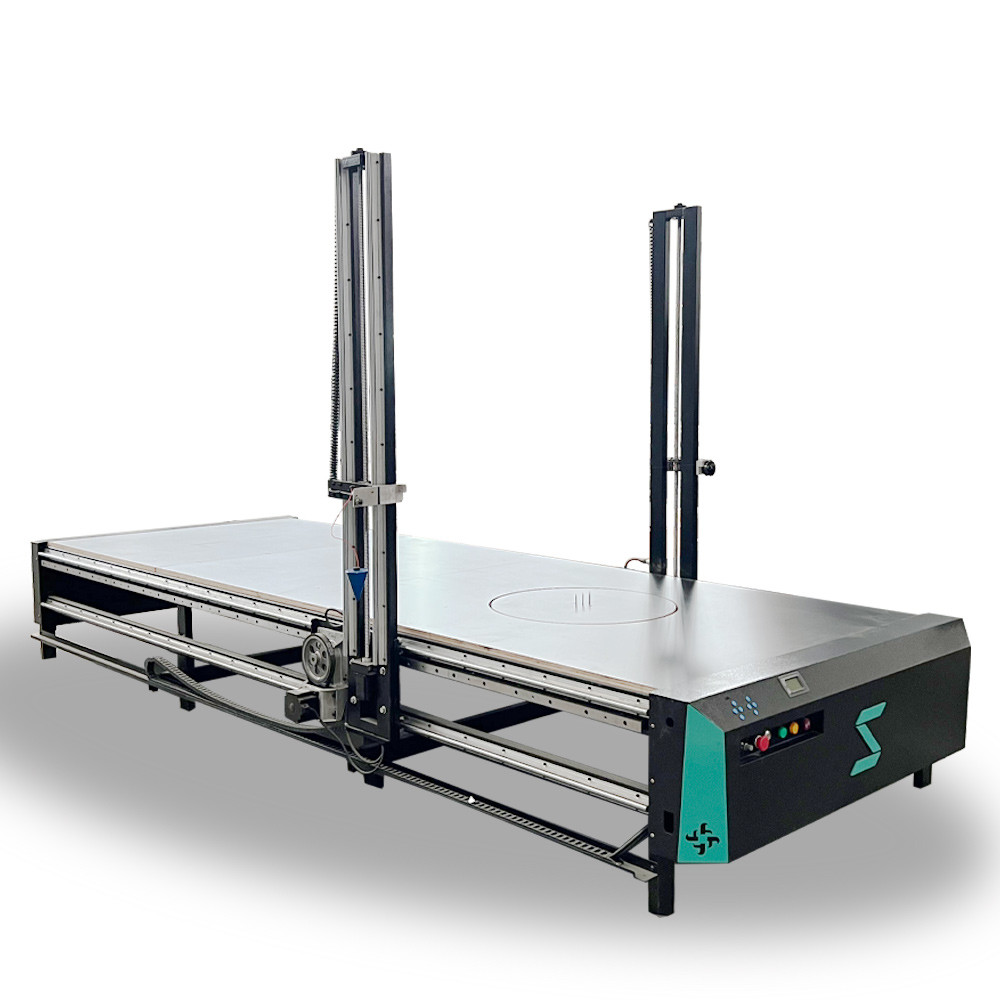

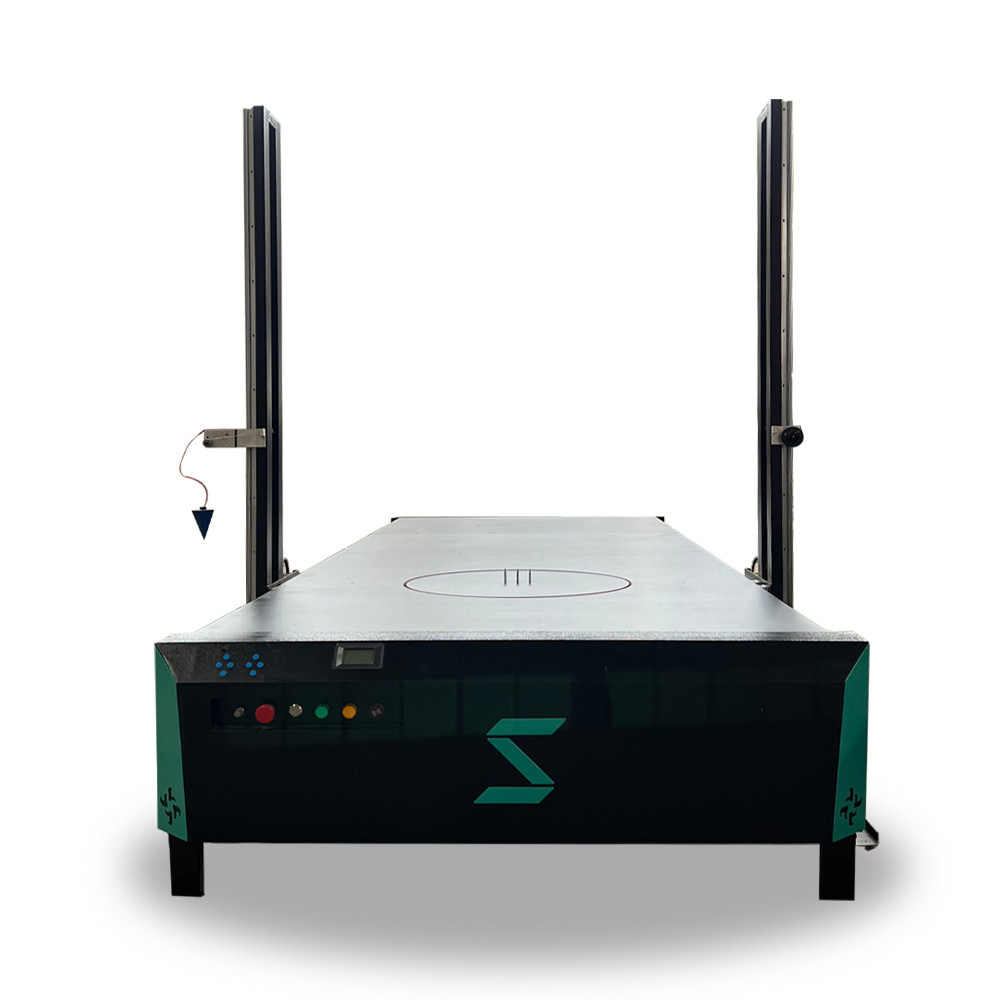

DTC-E2012 Hot Wire Foam Cutter For EPS 2D 3D Shape



Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape



Technical Data of 2D EPS cutting machine


Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting Line 0.5~1.2mm

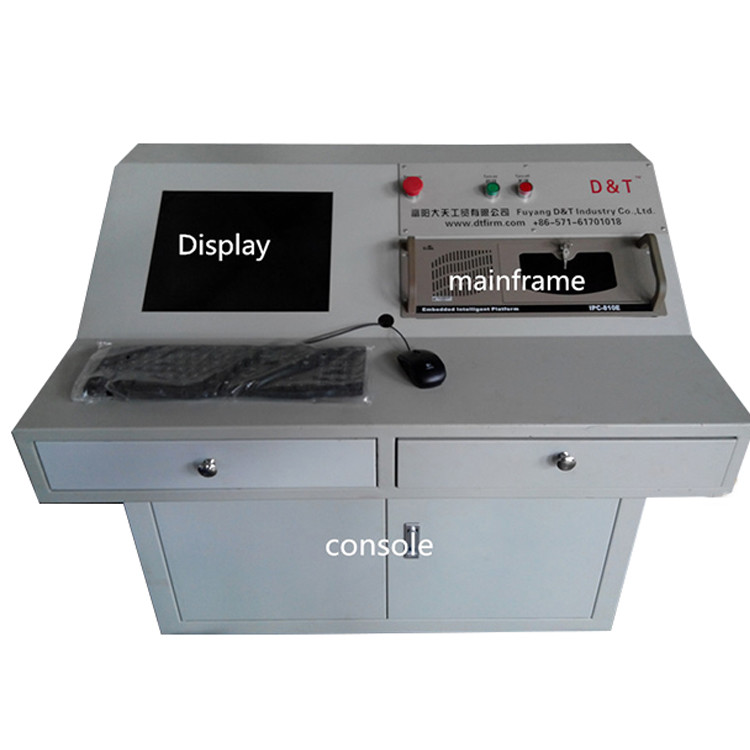

Control System Industrial Computer
Software D&T Profiler D&T Profiler D&T Profiler
Cutting Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall Weight 1200kg 1500kg 2000kg































Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 0Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 1




 Description


Suitable for: polystyrene

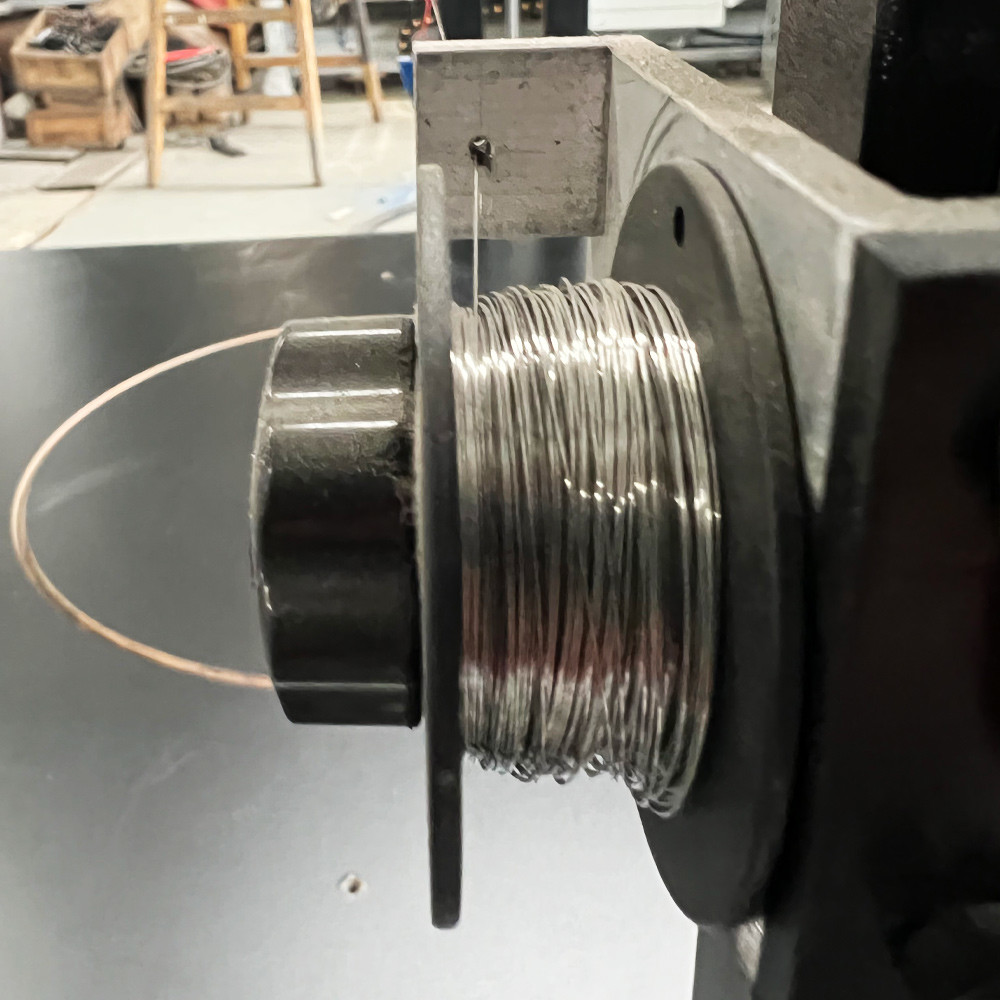

Cutting wire:Hot Wire

1. D&T series two-dimensional EPS cutting machine is a special cutting machine for complex shape EPS products.

2. This knife has one or more cutting lines to meet different production requirements. All machines are driven by the superior D&T Profiler software, which speeds up the design process and enables operators to obtain the best possible yield from foam blocks.

3. Including: when the safety door is opened, all motors stop; when an accident occurs, there are emergency buttons on the machine and the control box; there is a braking system when the wire is broken.


Frequently Asked Questions


Q1: Are you a factory?

Yes, we are a manufacturer and have been making foam machines since 2006.

Q2: Which drawing software do you use?

A2: Computer graphics software.

Q3: Can your engineer come to our factory to install the machine?

A3: Yes, of course.

Q4: Can you import DXF files from other sources?

A4: Yes. Any DXF file is acceptable.

Q5: Another express machine has dust removal and filtering functions. Does this machine also have a dust removal function?

Yes, include it.

Q6: Which countries are your products sold to?

A6: Canada, Mexico, Brazil, Australia, Singapore, Malaysia, UAE, Yemen, Qatar, Algeria, etc.

Q7: What safety control measures does the machine have?

Emergency stop on control box and machine

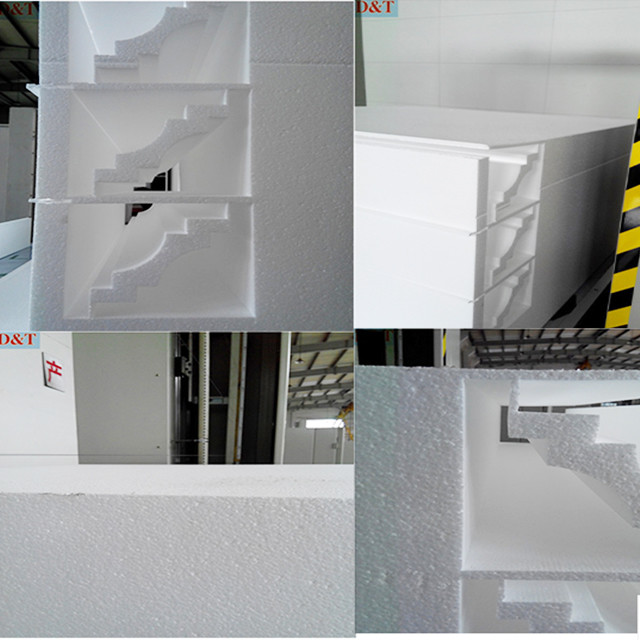

Finished Products:


  Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 2  Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 3


Customized Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 4
