Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine 380V 50HZ

1 set
MOQ
USD20000-42000/set
Price
Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine 380V 50HZ
Features Gallery Product Description Request A Quote
Features
Specifications
Overall Dimension: L4200 * W3200 * H2800 Mm
After-sales Service Provided: Engineers Available To Service Machinery Oversea
Max.Foam Block: 2500×1200×1000mm
Control System: Industrial Computer With D&T Special Profiler Software
Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min
Precision: ±0.5mm
Power: 6kw 380V 50HZ
Weight: 1800kg
Cutting Blade Length: 2300mm Should Comfirmed By Maker By Machine
Model: DTC - S2012
Product Name: 380V 50HZ Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine
Highlight:

Polyurethane Sponge Oscillating Blade Cutting Machine

,

380V 50HZ Oscillating Blade Cutter

,

Polyurethane Sponge Oscillating Blade Cutter

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-S2012
Payment & Shipping Terms
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Product Description

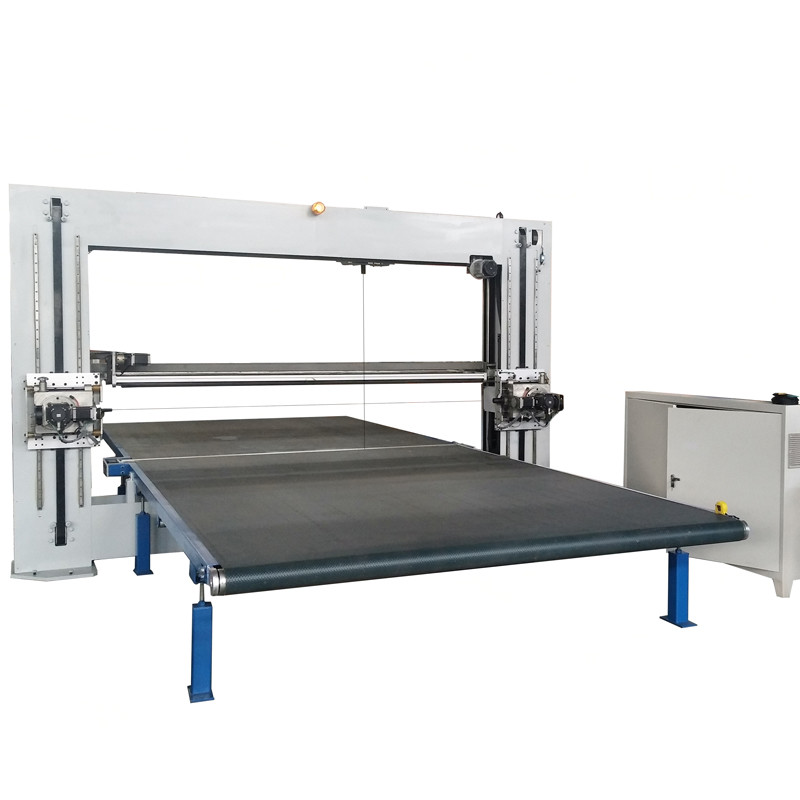

380V 50HZ Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine



Application:



Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.



Description:



Overall dimension: L4200 * W3200 * H2800 mm

Cutting Line: 3 X 0.6mm

Cutting Speed: 0~6m/min
Power: 6kw 380V 50HZ

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter

which is suitable flexible foam.

The blade cut with high speed vibrating, so that it will work faster and the product

will be smoother.

Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.

All the machines are driven by the remarkable D&T Profiler software, which speeds

up the design process and enables the operator to obtain the best yield from the foam block.







Advantage:



* PC/ Industry computer control, easy operation.

* Worktable:plat working table, moving table (could select)





Specification:



Model

DTC-S2012

Control System

Industrial Computer

Max. Product Size

2500×2000×1200mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

6kw 380V 50HZ

Weight

1800kg



Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine 380V 50HZ 0


Why choose D&T:



Since 2006, as China's leading manufacturing CNC automatic foam cutting machine,

D&T offers the best value for money foam cutters.

Every D&T product is marked as economical, eco-friendly and easy to maintain.

With 9 years of industry history, D&T has established a high reputation in South America,

Eastern Europe, Southeast Asia and Oceania.

D&T Industrial Co., Ltd. has won high praise from customers for its good service and advanced technology.



Welcome to D&T!





Software problems:



1. Q: What CAD software does the machine use?

A: For CAD software, our machines use 2004 or 2006 (you prefer)



2. Q: What is the name of the CAD software?

A: The name is Auto CAD Software



3. Q: Where are your machines mainly sold? Which countries?

A: Our main market is Russia, Middle East, Canada, USA, Australia, Mexico, Brazil, for different types



4. Q: The operating system you use is windows, right?

What kind of windows? experience? Or Windows 7?

A: Yes, it is Windows XP.

When operating, the unit does not need to be connected to the Internet

We usually use XP because of its stability. Windows 7 also works.



5. Q: Is your software licensed or illegal? ("crack")

A: Our own Profiler cutting software is developed by ourselves. is original

Q: But what about auto-cad and windows? auto-cad and windows are also original

I ask this question because our company only uses licensed software

A: Windows is licensed; AutoCAD is beta.

Our machines do not include licensed AutoCAD

If you have any drawing software, you can make DXF files.



6. Q: What is the difference between our express line CNC cutting machine and swinging machine

Blade CNC blade cutting machine.

A: First of all, fast wire cutting machine uses high speed abrasive wire and oscillating blade cutting machine

Use high-speed toothed blades.

Second, fast wire CNC cutters are more suitable for rigid or semi-rigid foams. For flexible foam materials,

A better tool is an oscillating blade CNC tool.

Third, fast-line CNC tools can also cut soft materials. But dust on soft materials

Requires additional dust granulation system, soft materials are not suitable for fast production lines

the tool itself.

7. Q: About reputation and website:

A: For the sake of reputation, we are the gold supplier of Alibaba for 8 years.

Our engineers study our machines more and make them better and better. us

Guaranteed our machines are as good as we say they are. Even though we keep the 10% guarantee until

After the machine is installed, the customer is very satisfied with our machine.

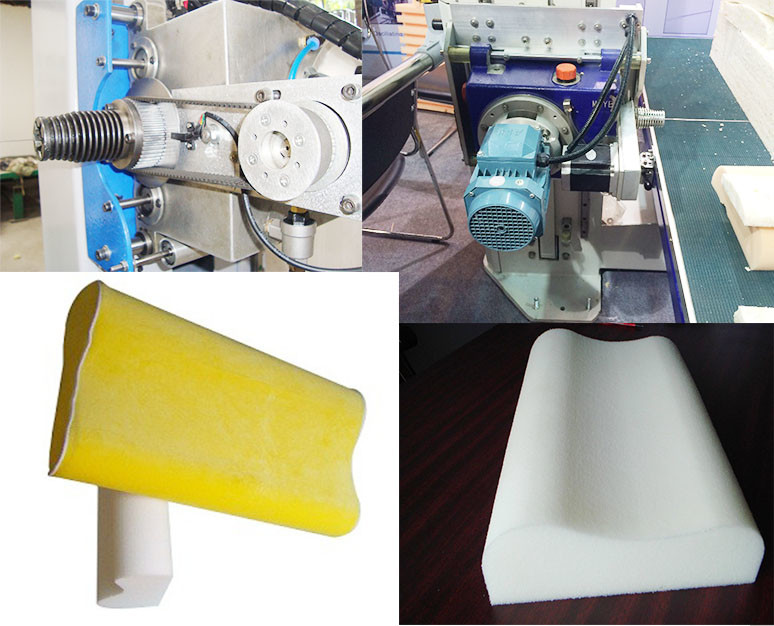

Cutting finish product:

        Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine 380V 50HZ 1Polyurethane Sponge Horizontal Oscillating Blade Cutting Machine 380V 50HZ 2
