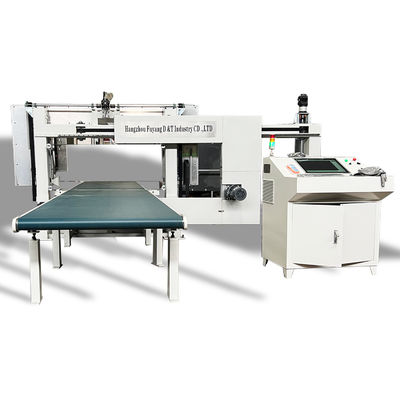

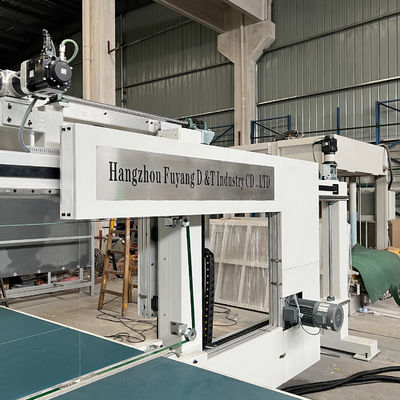

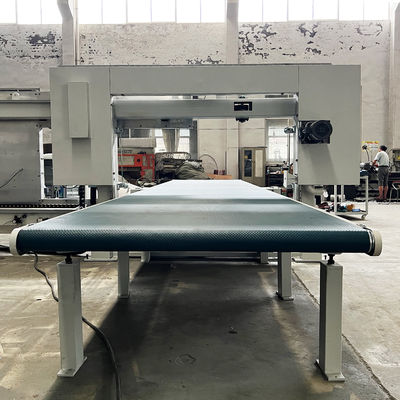

DTC-F2012 Dual Blade Fast Wire Foam Cutting Machine For EPS PE PVC EVA Phenol
Technical Specifications
| Model | DTC-F2012 | |
| Max. Block Size | 2500*2000*1200mm | |
| Control Device | Industrial Computer | |
| Computer Operation System | Windows7 | |
| Software | D&T Profiler | |
| Acceptable File Formats | DXF/DWG | |
| Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
| Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
| Cutting Wire Diameter | 0.8~2.0mm | |
| Flying Wheel Diameter | 300mm | |

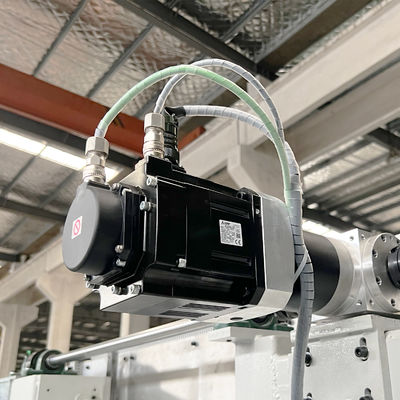

| Mainly Motor | ABB, 3kW*2pcs | |
| Running Speed of the wheel | 2860rpm | |
| Inverter | Panasonic, for 3kW motor | |
| Cutting Speed | 0~6m/min | |
| Precision | ±0.5mm | |
| Total Power | 11kW, 400/240V, 50Hz | |
| Gross Weight | 2800kg | |
| Overall Dimension | 5500*5500*2600 mm | |
1. Suitable for: soft and hard PU, EPS, PE, PVC, EVA, rock wool, phenolic foam.
2. Fast wire contour cutting machine

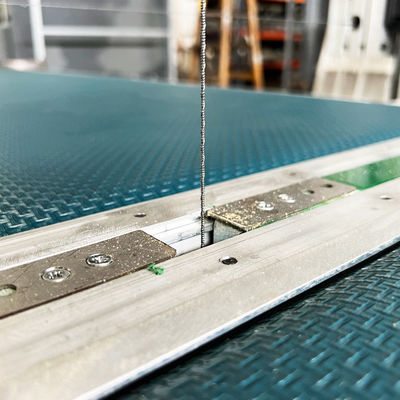

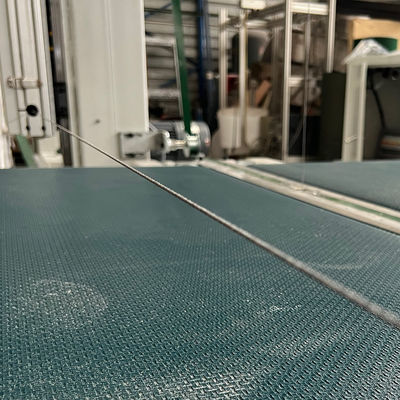

3. Cutting line: Quick cutting line
4. The D&T Fastwire Contour Cutter is a versatile machine that uses high-speed moving abrasive threads to enable it to cut complex 2Ds
A variety of rigid and soft foam shapes. These include soft and hard PU, EPS, PE, PVC, EVA, 5. Rock wool and phenolic foam.
All machines are powered by superior D&T Profiler software that speeds up the design process and enables operators to get the best yield from foam blocks.
6.Fast Wire Contour Cutter has a well-established safety system to provide accidents. Including: all motors stop when the safety door is opened;
Accident emergency buttons on the machine and control box; Braking system in case the cutting line is disconnected.
