13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape

1set
MOQ
USD3000~8000/SET
Price
13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CNC 2D EPS Cutting Machine
Type: DTC-E2012
Product Size: 2000*1300*1000mm
Cutting Line Diameter: 0.5-1.2mm

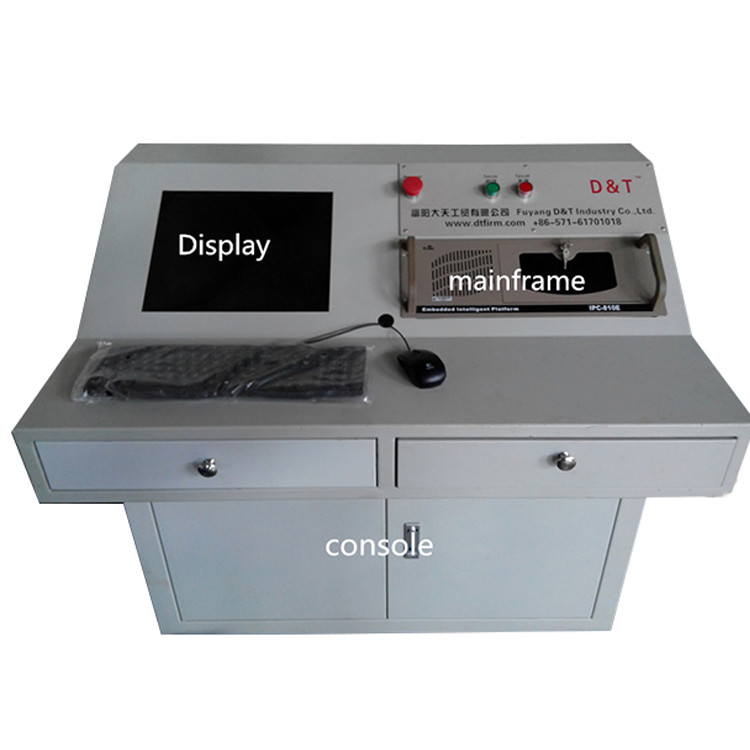

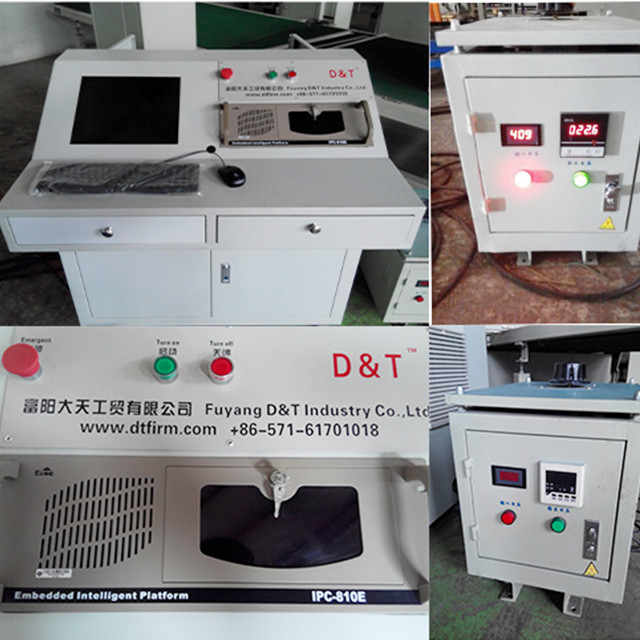

Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm
Power: 13.5kw,380v,50hz
Weight: 1200kgs
Color: As Cliebts Requirement
Name: Eps Cutting Machine
Warranty: 1 Year
Colour: Customized
Highlight:

3D Shape Cnc Hot Wire Cutter

,

Cnc Hot Wire Foam Cutter 13.5kw

,

2D Shape Cnc Hot Wire Cutter

Basic Infomation
Place of Origin: CN
Brand Name: D&T
Certification: ce
Model Number: DTC-E2012
Payment & Shipping Terms
Packaging Details: packed with pvc film into 20 container
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Product Description

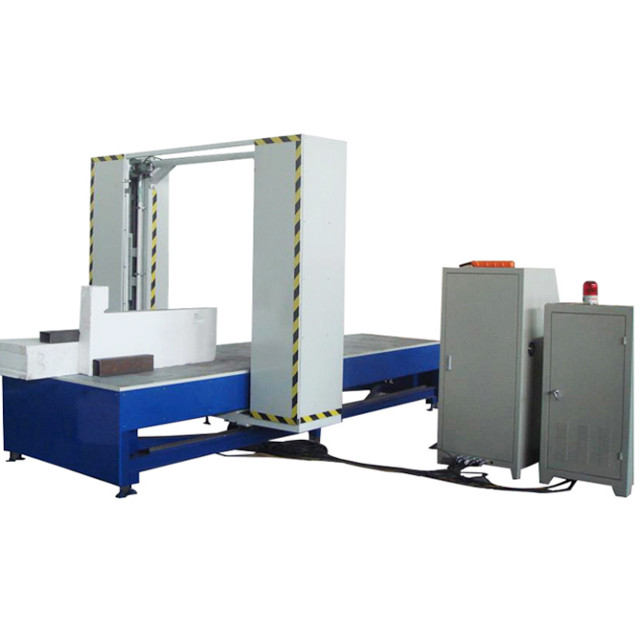

DTC-E2012 13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape



Eps Block Cutter Hot Wire Foam Cutting CNC Machine For EPS 2D Shape



Technical Data of 2D EPS cutting machine


Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting Line 0.5~1.2mm
Control System Industrial Computer
Software D&T Profiler D&T Profiler D&T Profiler
Cutting Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall Weight 1200kg 1500kg 2000kg

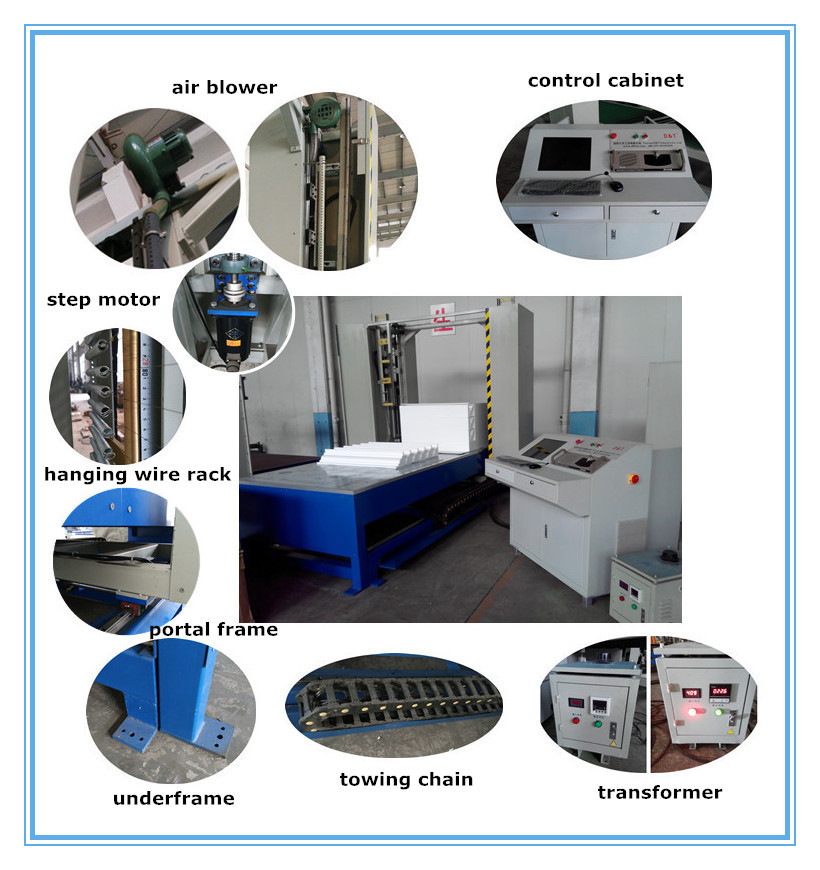

13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 013.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 1





Description

Suitable for: polystyrene

Cutting wire:Hot Wire

1. D&T series two-dimensional EPS cutting machine is a special cutting machine for complex shape EPS products.

2. This knife has one or more cutting lines to meet different production requirements. All machines are driven by the superior D&T Profiler software, which speeds up the design process and enables operators to obtain the best possible yield from foam blocks.

3. Including: when the safety door is opened, all motors stop; when an accident occurs, there are emergency buttons on the machine and the control box; there is a braking system when the wire is broken.


Frequently Asked Questions


Q1: Are you a factory?

Yes, we are a manufacturer and have been making foam machines since 2006.

Q2: Which drawing software do you use?

A2: Computer graphics software.

Q3: Can your engineer come to our factory to install the machine?

A3: Yes, of course.

Q4: Can you import DXF files from other sources?

A4: Yes. Any DXF file is acceptable.

Q5: Another express machine has dust removal and filtering functions. Does this machine also have a dust removal function?

Yes, include it.

Q6: Which countries are your products sold to?

A6: Canada, Mexico, Brazil, Australia, Singapore, Malaysia, UAE, Yemen, Qatar, Algeria, etc.

Q7: What safety control measures does the machine have?

Emergency stop on control box and machine




Finished Products:


  13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 2  13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 3


13.5kw Cnc Hot Wire Foam Cutter For EPS 2D / 3D Shape 4
