Fast Wire PE Foam Sheet Machine DTC-F1212 0 - 6m/Min

1 set
MOQ
USD27000-30000 /PC
Price
Fast Wire PE Foam Sheet Machine DTC-F1212 0 - 6m/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Block Size: 2500*1200*1200mm( Customized)
Material Can Be Cut: Rigid PU,Pir,EPS,rock Wool,ets.
Cutting Wire Length: ~8500mm (Should Be Confirmed By Maker By Machine)
Flying Wheel Diameter: 300 Mm/ 400 Mm
Mainly Motor: ABB, 3kW
Running Speed Of The Wheel: 2860rpm
Cutting Speed: 0 ~ 6m/min
Precision: ± 0.5mm
Highlight:

Fast Wire PE Foam Machine

,

Fast Wire Cutter 6m/min

,

Fast Wire PE Foam Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-F1212
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 SETS PER MONTH
Product Description

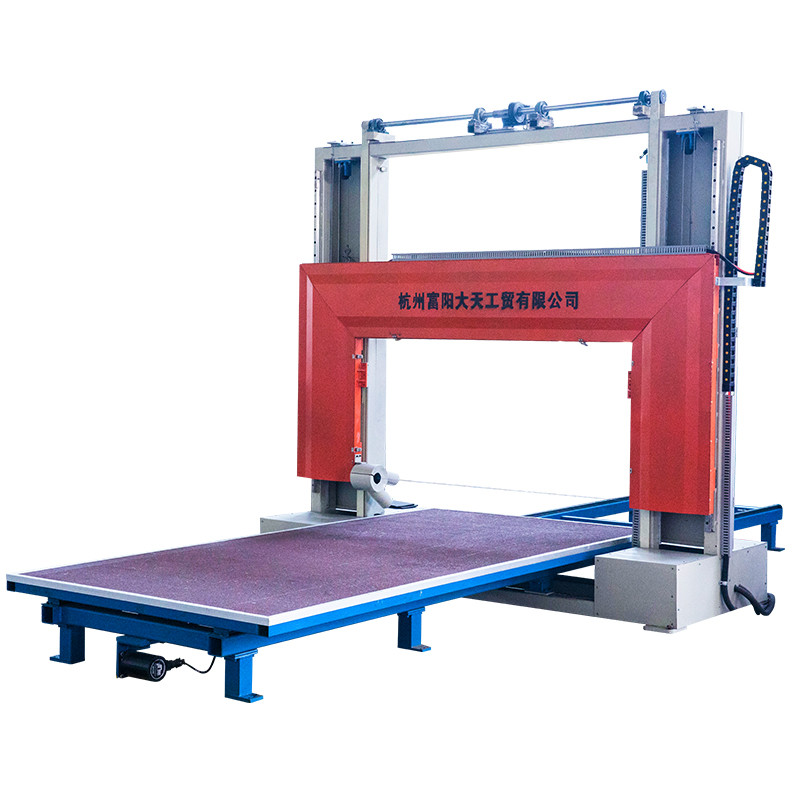

Fast Wire PE Foam Sheet Machine Fast Wire Foam Cutting Machine DTC-F1212



Fast wire mesh PE foam board machine with hot wire foam cutter





Fast Wire Contour Cutter is a high-speed abrasive wire. At high speed, the material will be ground

Dust and vacuum fans. Computer-controlled conveyor and cutter roll operation

You draw on CAD.

The main function of high-speed wire grinder





The heating switch is controlled by our D&T software.

Hot wire power: 2kw






Model DTC-F1212
Max. Block Size Length 2500mm(~4 feet)
Width 1200mm(~3 feet)
Height 1200mm(~3 feet)
Material can be Cut

Rigid PU

PIR

EPS

Miner Wool

Polypropylene

Honeycomb Paperboard

……

Control Device Industrial Computer
Computer Operation System Windows 7
Software D&T Profiler
Acceptable File Formats DXF/DWG
Number of Cutting Wire One
Cutting Wire Length ~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter 1.3~1.5mm

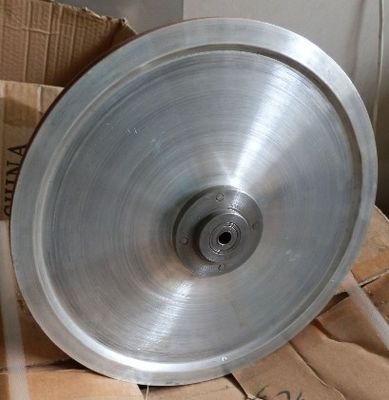

Flying Wheel Diameter 300 mm/ 400 mm

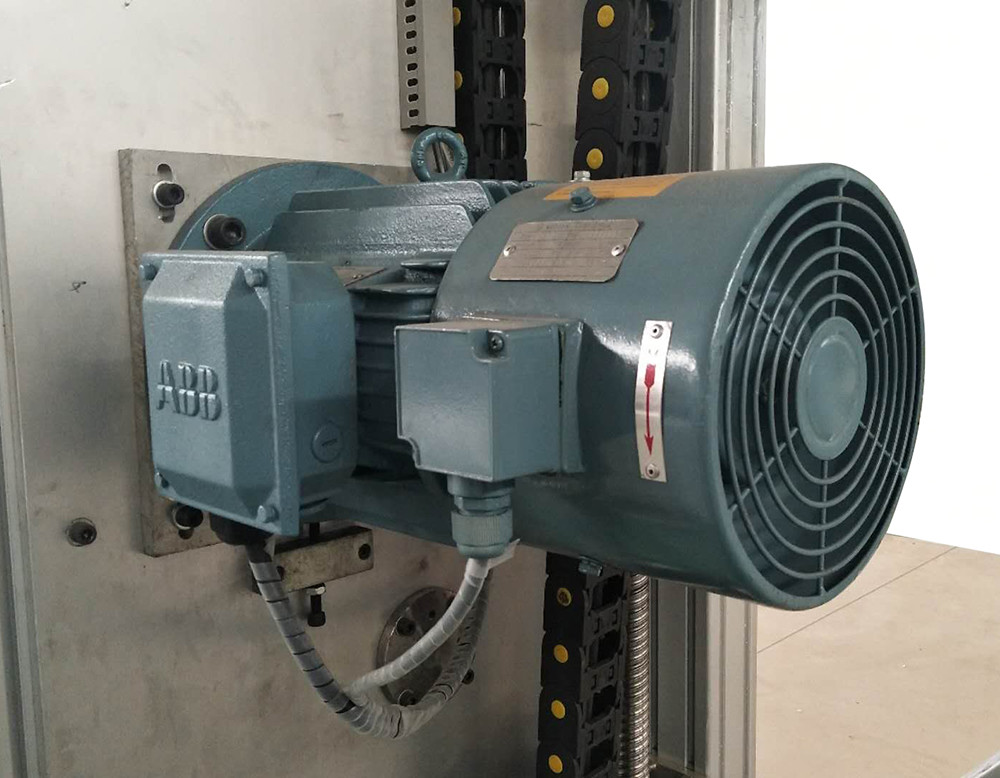

Mainly Motor ABB, 3kW
Running Speed of the wheel 2860rpm
Inverter Panasonic, for 3kW motor
Cutting Speed 0 ~ 6m/min
Precision ± 0.5mm
Total Power ~5.5kW, 230V, 60Hz
Gross Weight 1200kg
Overall Dimension L6200×W2400×H2380mm
