DTC Vertical Floral Foam Cutting Machine Computer Numerical

PLC Control Floral Foam Cutting Machine

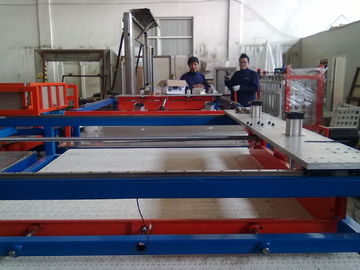

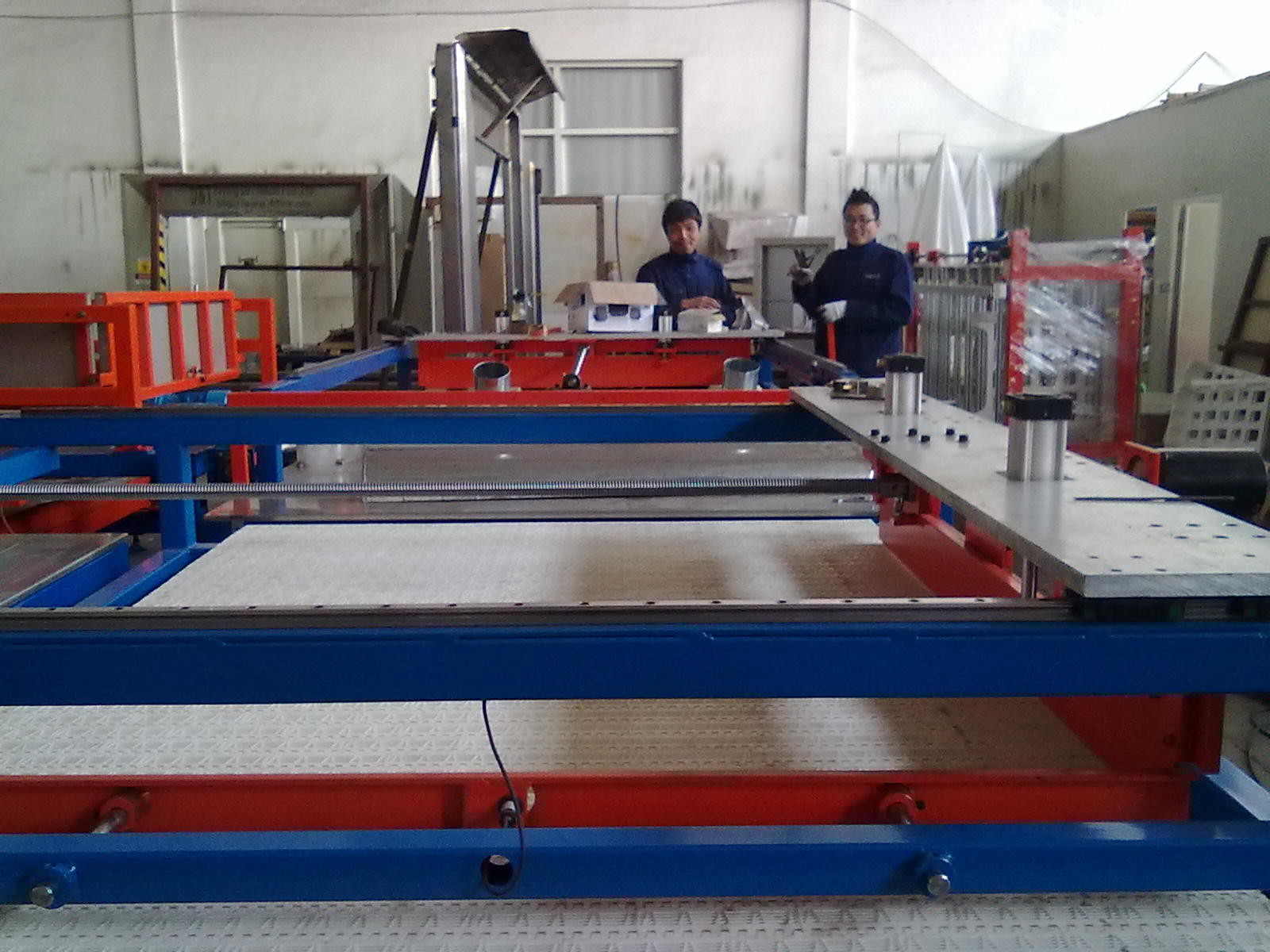

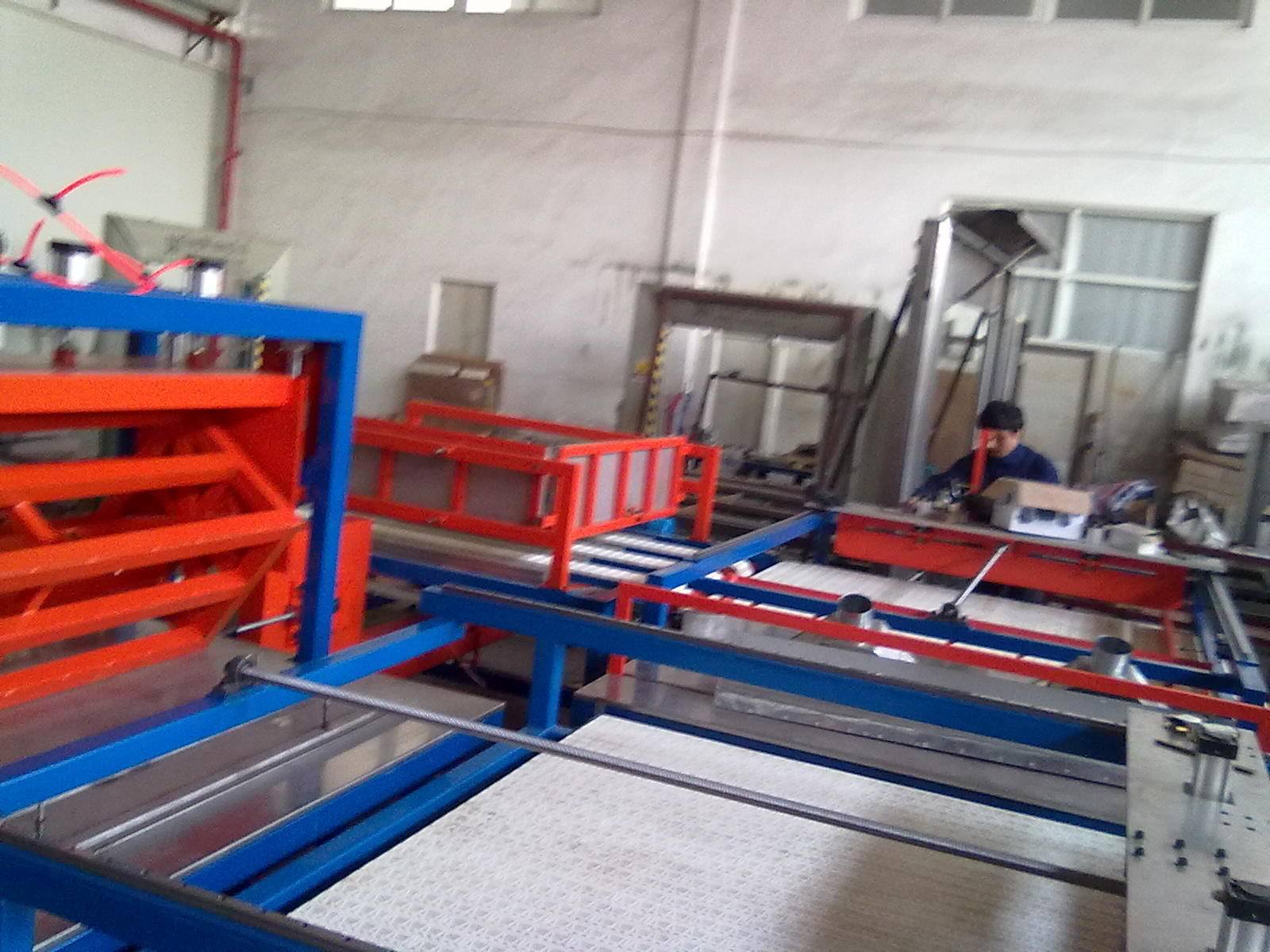

The entire cutline is structured as follows:

A Belt Conveyor (1) Length 2500mm, Width 1200 For transporting floral foam blocks

After cutting. Powered by an AC motor. There are two pneumatic retention systems.

Mobile horizontal cutting station (2) for horizontal cutting. used to cut foam

Requested 80 mm thick block. The entire horizontal cutting frame is driven

By inverter-driven AC motor.

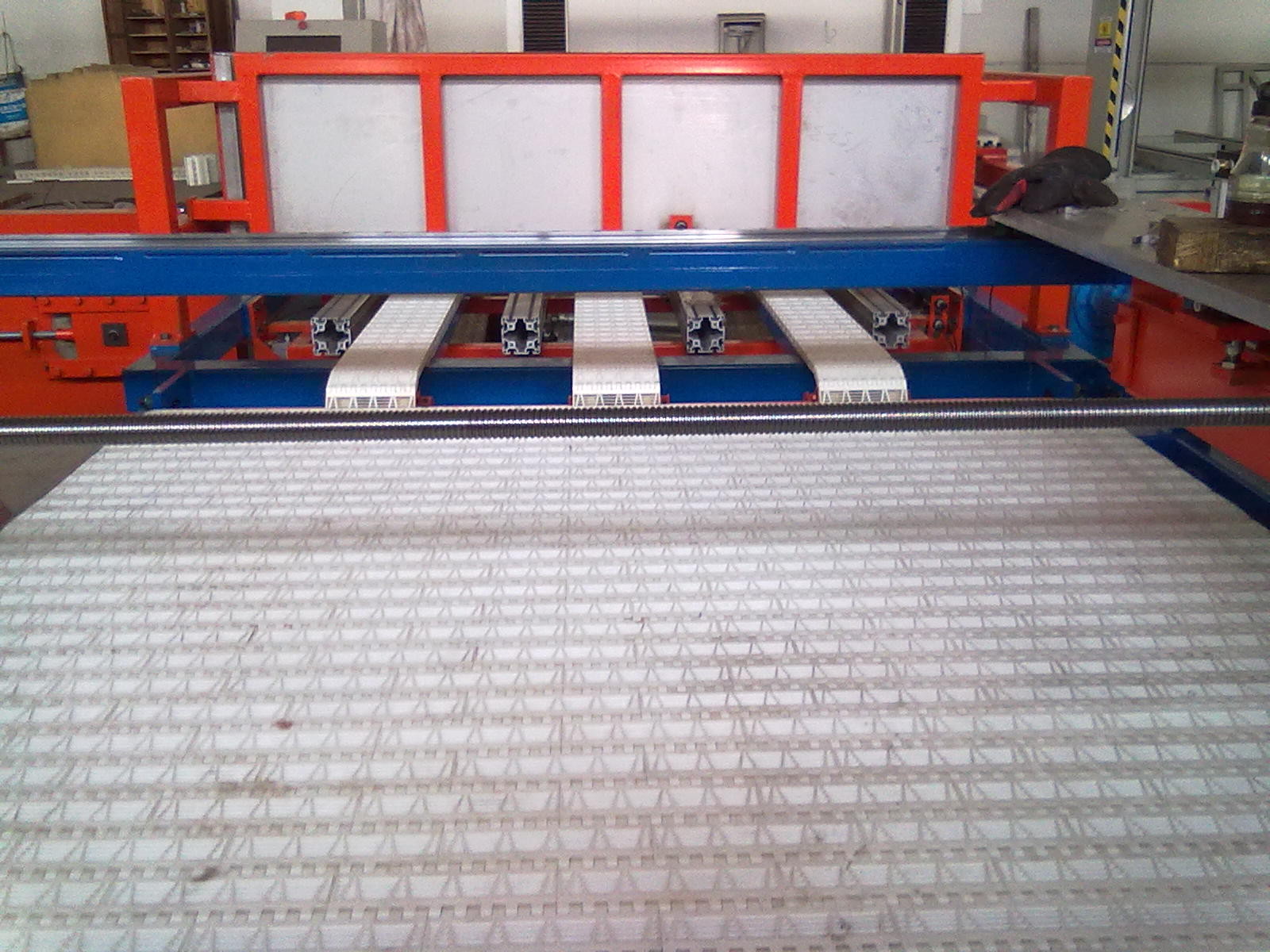

Belt conveyor (3) For transporting floral foam blocks with a length of 1800 mm and a width of 1200 mm.

Keep the same speed and movement as the belt conveyor in (1).

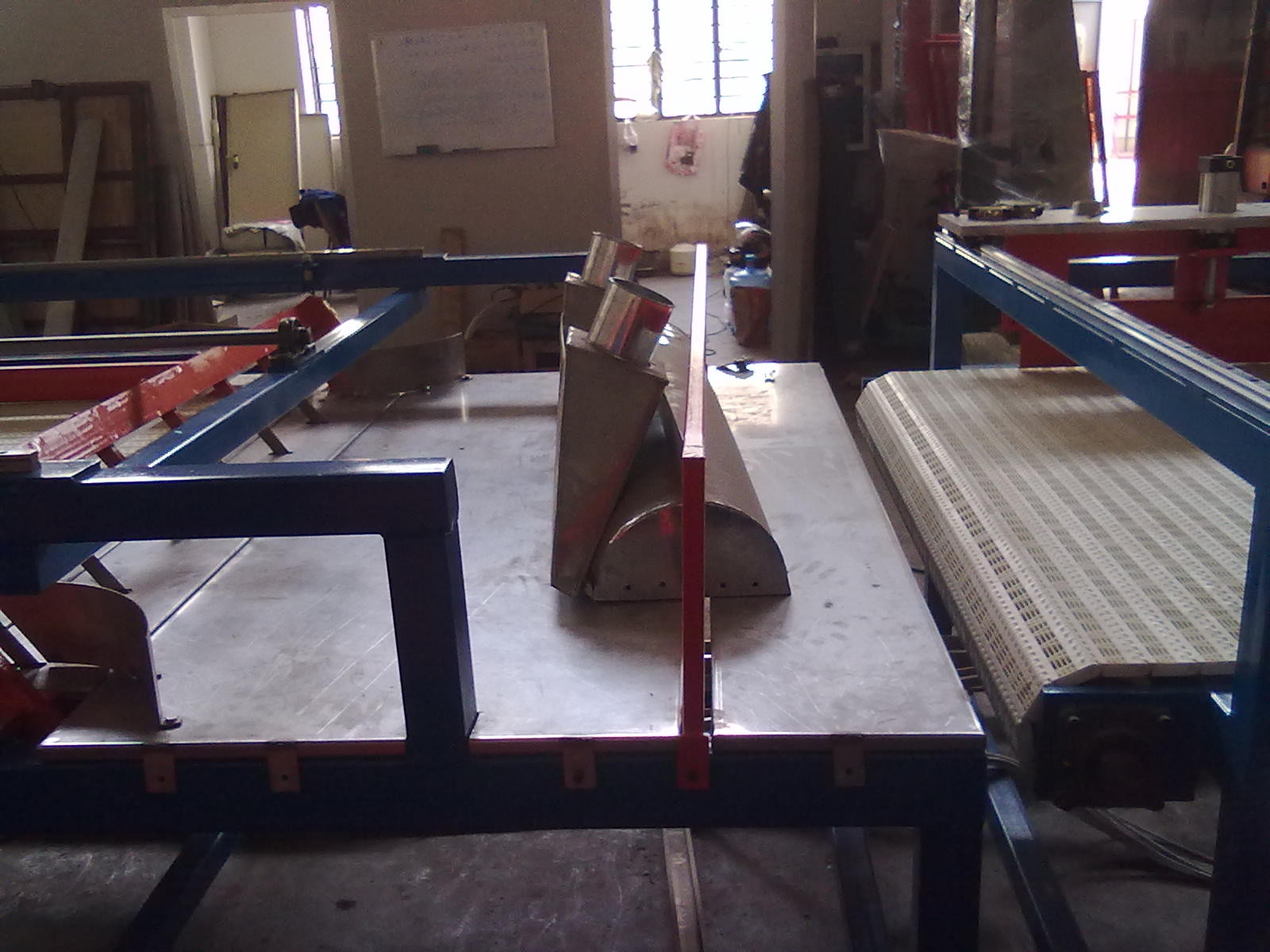

Vertical cutting station (4) for vertical cutting. Can cut floral foam

Board 1450mm*1450mm*80mm to 1450mm*230mm*80mm, trimmed on both sides.

Equipped with a dedust system that absorbs dust during cutting.

Conveyor belt (5) for conveying floral foam blocks 1800 mm long and 1500 mm wide.

Powered by an AC motor.

Vertical cutting station (6) for vertical cutting. You can cut floral foam board

1450mm*230mm*80mm becomes 110mm*230mm*80mm with two sides trimmed.

Equipped with a dedust system that absorbs dust during cutting.

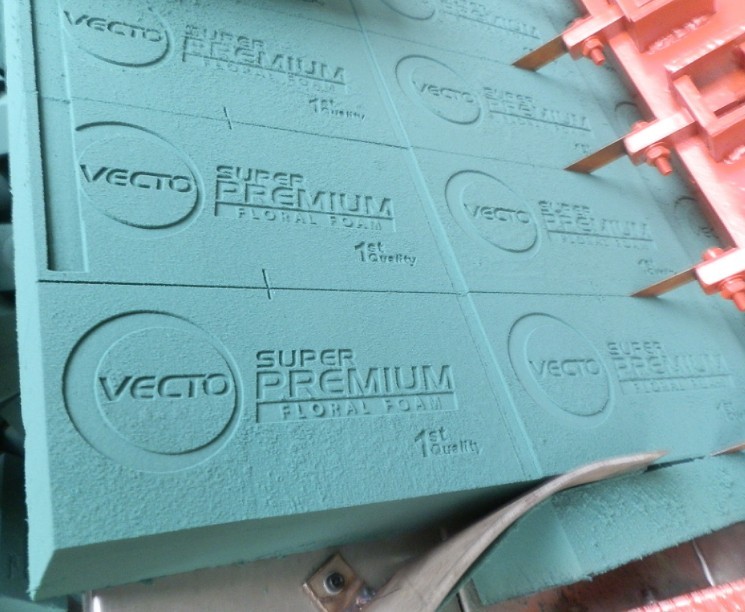

Pneumatic marking system (7) for stamp marks on the final product.

The logo type is automatically pushed down.

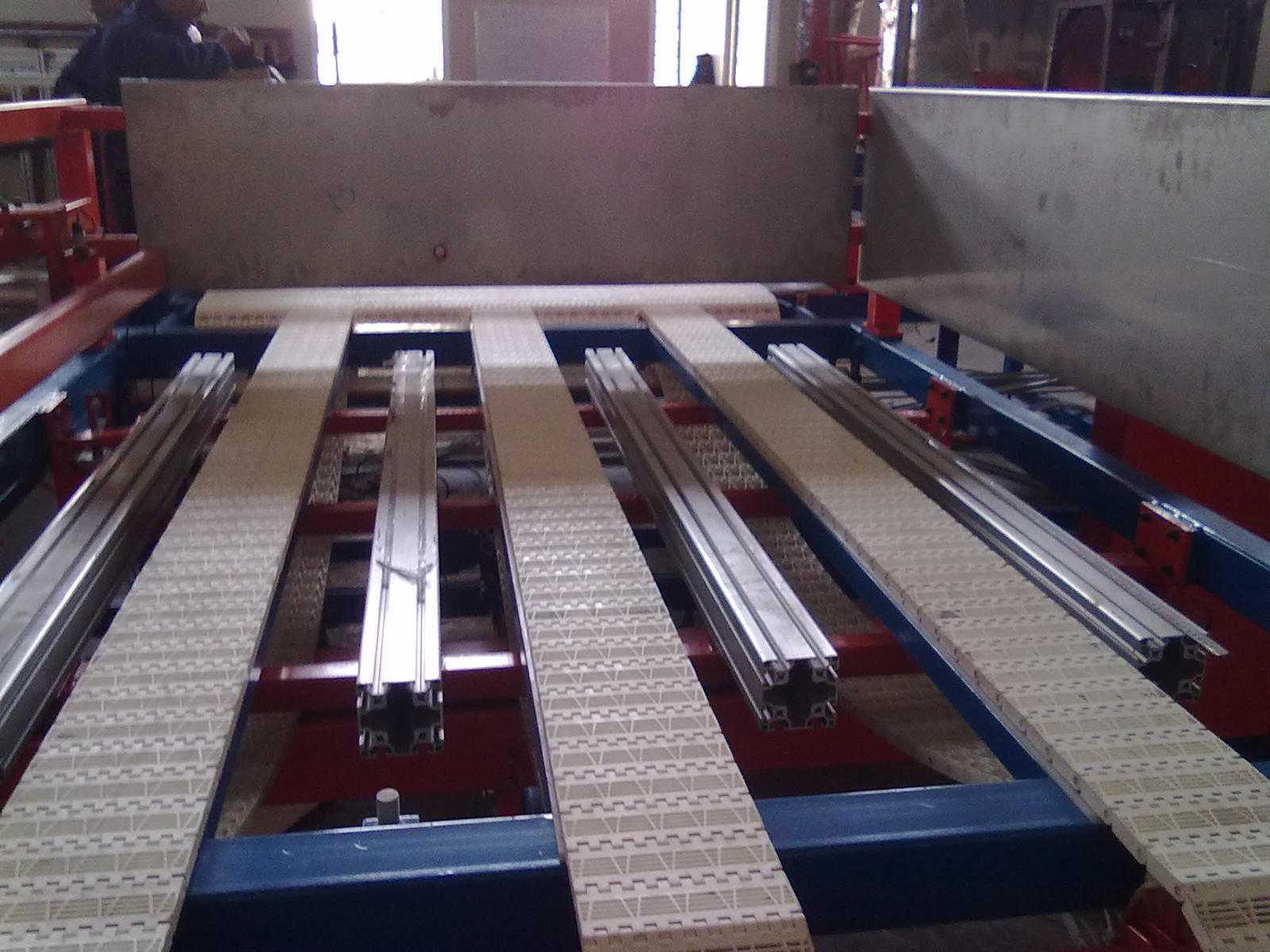

Belt conveyors (8 units) that carry out final products measuring 110mm x 230mm x 80mm.

packing:

Packing has a professional team to load the cargo. again,

We have long-term cooperation with experienced forwarders

of career. Don't worry. Save money and be safe.

After-sales service:

Our engineers are available overseas for tuning installations, commissioning and training.

USD 60 per person per day is required in addition to the cost of flight and appropriate accommodation.

additional fee.

2. Lifetime free maintenance.

3. Free training course in our factory.

4. 24/7 online service, free technical support.

5. The machine has been calibrated and tested before shipping.

Warranty: 12 months limited warranty from date of delivery (excluding wear parts).

You are responsible for shipping costs for replacement parts during the warranty period.

Paypent terms: 30% advance payment by T/T when signing the contract

70% coverage by confirmed irrevocable sight L/C

Corporate information

Fuyang D&T Industry Co., Ltd. We specialize in manufacturing CNC foam cutting machines.

Polyurethane cutting machine, quilting machine, foam related

assist equipment.

Through the research of our engineers, our cutting machine is

Popularization and automation of CAD, high efficiency, high precision,

Easy to operate. We always put our customers first and do our best

We are economical, technical and

trade cooperation with you.

Products: high speed wire cutting machine, pu cutting machine, hot wire cutting machine, eps

cutting machine, quilting machine, etc.
