Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-F2012 |
Minimum Order Quantity: | 1set |
Price: | USD 18000-37000 /PC |
Packaging Details: | WOODEN BOX |
Delivery Time: | 30 WORK DAYS |
Payment Terms: | L/C, T/T, Western Union.paypal |
Supply Ability: | 20 SETS PER MONTH |
Cutting Wire Diameter: | 0.8~2.0mm | Cutting Wire Length: | ~8500mm |
---|---|---|---|
Max. Block Size: | 2500mm*1225mm*1000mm | Material Can Be Cut: | Rock Wool Miner Wool Flexible |
Number Of Cutting Wire: | Dual Wire (Horizonal +Vertical) | Flying Wheel Diameter: | 300mm |
Mainly Motor: | ABB, 3kW*2pcs | Running Speed Of The Wheel: | 2860rpm |
Cutting Speed: | 0~6m/min | ||
High Light: | Polyurethane Rigid Foam Cutting Machine,CNC Fast Wire Foam Cutting Machine,2.0mm Fast Wire Foam Cutting Machine |

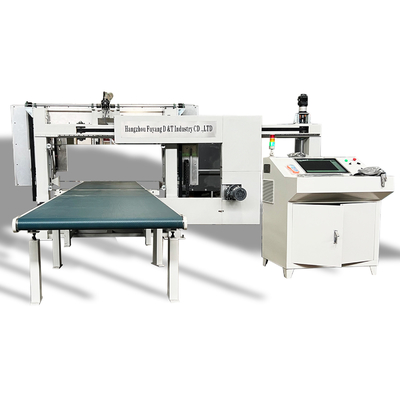

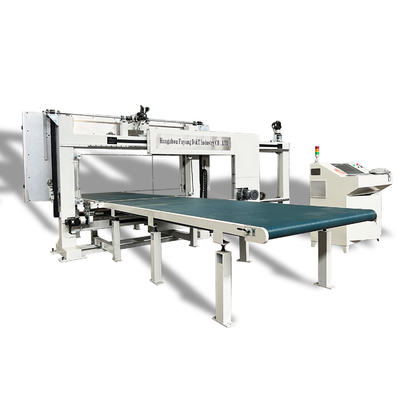

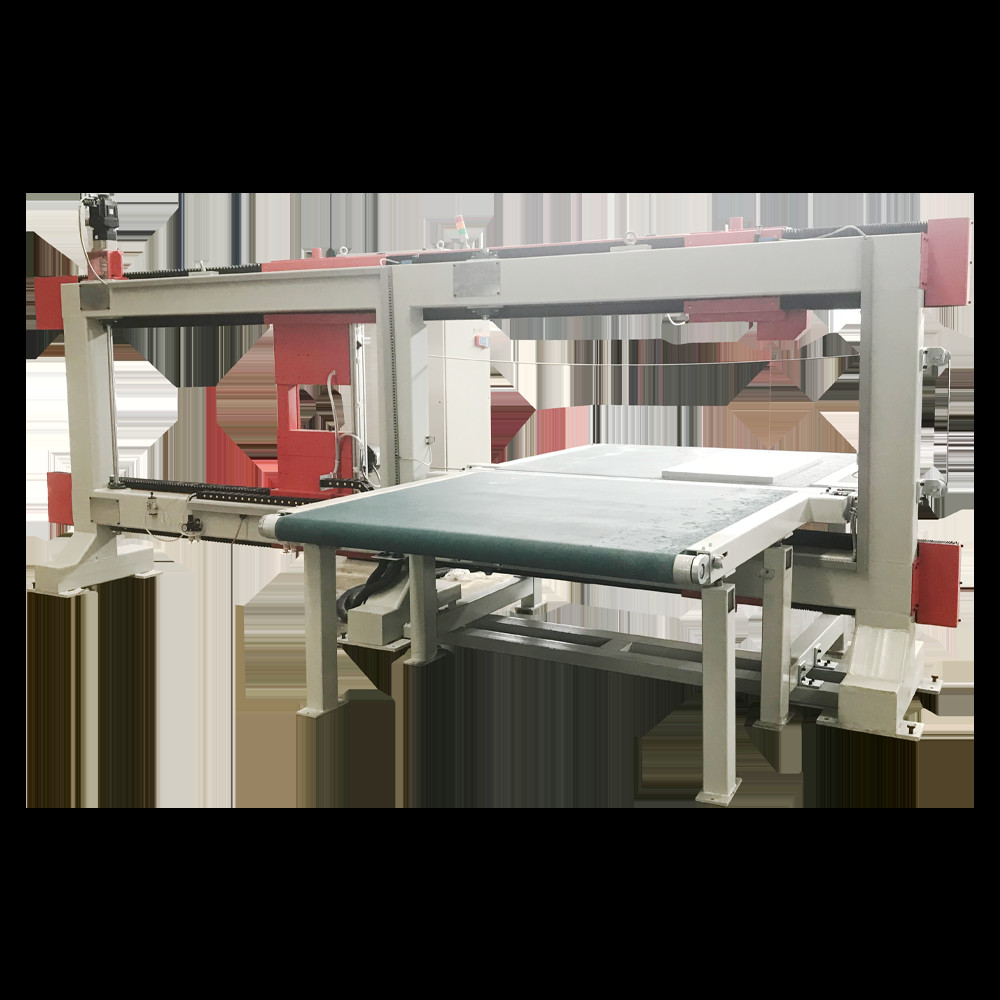

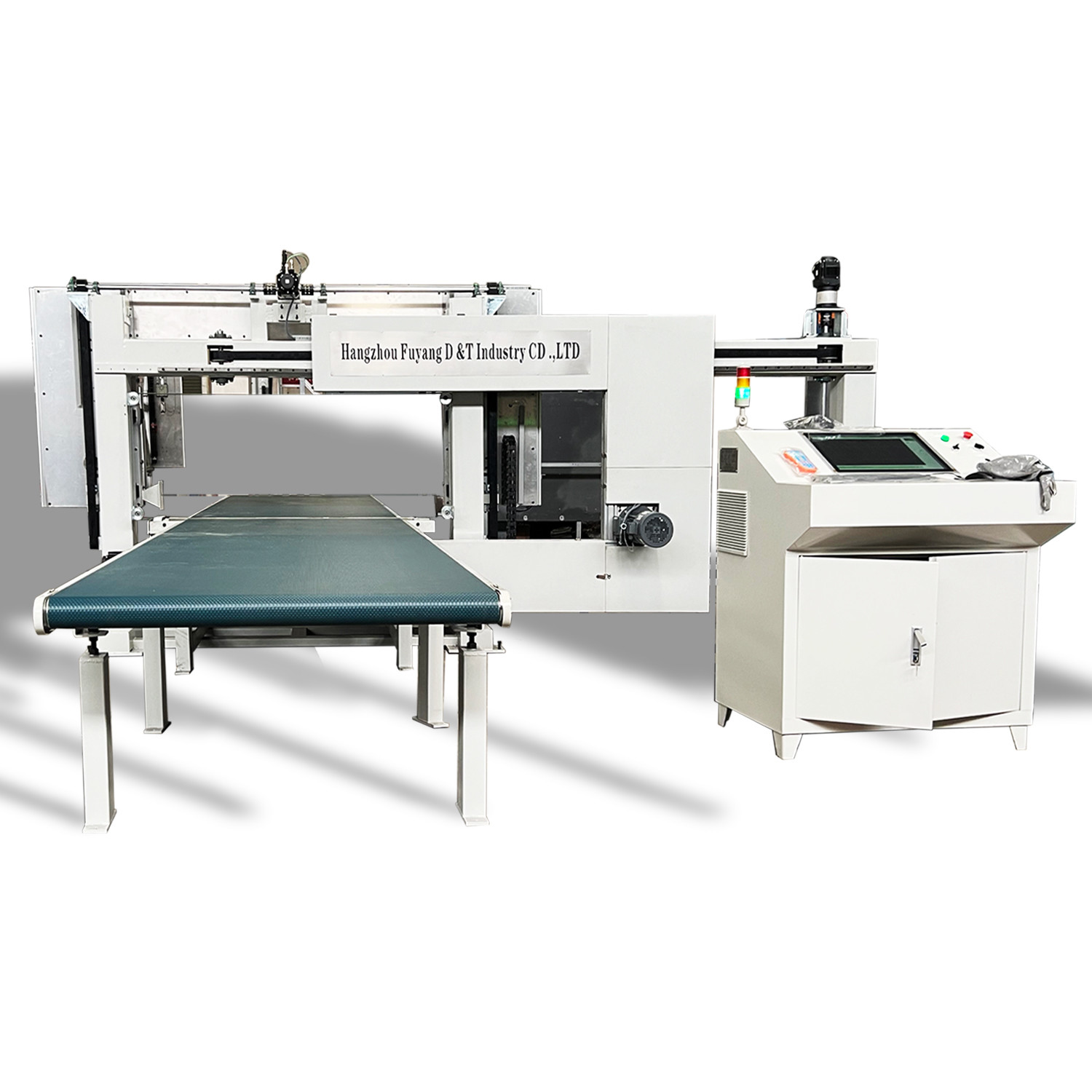

DTC-F2012 D&T CNC Dual Fast Wire Polyurethane Rigid Foam Cutting Machine
Technical Specifications
Model | DTC-F2012 | |
Max. Block Size | Length | 2500mm |
Width | 1225mm | |
Height | 1000mm | |
Material can be Cut |
Rock Wool Miner Wool Flexible Polyurethane Rigid Polyurethane Foamglass Polypropylene Honeycomb Paperboard Carton …… |
|
Control Device | Industrial Computer | |
Computer Operation System | Windows7 | |
Software | D&T Profiler | |
Acceptable File Formats | DXF/DWG | |
Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
Cutting Wire Diameter | 0.8~2.0mm | |
Flying Wheel Diameter | 300mm | |
Mainly Motor | ABB, 3kW*2pcs | |
Running Speed of the wheel | 2860rpm | |
Inverter | Panasonic, for 3kW motor | |
Cutting Speed | 0~6m/min | |
Precision | ±0.5mm | |
Total Power | 11kW, 400/240V, 50Hz | |
Gross Weight | 2800kg | |
Overall Dimension | 5500*5500*2600 mm |
Applications: flexible and rigid PU, EPS, PE, PVC, EVA, rockwool, phenolic foam.
fast wire contour cutter
Cutting line: high speed cutting wire
The D&T Fast wire Contour Cutter is a versatile machine capable of complex 2D cutting using a fast moving abrasive wire.
Shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, rockwool and phenolic foams.
All machines are driven by the excellent D&T Profiler software, speeding up the design process and allowing operators to
Best yield from foam blocks.
The Fast Wire Contour Cutter has a perfect safety system to prevent accidents. All motors stop when the safety door is opened.
Emergency button on both machine and control box for accidents. Braking system when the line breaks.
