Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | China |
|---|---|
| Brand Name: | D&T |
| Certification: | CE |
| Model Number: | DTC-F1212 |
| Minimum Order Quantity: | 1 set |
| Price: | USD27000-30000 /PC |
| Packaging Details: | WOODEN BOX |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15 SETS PER MONTH |
| Max. Block Size: | 2500*1200*1200mm( Customized) | Material Can Be Cut: | Rigid PU,Pir,EPS,rock Wool,ets. |
|---|---|---|---|
| Flying Wheel Diameter: | 300 Mm/ 400 Mm | Mainly Motor: | ABB, 3kW |
| Running Speed Of The Wheel: | 2860rpm | Cutting Speed: | 0 ~ 6m/min |
| Precision: | ± 0.5mm | ||
| Highlight: | Rigid Rockwool PU Foam Cutting Machine,400 mm PU Foam Cutting Machine,3kW PU Foam Cutting Machine |
||

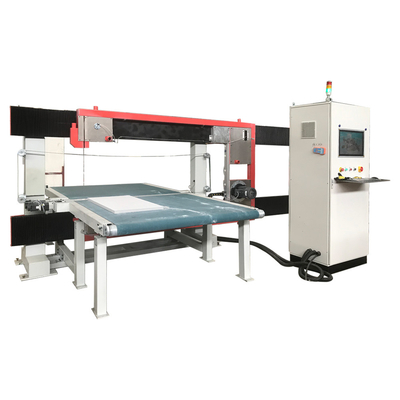

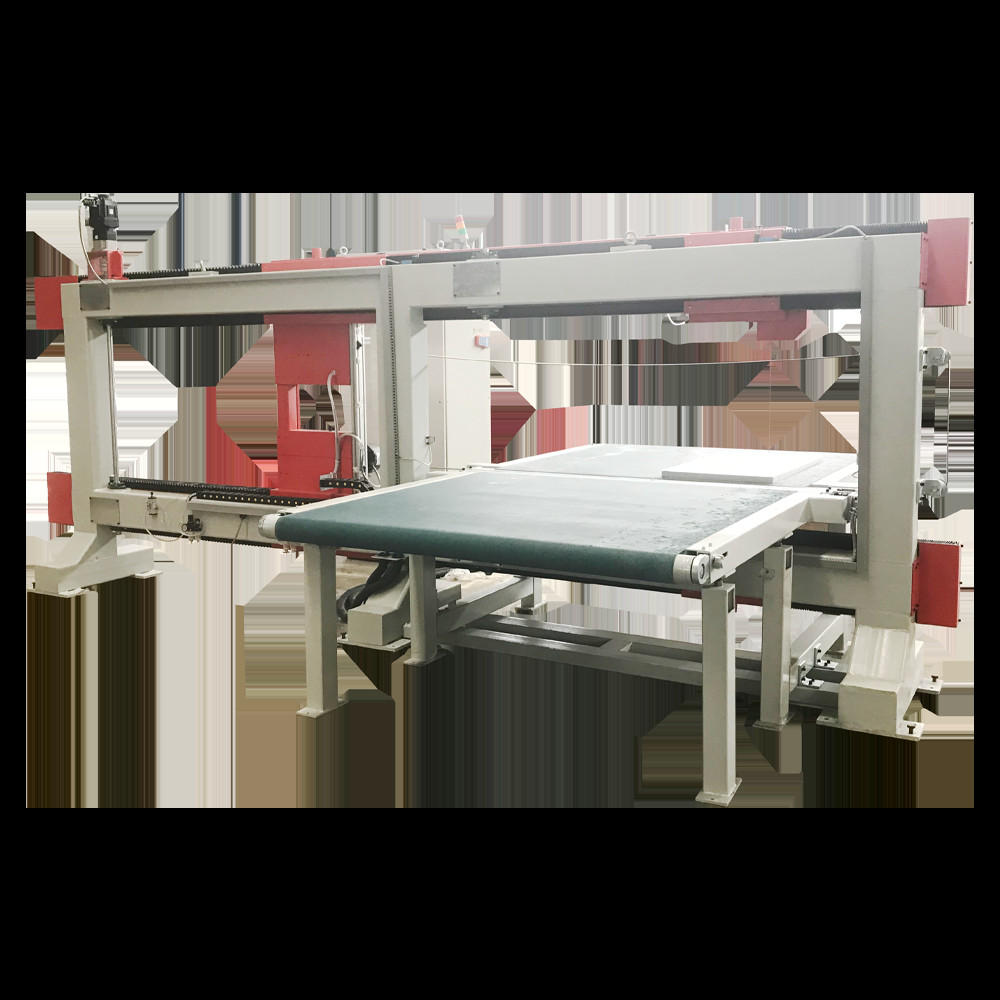

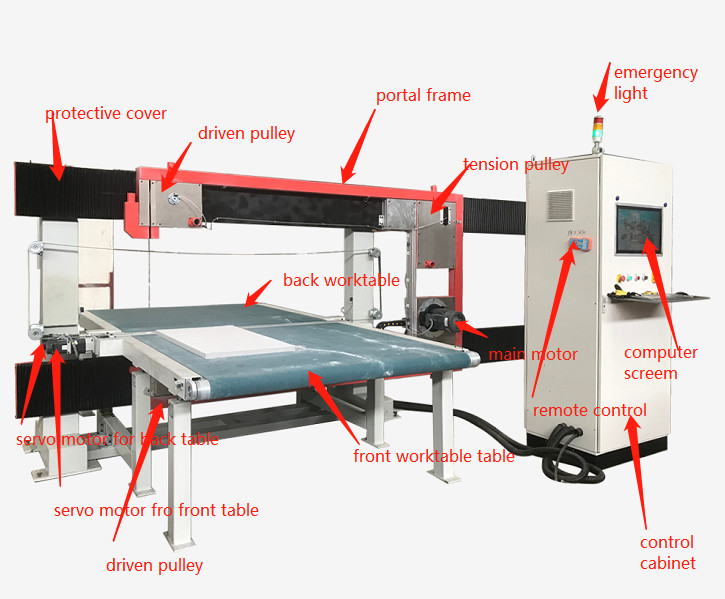

DTC-F1212 Rockwool Fast wire Dual blade Pu Foam Cutting Machine
Fast Wire Contour Cutter is a high speed grinding wire. Grinding material at high speed
For powder/adsorption dust blower. Computer control of conveyor belts and cutting rollers,
Draw with CAD.
Main Features of High Speed Abrasive Wire Machine
| Model | DTC-F1212 | |
| Max. Block Size | Length | 2500mm(~4 feet) |
| Width | 1200mm(~3 feet) | |
| Height | 1200mm(~3 feet) | |

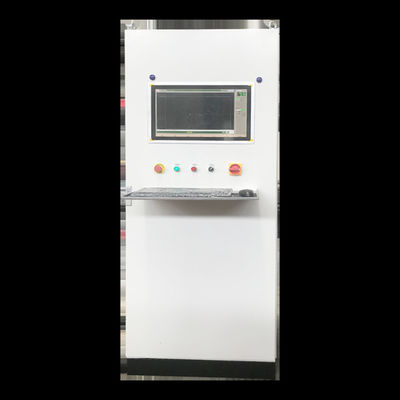

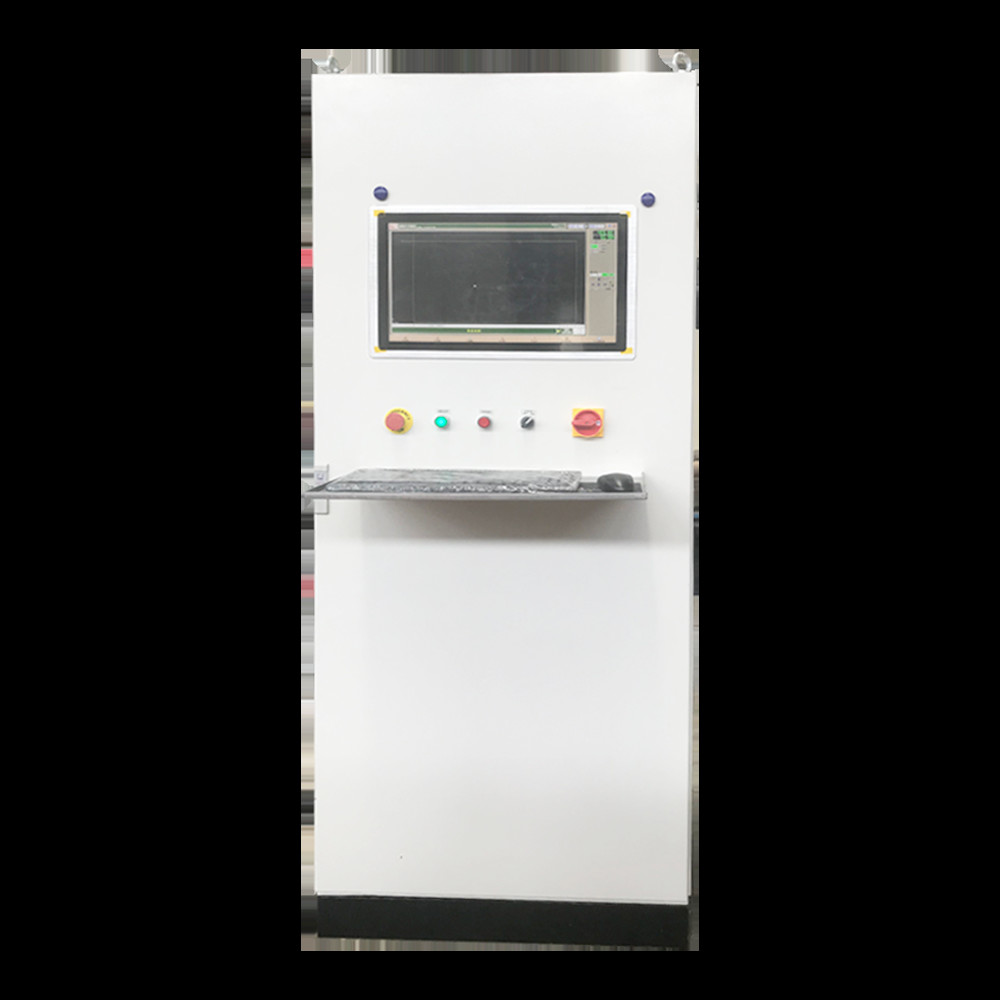

| Control Device | Industrial Computer | |
| Computer Operation System | Windows 7 | |
| Software | D&T Profiler | |
| Acceptable File Formats | DXF/DWG | |
| Number of Cutting Wire | One | |
| Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
| Cutting Wire Diameter | 1.3~1.5mm | |
| Flying Wheel Diameter | 300 mm/ 400 mm | |

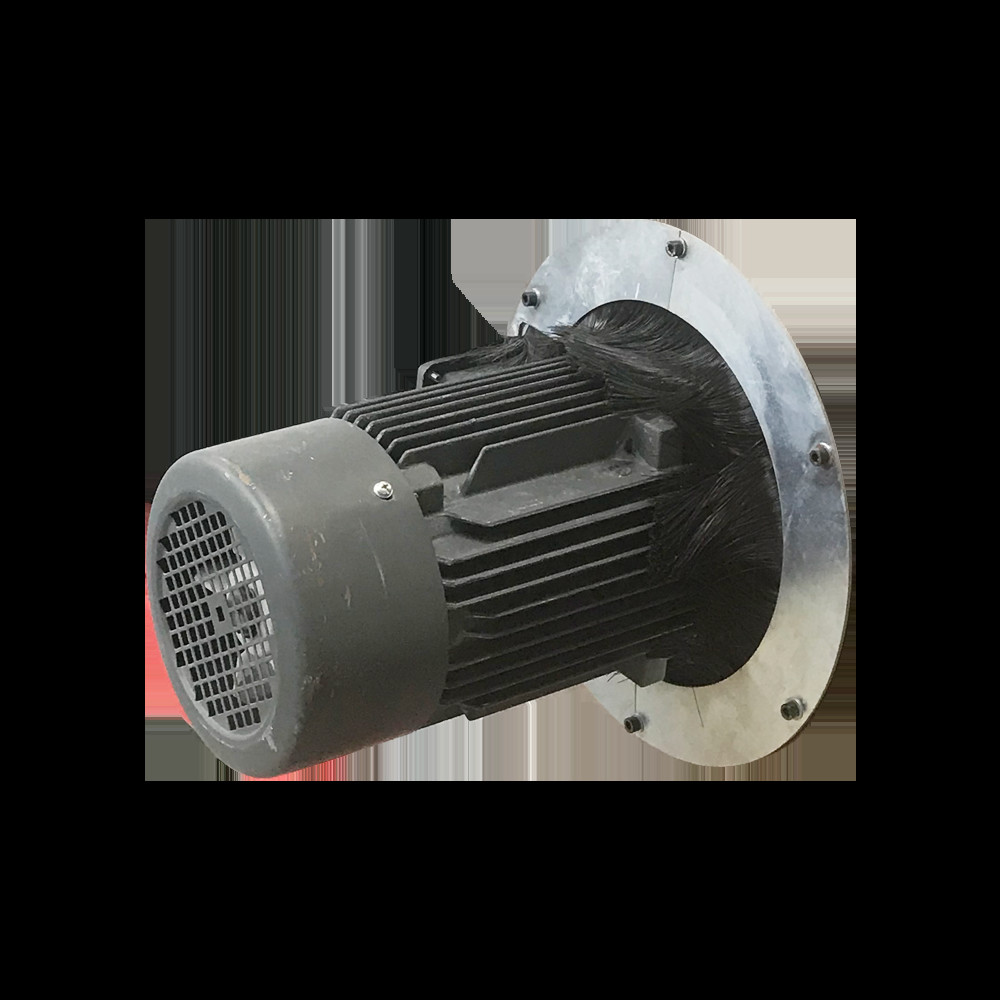

| Mainly Motor | ABB, 3kW | |
| Running Speed of the wheel | 2860rpm | |
| Inverter | Panasonic, for 3kW motor | |
| Cutting Speed | 0 ~ 6m/min | |
| Precision | ± 0.5mm | |
| Total Power | ~5.5kW, 230V, 60Hz | |
| Gross Weight | 1200kg | |
| Overall Dimension | L6200×W2400×H2380mm | |
