DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision

1 Set
MOQ
USD 10000 - 50000 / set
Price
DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Wire Diameter: 0.8~2.0mm
Cutting Wire Length: ~8500mm
Max. Block Size: 2500mm*1225mm*1000mm
Material Can Be Cut: Rock Wool Miner Wool Flexible
Number Of Cutting Wire: Dual Wire (Horizonal +Vertical)
Flying Wheel Diameter: 300mm
Mainly Motor: ABB, 3kW*2pcs
Running Speed Of The Wheel: 2860rpm
Colour: Customized
Product Name: DTC-FK2012 CNC 3d High Precision Dual Wire Blade Foam Cutting Machine
Highlight:

CNC Foam Cutting Machine High Precision

,

Dual Wire Blade Foam Cutter 2.0mm

,

8500mm PU Foam Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-FK2012
Payment & Shipping Terms
Packaging Details: Film + wooden box
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 20 sets / month
Product Description

DTC-FK2012 CNC 3d High precision Dual Wire Blade Foam Cutting Machine



1. Applicable objects: soft and hard PU, EPS, PE, PVC, EVA, rock wool, phenolic foam.

2. Cutting line: high speed cutting line


3. D&T Fastwire Contour Cutter is a multipurpose machine that uses a fast moving abrasive wire that can cut complex 2D shapes from a variety of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, rockwool and phenolic foams. All machines are equipped with the excellent D&T Profiler software to speed up the design process and allow operators to learn from the foam blocks.


*Fast wire contour cutters have a complete accident prevention system. Includes: All motors stop when the safety door is opened.
There is an accident emergency button on the machine and control box. Braking system when the cutting line breaks.

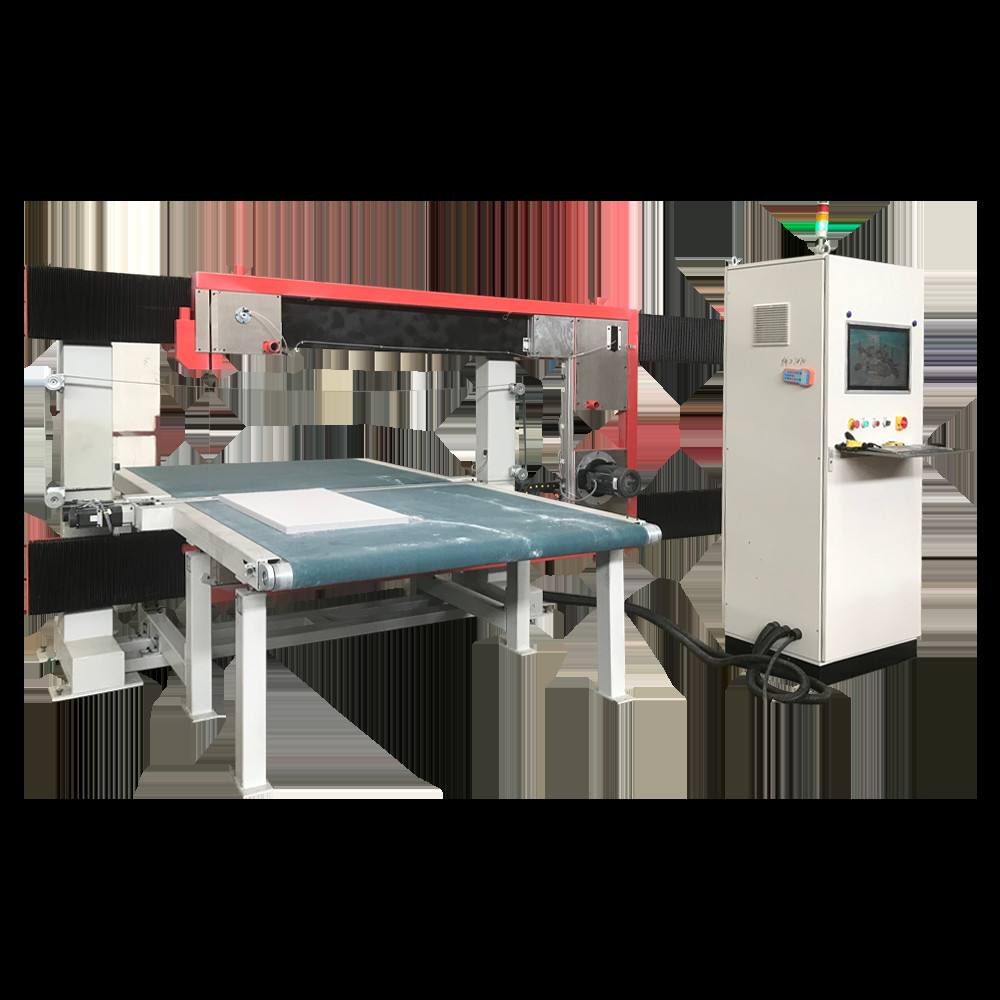

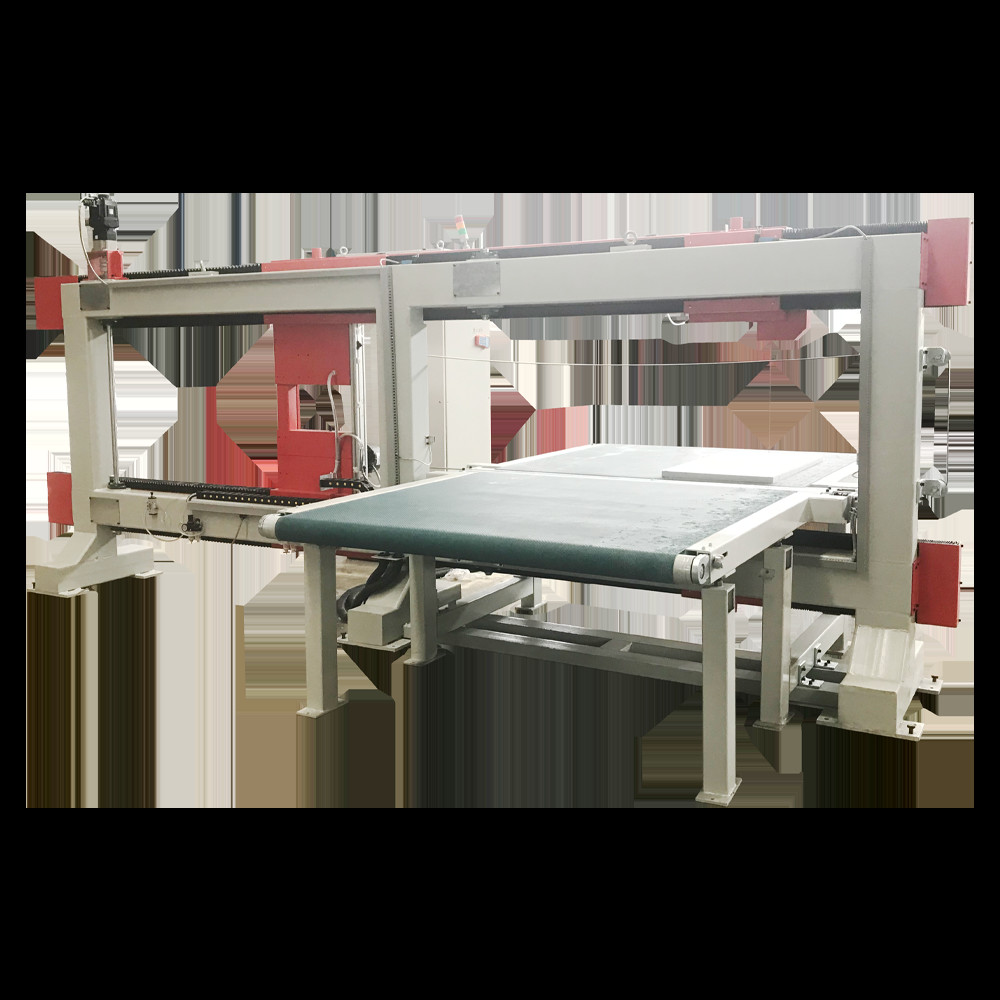

DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision 0
DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision 1
DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision 2
DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision 3


Specification:

This is an advanced fully automatic computerized shape contour cutting machine.

Foam can be cut into two-dimensional complex shapes.

easy to control



This machine is currently the most advanced automatic computer shape contour cutting machine that can cut various shapes by computer system.





The EVA foam contour knife is computer operated and uses CAD software to design the shape of the foam block. By making full use of foam blocks (foam blocks), raw material costs can be greatly reduced.





In addition to the CAD software, we have also designed another drawing software designed by our engineers that is very easy to use. Operators only need to be trained in basic computer knowledge.





Equipped with a high-precision servo system. Fast cutting speed and precise cutting; improve work efficiency. 85% of the dust during cutting is concentrated in the bag, and the noise is also low.





Operating System: Windows XP





Design software: Auto CAD / self-developed CNC operation software.





Cutting software: D&T Profile software.





application:



The CNC Fast Line Profile Knife was developed for specialized insulation used in the construction industry and can be used to slice and form many types of high density foam.

Suitable for construction, interior decoration, advertising, toy model industry, aerospace modeling, furniture manufacturing and packaging. The control system is developed in-house and is a reliable service. Our goal is to coordinate the most ideal production equipment for our customers.



Technical Specifications

Max. Block Size Length 2500mm
Width 1225mm
Height 1000mm

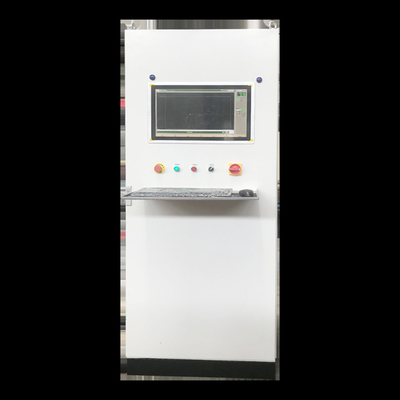

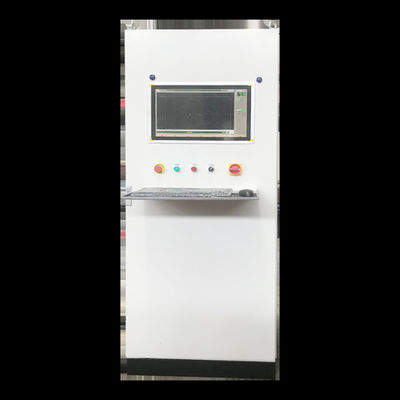

Control Device Industrial Computer
Computer Operation System Windows7
Software D&T Profiler
Acceptable File Formats DXF/DWG
Number of Cutting Wire Dual Wire (Horizonal +Vertical)
Cutting Wire Length ~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter 0.8~2.0mm
Flying Wheel Diameter 300mm

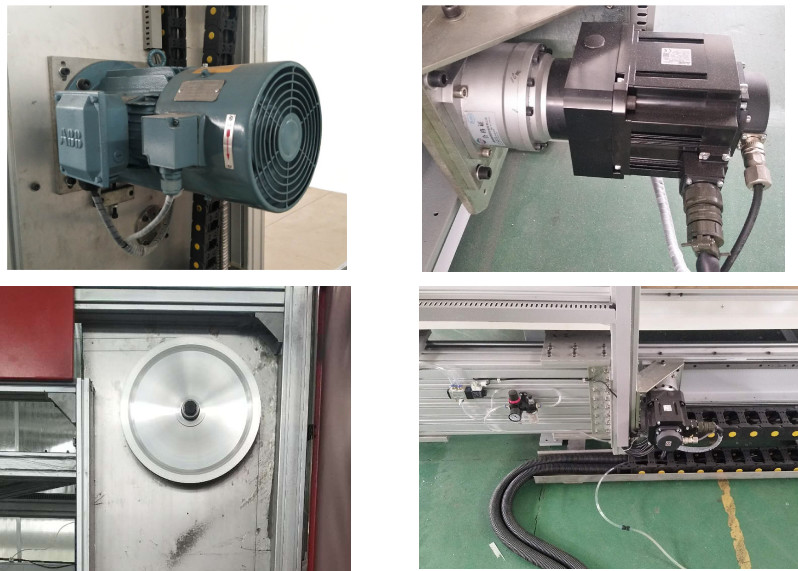

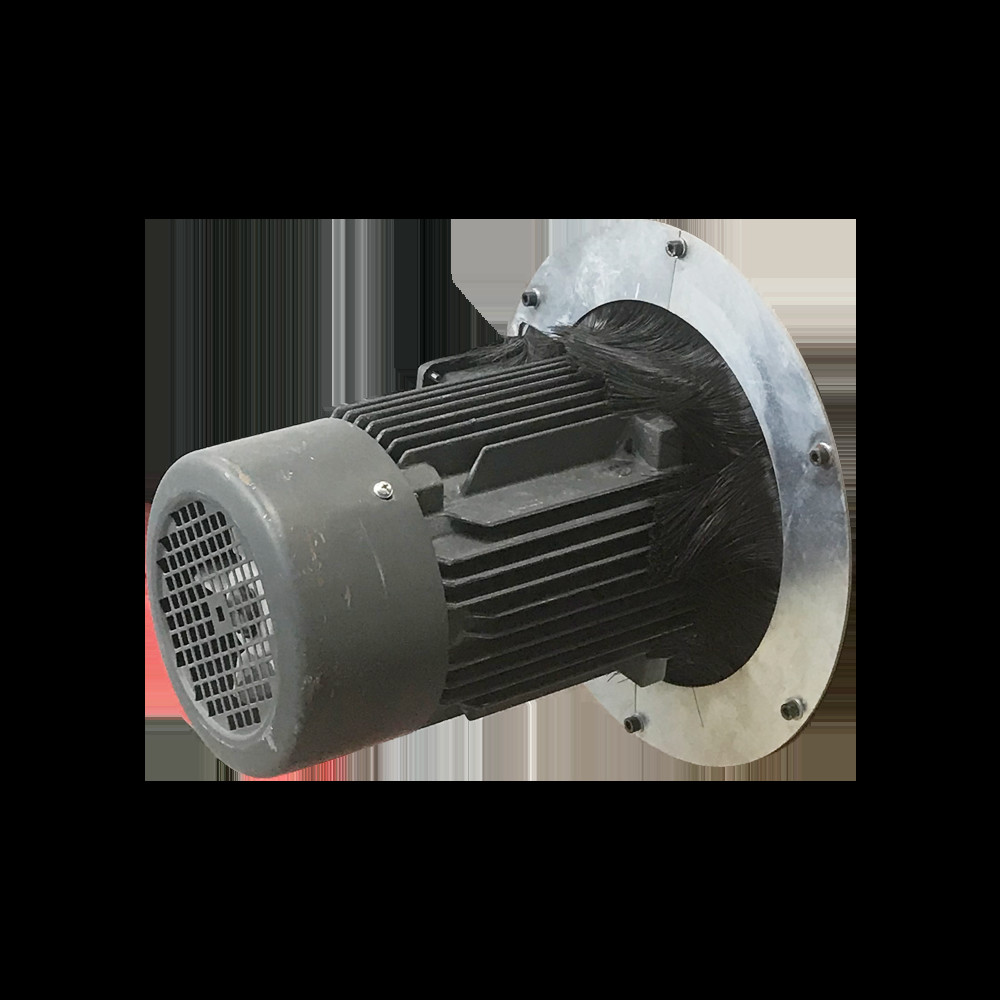

Mainly Motor ABB, 3kW*2pcs
Running Speed of the wheel 2860rpm
Inverter Panasonic, for 3kW motor
Cutting Speed 0~6m/min
Precision ±0.5mm
Total Power 11kW, 400/240V, 50Hz
Gross Weight 2800kg
Overall Dimension 5500*5500*2600 mm

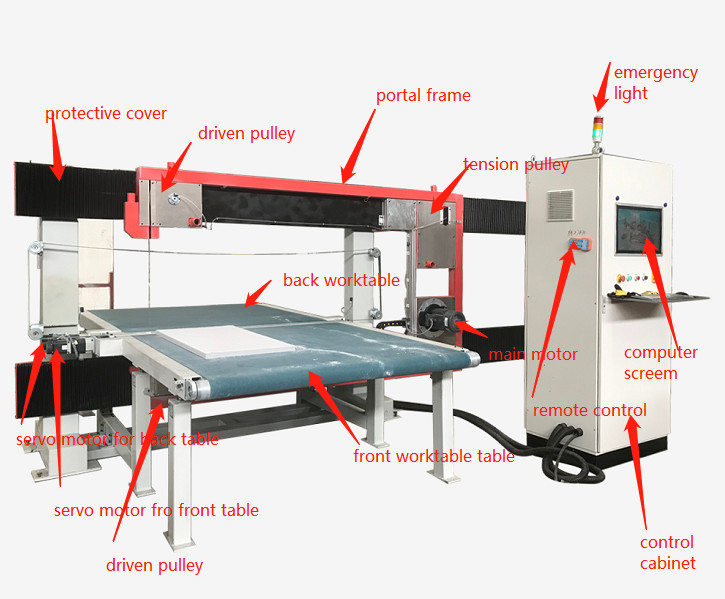

DTC-FK2012 CNC Dual Wire Blade Foam Cutting Machine 3d High Precision 4
