Name: 10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table
Brand: Fuyang D&T Industry Co., Ltd.
SKU: DTC-SD1210K
Price: 37,000.00 USD
Availability: InStock

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table

1 set

MOQ

USD 25000-49000 /PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Power(W): 11kw

Machine Type: CNC Foam Cutting Machine

Dimension(L*W*H): L6200 X W3800 X H2800mm

Cutting Speed: 10m/min

Voltage: 380V 50HZ, 380V/50HZ

Weight: 2200kg

Colour: Customize

Highlight:

3D CNC Foam Cutting Machine

Semi Rigid Foam CNC Cutting Machine

10m/min CNC Wire Cut Machine

Basic Infomation

Place of Origin: China

Brand Name: D&T

Certification: CE

Model Number: DTC-SD1210K

Payment & Shipping Terms

Packaging Details: export standard packing /20GP container

Delivery Time: 5 Set/Sets per Month

Payment Terms: L/C, T/T, Western Union，paypal

Gallery

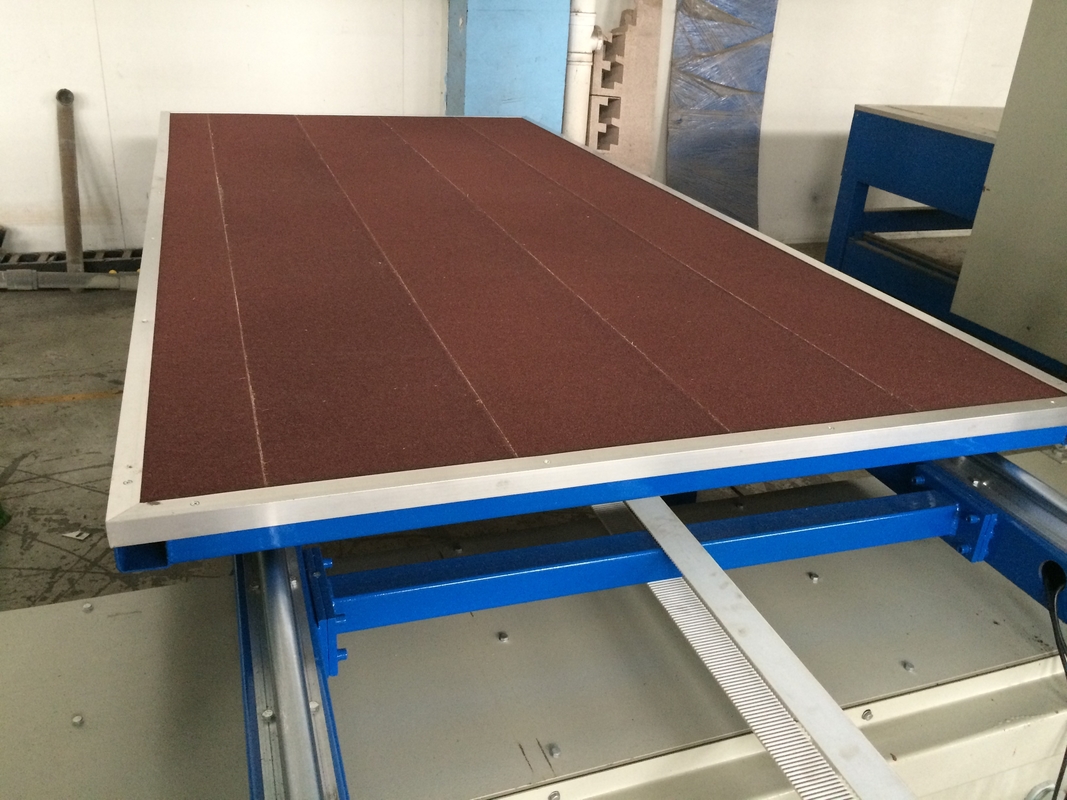

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table

Product Description

DTC-SD1210K 3D CNC Foam Cutting Machine For Rigid And Semi-Rigid Foam With Vacuum Work Table

Technical Specifications

Model		DTC-F1210K
Max. Block Size	250020001200mm
Control Device	Industrial Computer
Computer Operation System	Windows7
Software	D&T Profiler
Acceptable File Formats	DXF/DWG
Number of Cutting Wire	Dual Wire (Horizonal +Vertical)
Cutting Wire Length	~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter	0.8~2.0mm
Flying Wheel Diameter	400mm
Mainly Motor	ABB, 3kW*2pcs
Running Speed of the wheel	2860rpm
Inverter	Panasonic, for 3kW motor
Cutting Speed	0~10m/min
Precision	±0.5mm
Total Power	11kW, 400/240V, 50Hz
Gross Weight	2800kg
Overall Dimension	L6200 x W3800 x H2800mm

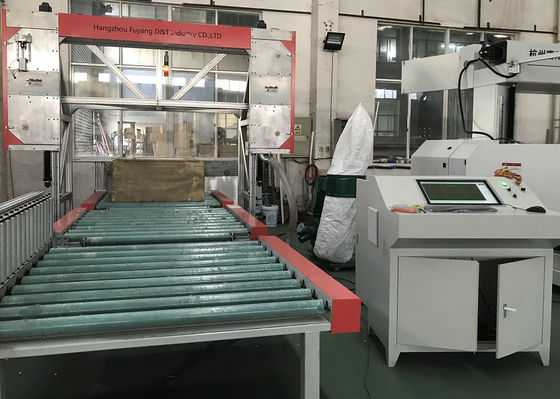

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 0

1.Applicable to: flexible and rigid PU, EPS, PE, PVC, EVA, rock wool, phenolic foam.

Advantages of high-speed wire contour cutter

1. The new one has a fixed working table, which prevents the product from moving slightly when the machine is started, and moves the portal frame to cut the product, thus improving the cutting accuracy
2. The cutting speed is increased by 10m/min, and the old model is 0-3m/min, so the new model has 3 times the efficiency of the old model.
3. Cutting tolerance is controlled within ±0.3 to 0.5/-0. 3 to 0.5 mm, conventional products ±0.5 to 1/0.5 to 1 mm, greatly improved accuracy.
4. The newly developed high-speed wire contour cutter adopts a servo motor instead of the step motor of the old model, further improving accuracy.

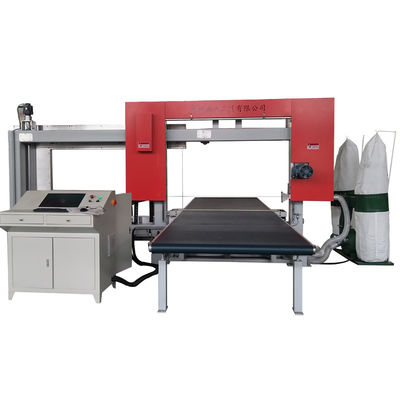

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 2

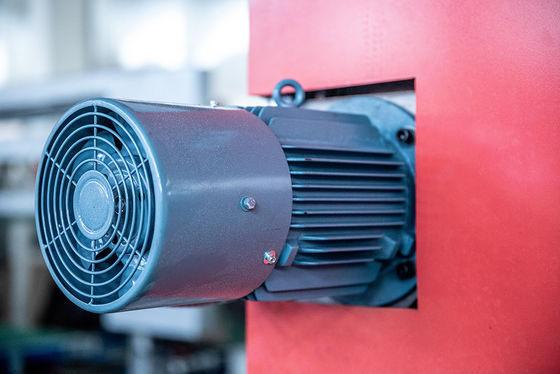

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 3

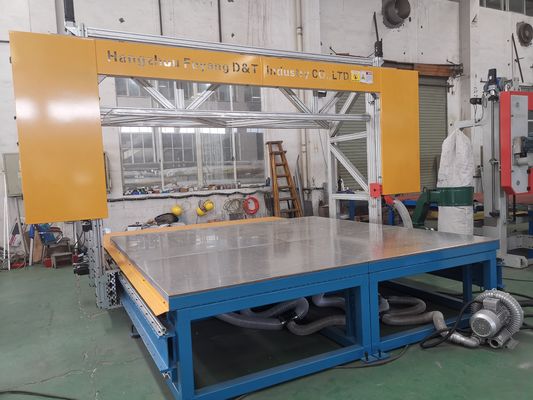

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 4

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 5

Company Information

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 6

Team and customer

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 7

certificate

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 8

Exhibition

10m/Min 3D CNC Cutting Machine For Semi Rigid Foam With Vacuum Work Table 9
