Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-S2012 |
Minimum Order Quantity: | 1 set |
Price: | USD 18000-37000 /PC |
Packaging Details: | WOODEN BOX |
Delivery Time: | 30 WORK DAYS |
Payment Terms: | L/C, T/T, Western Union.paypal |
Supply Ability: | 20 SETS PER MONTH |
Cutting Wire Diameter: | 0.8~2.0mm | Max. Block Size: | 2500mm*1225mm*1000mm |
---|---|---|---|
Material Can Be Cut: | Flexible Foam | Number Of Cutting Wire: | Dual Wire (Horizonal +Vertical) |
Flying Wheel Diameter: | 300mm | Mainly Motor: | ABB, 3kW*2pcs |
Running Speed Of The Wheel: | 2860rpm | Colour: | Customized |
Highlight: | 10 M/Min Foam Cutting Machine,Phenol Foam Cutting Machine,2860rpm Vertical Foam Cutting Machine |
flexible pu PVC Fast Wire cutter Rigid PU Foam Cutting Machine CNC Pipe Cutter

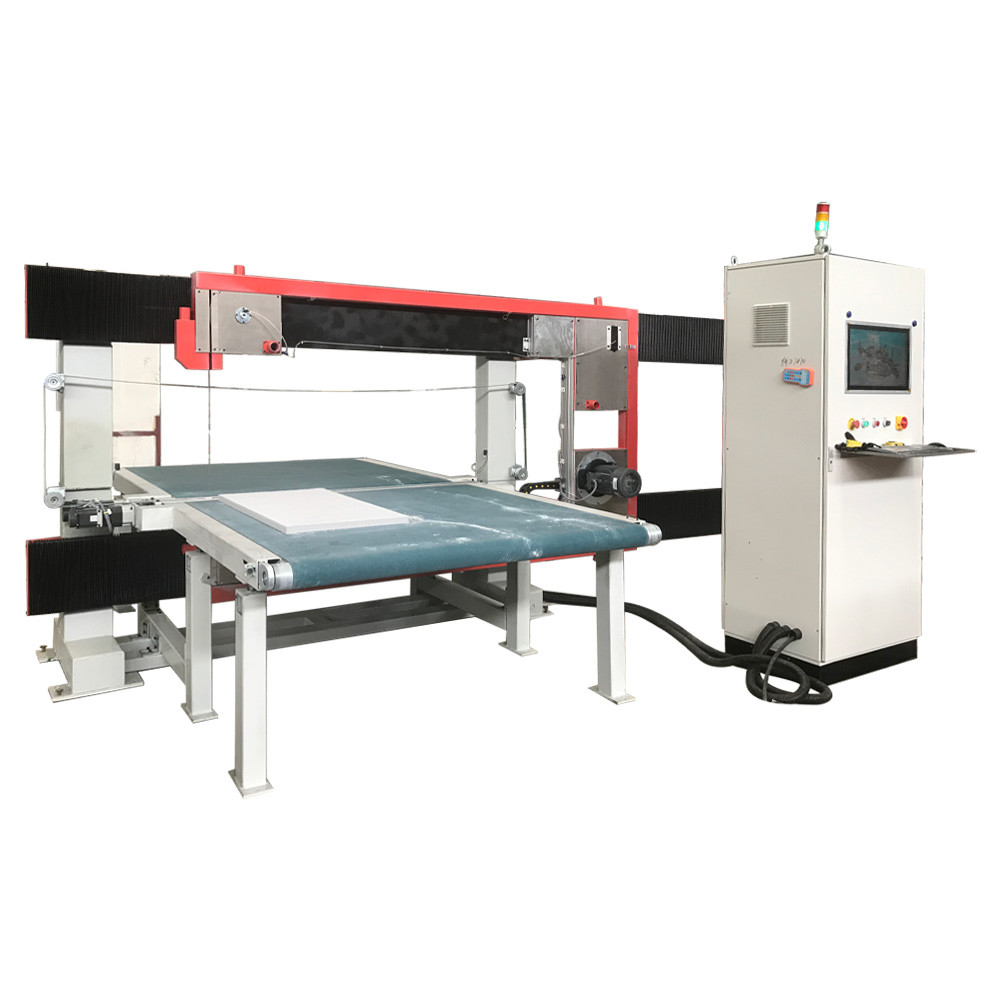

Vertical 10 M/Min Phenol Foam Cutting Machine 2860rpm
Technical Specifications
Model | DTC-FV2012 | |
Max. Block Size | L2000*W 2000*1200mm | |

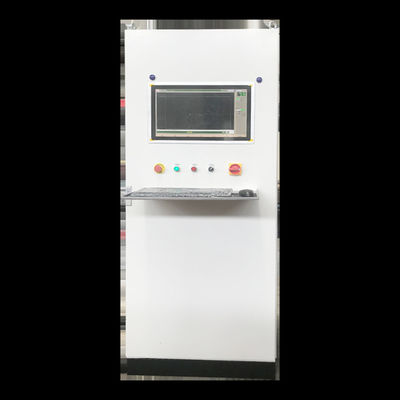

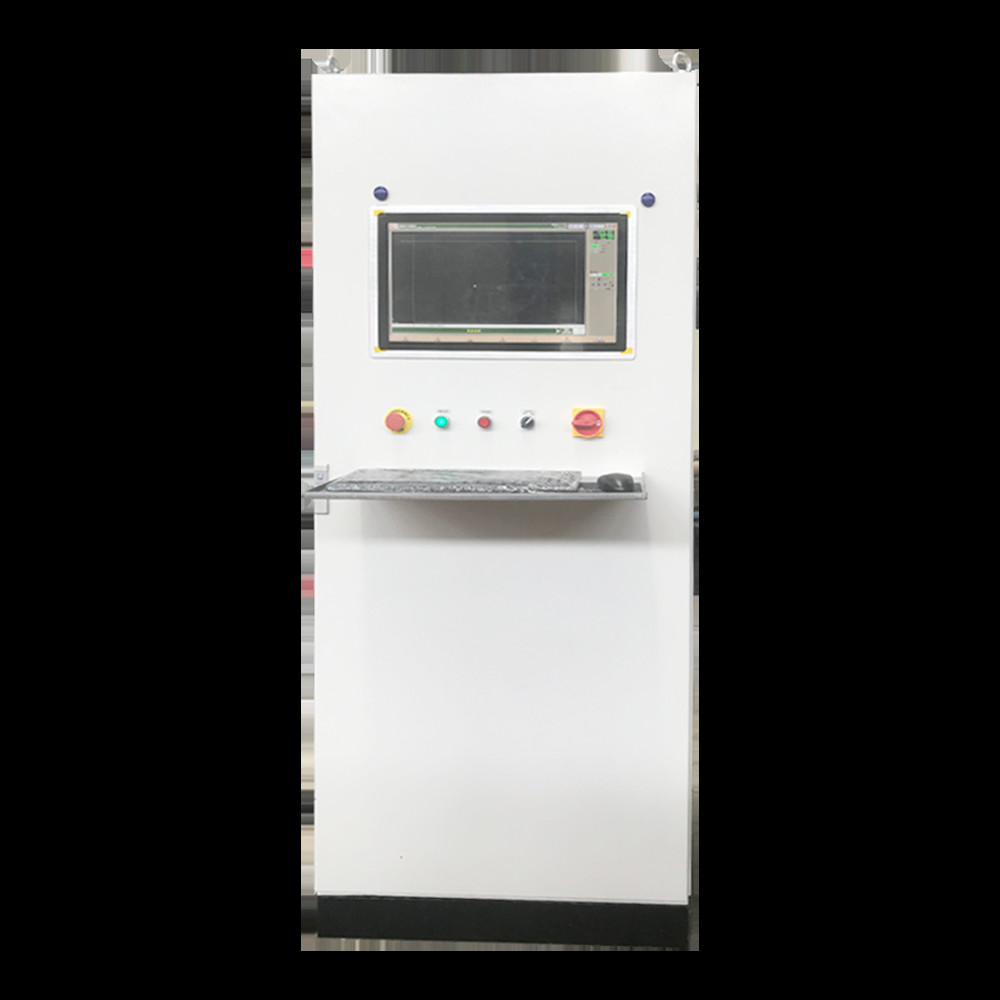

Control Device | Industrial Computer | |
Computer Operation System | Windows7 | |
Software | D&T Profiler | |
Acceptable File Formats | DXF/DWG | |
Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
Cutting Wire Diameter | 0.8~2.0mm | |
Flying Wheel Diameter | 300mm | |

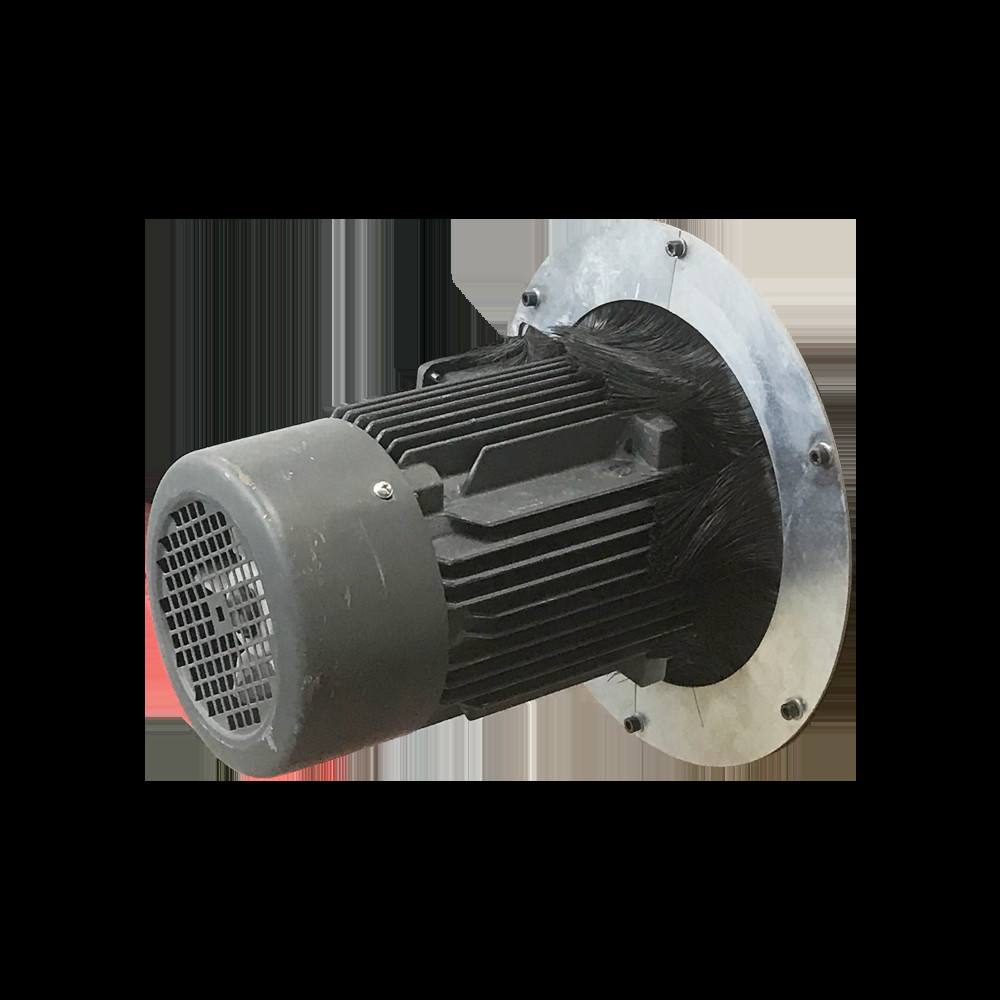

Mainly Motor | ABB, 3kW*2pcs | |
Running Speed of the wheel | 2860rpm | |
Inverter | Panasonic, for 3kW motor | |
Cutting Speed | 0~6m/min | |
Precision | ±0.5mm | |
Total Power | 11kW, 400/240V, 50Hz | |
Gross Weight | 2800kg | |
Overall Dimension | L4000* W 5500*H 2500 mm |
1. Applicable to: soft and hard PU, EPS, PE, PVC, EVA, rock wool and phenolic foam.
2. Fast Wire Contour Cutter
3. Cutting line: fast cutting line
4. The D&T Fastwire Contour Cutter is a versatile machine that uses a high-speed moving abrasive wire that enables it to cut complex 2D
Various rigid and flexible foam shapes. These include flexible and rigid PU, EPS, PE, PVC, EVA,
5. rock wool and phenolic foams.
All machines are powered by the superior D&T Profiler software, which speeds up the design process and enables operators to get the best yield from foam blocks.
6. Fast Wire Contour Cutter has perfect safety system to provide accident. Including: all motors stop when the safety door is opened;
There are accident emergency buttons on the machine and the control box; the braking system when the cutting line is broken.
