Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | CN |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-S1212 |
Minimum Order Quantity: | 1 set |
Price: | USD20000-100000/SET |
Packaging Details: | packed with pvc film |
Delivery Time: | 20days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 Sets Per Month |
Item: | CNC Foam Contour Cutting Machine | Type: | DTC-S1212 |
---|---|---|---|
Product Size: | 2500*1200*1000mm | Cutting Line Diameter: | 1.0-1.5mm |
Control System: | Industrial Computer | Cutting Speed: | 0-6m/min(adjusted) |
Precision: | ±1mm | Power: | <5.5kw |
Weight: | 1200kgs | Overall Dimension: | 6200*2400*2380mm |
Name: | FOAM CUTTING MACHINE | ||
High Light: | 1.0mm CNC Contour Cutting Machine,Oscillating Blade Foam Contour Cutting Machine,CNC Foam Contour Cutting Machine |

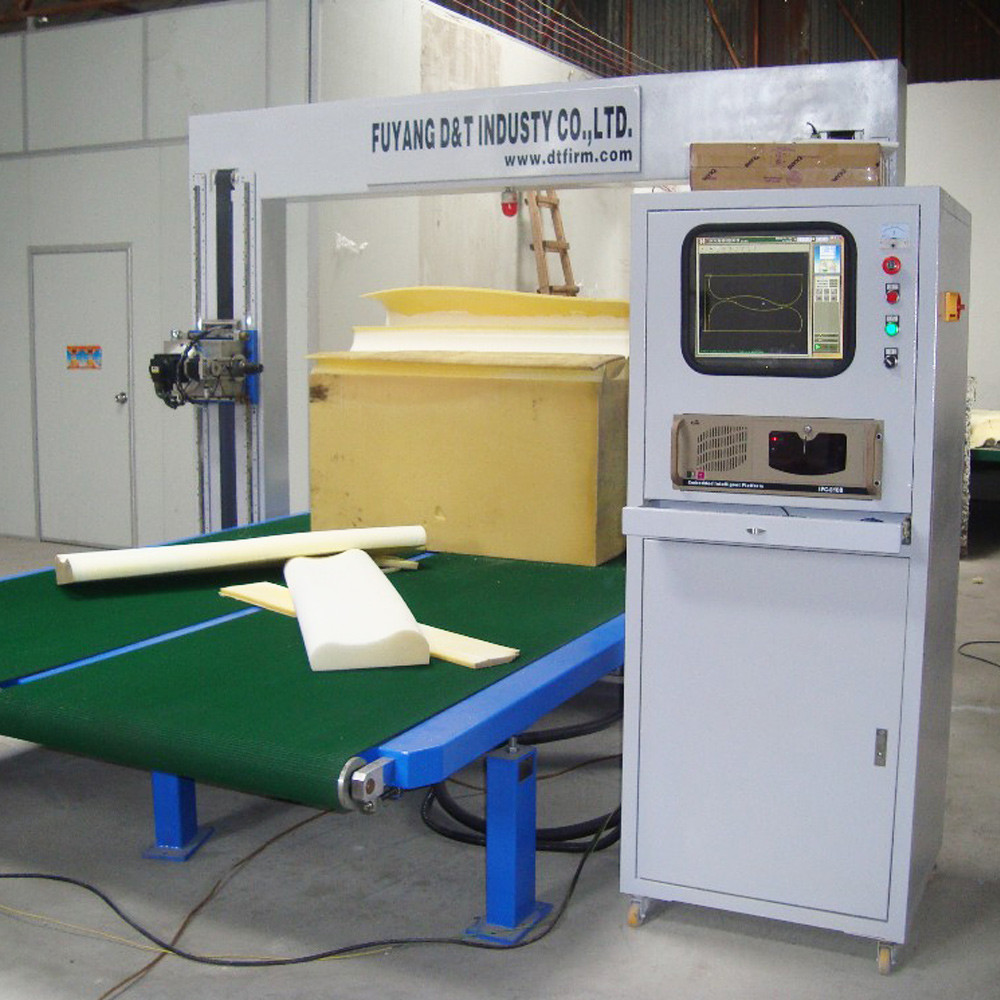

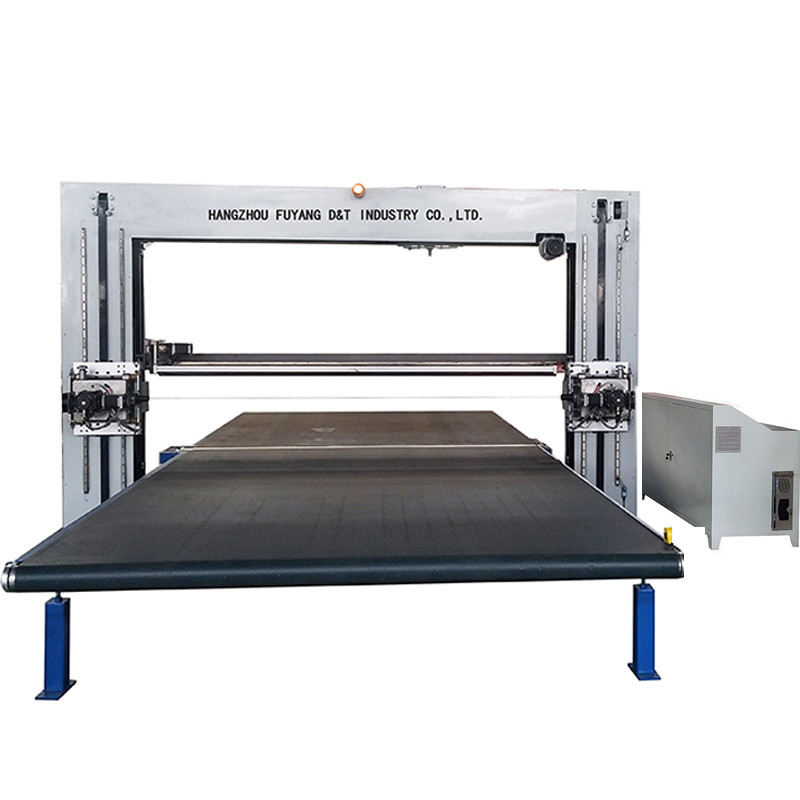

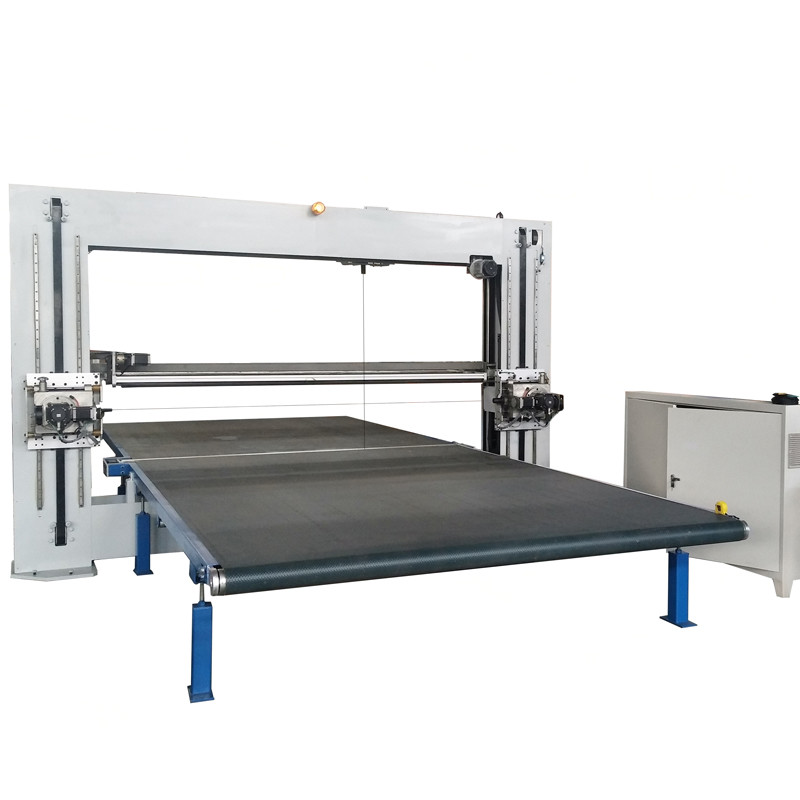

DTC-S1212 Professional CNC Oscillating Blade Foam Contour Cutting Machine
CNC 2D flexible foam cutting machine/
cnc foam machine/ cnc foam cutter/ foam machine
1. Application
The oscillating foam cutting machine may process
any size foam blockall kinds of foam fontslow rebound sponges,
contoured cleaning supplies, etc.
2. Features
1. Using the control software that developed by our D&T company
can easily draw the graphics.the computer may automatically convert the graphics
into the controlling code, thus reduce your workload.
The computer can simulate the processing path to ensure the accuracy of each cutting.
the computer can optimize your nesting,
make full use of the foam, reduce the cost for you.
2. The mahine takes advantage of cutting blade vibration design,
the blade can be 360 ° rotation,
and achieves strong results automation capabilities,
this technology is the leading domestic level,
and to fill the gap in our country.
3. The difference of the machine compared
with the cutting wire machine is that it utilizes
special high-speed dual-vibration system,
the blade easy installation, simple operation and high efficiency.
4. The machine blade is importable carbon steel strip,
long service life, and to facilitate the replacement.
5. With the entire machinery safety facilities, such as
security screens,
emergency stop,
protection device of cutting wire broke ,
as well as other sensors, etc.
6. High frequency vibration,
high cutting speed, no dust.
3. Technical DaTa of CNC Memory Foam oscillating knife cutting
Model |
CNC |
Cutting speed(m/min) |
0--6 |
Speed of cutter (m/s) |
0--5 |
Cutting accuracy (mm) |
±0.5 |
Blade length(mm) |
2500 |
Total power(KW) |
4 |
Total weight (kg) |
2200 |
Size max. (mm) |
L2500×W1200×H1200 |
Dimensions(mm) |
L6000×W2550×H2500 |
4. Packing:
For the packing, there is a professional team to load the cargo.
Besides, we have a long-term cooperation with the forwarder
Who is rich experience of the carrier. So do not worry
It can save money and be safe for you.
5. Company Information
Fuyang D&T Industry CO., LTD. Specialized in manufacturing
cnc foam cutting machine,
polyurethane cutting machine,
quilting machine
Aid for foam ratios.
Through the research of our engineers,
Our cutting machine had connected well with the popular CAD
and achieved automation and high efficiency,
high accuracy and easy operation.
We always put the customer first
and will use our best endeavors to satisfy you.
We wholeheartedly look forward to the development of economic,
technical and business cooperation with you.
Products: Fast Wire Cutting Machine,
pu cutting machine,
hot wire cutting machine,
eps cutting machine,
quilting machine and so on.
6. Samples for Cutting Product
