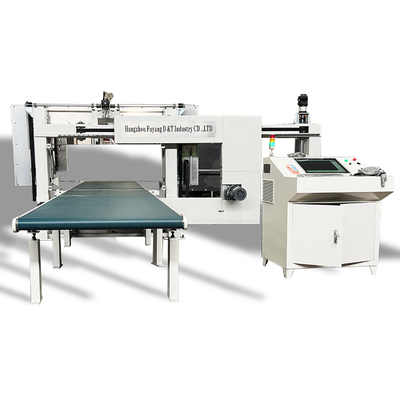

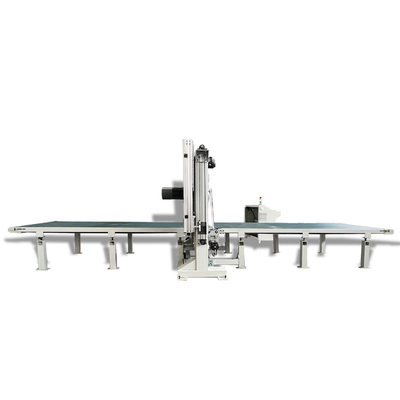

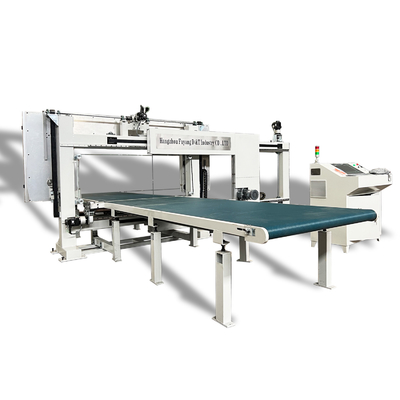

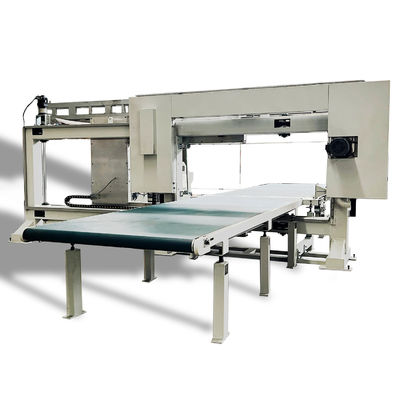

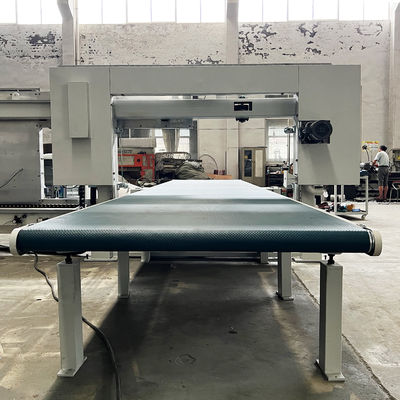

DT CNC Rigid PU Dual Blade CNC Foam Cutting Machine
Technical Specifications
Model | DTC-F2012 | |
Max. Block Size | 2500*2000*1200mm | |
Control Device | Industrial Computer | |
Computer Operation System | Windows7 | |
Software | D&T Profiler | |
Acceptable File Formats | DXF/DWG | |
Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
Cutting Wire Diameter | 0.8~2.0mm | |
Flying Wheel Diameter | 300mm | |

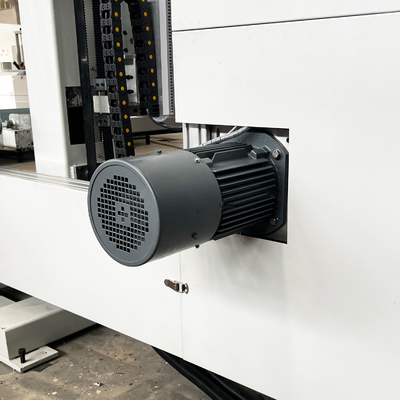

Mainly Motor | ABB, 3kW*2pcs | |
Running Speed of the wheel | 2860rpm | |
Inverter | Panasonic, for 3kW motor | |
Cutting Speed | 0~6m/min | |
Precision | ±0.5mm | |
Total Power | 11kW, 400/240V, 50Hz | |
Gross Weight | 2800kg | |
Overall Dimension | 5500*5500*2600 mm |
1.Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, rock wool and phenolic foam.
2. Fast wire contour cutter

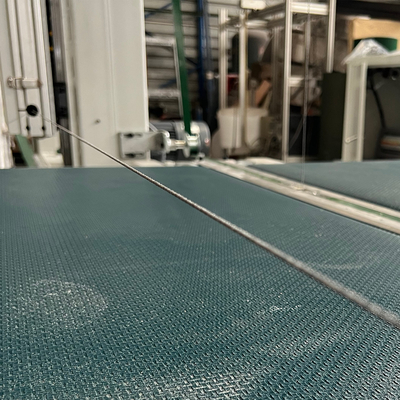

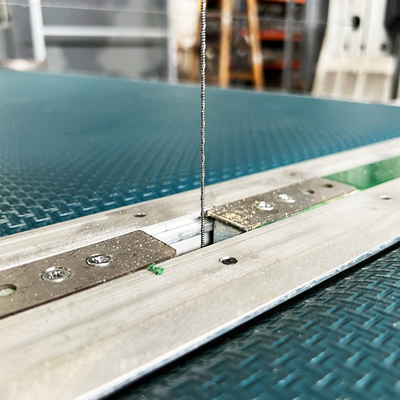

3.Cutting line: Fast cutting wire
4. The D&T Fast wire Contour Cutter is a versatile machine that uses an abrasive wire that moves at high speed to enable it to cut complex 2D
formed from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, 5.Rock wool and phenolic foam.
All the machines are powered by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to get the most out of the foam block.
6. Fast Wire Contour Cutter has a perfect safe system to take care of the accident. It includes: All motors stop when the safety door is opened;
Exigency button on both machine and control box for accident; braking system in the event of a break in the cutting line.
