Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-F1212 |
Minimum Order Quantity: | 1 set |
Price: | USD27000-30000 /PC |
Packaging Details: | WOODEN BOX |
Delivery Time: | 30 WORK DAYS |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 15 SETS PER MONTH |
Max. Block Size: | 2500*1200*1200mm( Customized) | Material Can Be Cut: | Rigid PU,Pir,EPS,rock Wool,ets. |
---|---|---|---|
Cutting Wire Length: | ~8500mm (Should Be Confirmed By Maker By Machine) | Flying Wheel Diameter: | 300 Mm/ 400 Mm |
Mainly Motor: | ABB, 3kW | Running Speed Of The Wheel: | 2860rpm |
Cutting Speed: | 0 ~ 6m/min | Precision: | ± 0.5mm |
Highlight: | PE Rigid PU Foam Sheet Machine,DTC-F1212 PU Foam Sheet Machine,2860rpm PU Foam Sheet Machine |

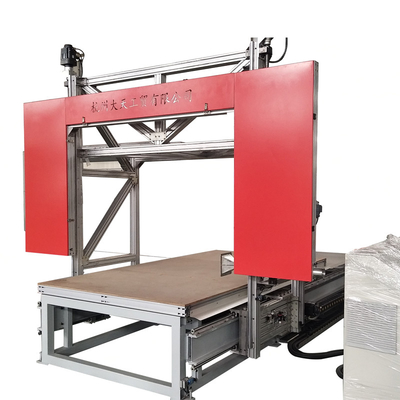

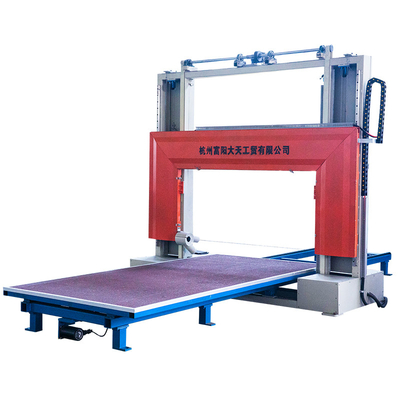

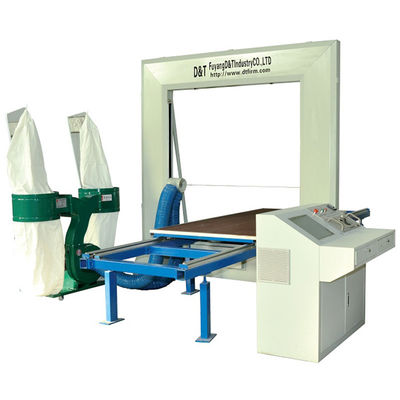

Fast Wire PE Foam Sheet Machine Fast Wire Foam Cutting Machine DTC-F1212
Fast wire mesh PE foam board machine with hot wire foam cutter
Fast Wire Contour Cutter is a high-speed abrasive wire. At high speed, the material will be ground
Dust and vacuum fans. Computer-controlled conveyor and cutter roll operation
You draw on CAD.
The main function of high-speed wire grinder
The heating switch is controlled by our D&T software.
Hot wire power: 2kw
Model | DTC-F1212 | |
Max. Block Size | Length | 2500mm(~4 feet) |
Width | 1200mm(~3 feet) | |
Height | 1200mm(~3 feet) | |

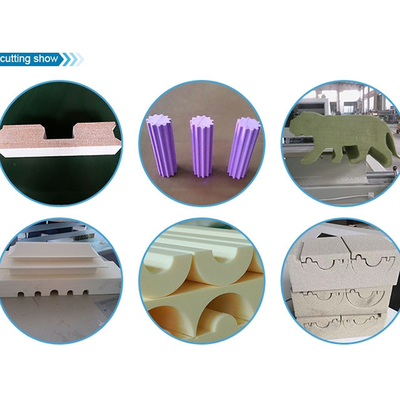

Material can be Cut |
Rigid PU PIR EPS Miner Wool Polypropylene Honeycomb Paperboard …… |
|
Control Device | Industrial Computer | |
Computer Operation System | Windows 7 | |
Software | D&T Profiler | |
Acceptable File Formats | DXF/DWG | |
Number of Cutting Wire | One | |
Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
Cutting Wire Diameter | 1.3~1.5mm | |

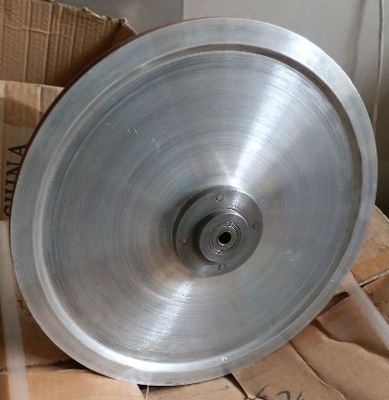

Flying Wheel Diameter | 300 mm/ 400 mm | |

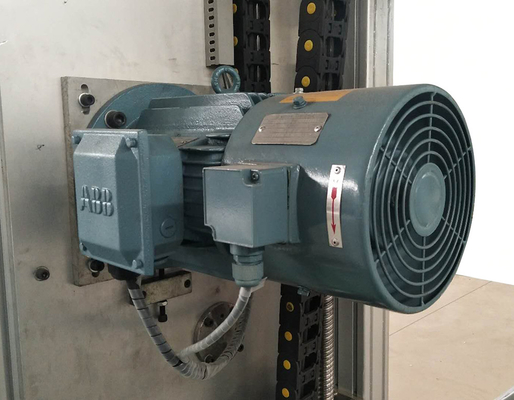

Mainly Motor | ABB, 3kW | |
Running Speed of the wheel | 2860rpm | |
Inverter | Panasonic, for 3kW motor | |
Cutting Speed | 0 ~ 6m/min | |
Precision | ± 0.5mm | |
Total Power | ~5.5kW, 230V, 60Hz | |
Gross Weight | 1200kg | |
Overall Dimension | L6200×W2400×H2380mm |
