Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | Zhejiang |
|---|---|
| Brand Name: | D&T |
| Model Number: | DTC-S2012 |
| Minimum Order Quantity: | 1piece |
| Price: | USD30000-45000 |
| Packaging Details: | packaged according to the requirements of customers |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 10pcs per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Oversea |
|---|---|---|---|
| Color: | As Your Request | Max.Foam Block: | 2500×2000×1200mm |
| Control System: | Industrial Computer With D&T Special Profiler Software | Cutting Line: | 3 X 0.6mm |
| Cutting Speed: | 0~6m/min | Precision: | ±0.5mm |
| Power: | 6kw 380V 50HZ | Weight: | 1800kg |
| Highlight: | Rigid Foam Cutting Machine 6m/min,Rigid Foam Cutting Machine Horizontal,6m/min Foam Rubber Cutting Machine |
||

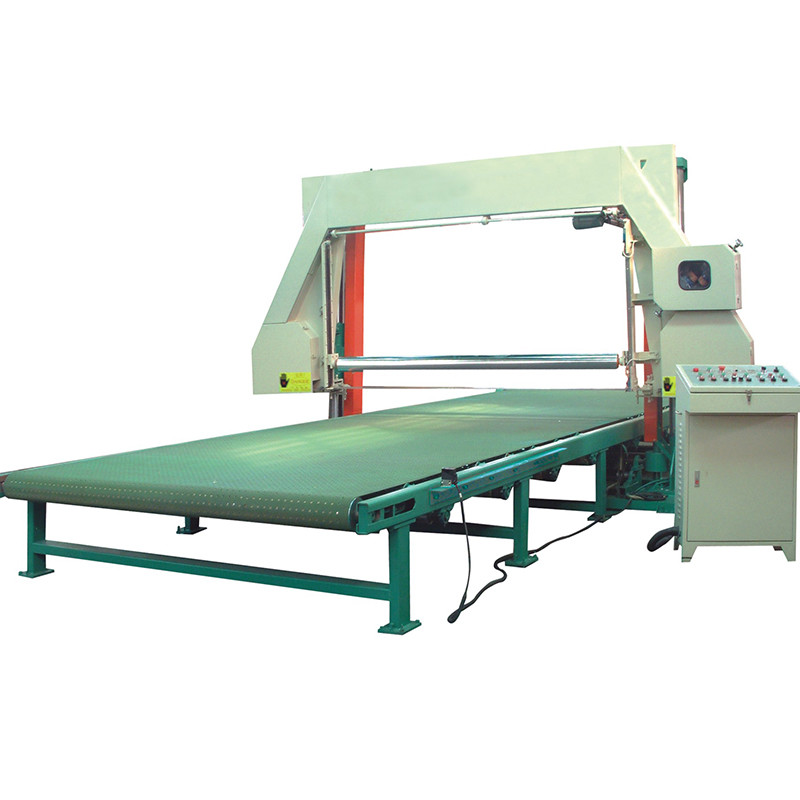

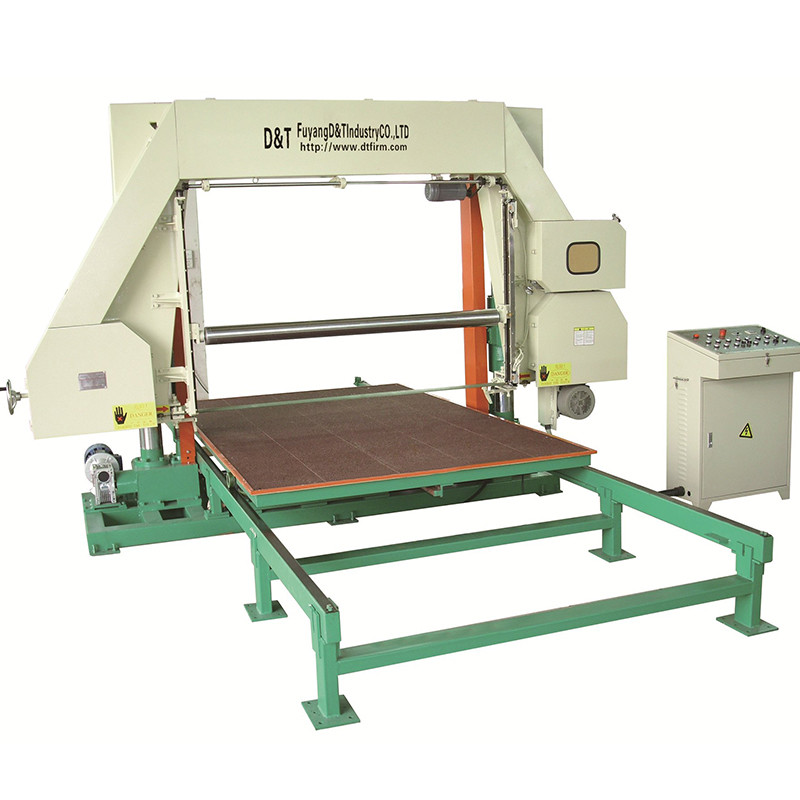

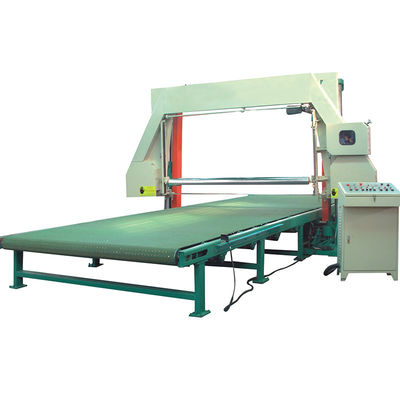

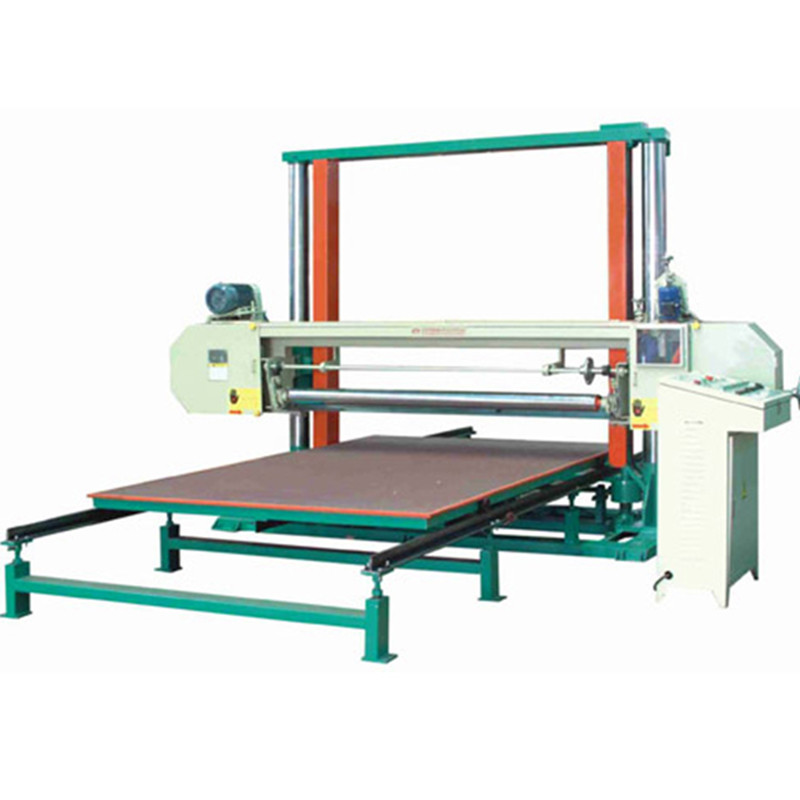

D&T CNC Sponge Cutting Horizontal Rigid Foam Cutting Machine Automatic Foam Rubber Cutting Machine
DTC-S2012 D&T CNC Horizontal Sponge Foam PU Oscillating Blade Automatic Cutting Machine
Application:
Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.
Advantage:
Worktable:plat working table, moving table (could select)
Specification:
| Model |
DTC-S2012 |
Control System |
Industrial Computer |
|
Max. Product Size |
2500×2000×1200mm |
Cutting Speed |
0~6m/min |
|
Cutting Line |
3 X 0.6mm |
Precision |
±0.5mm |
|
Power |
6kw 380V 50HZ |
Weight |
1800kg |
Description:
The D&T Oscillating Blade Contour Cutter is a type of complex shape cutter suitable for flexible foam. Since the blade is cut with high-speed vibration, the work can be finished quickly and smoothly. Cutting flexible PU with an oscillating blade contour cutter does not generate any special dust.
All machines are driven by the excellent D&T Profiler software. This speeds up the design process and allows operators to get the best yield from their foam blocks.
Software question:
1.Q: what kind of CAD software does the machine use?
A: For CAD software, our machine uses 2004 or 2006 (as you prefer)
2.Q: for the CAD software, what is its name?
A: It is called Auto CAD Software
3.Q: where do you buy your machines in bulk? Which countries?
A: Our main market is Russia, Middle East, Canada, USA, Austral, Mexico, Brazil for different types.
4.Q: the operating system you are using is windows, correct?
what are the windows like? XP? Or Windows 7?
A: Yes, Windows XP.
When working, our machine does not use network
We usually use XP for its stability. Windows 7 is also good.
5.Q: is your software licensed or legal? ("crack")
A: we are developing our own image cropping system. It has an origin
Q: but auto-cad and windows? Auto-cad and windows are also basic
I am asking this question because our company only uses licensed systems
A: windows are licensed; AutoCAD is the trial version.
Our machines do not include AutoCAD licenses
If you have some drawing software, you can create a DXF file.
6.Q: the differences between our CNC Wire Cutting Machine and Oscillating Blade CNC Blade Cutting Machine.
A: First, High speed wire cutters use high abrasive wire, Oscillating Surface cutters use high speed,
face and teeth.
Second, high-speed CNC wire cutting is better for foams than halves or halves.
Third, high-speed CNC wire cutters can also cut soft materials. But dust from soft materials requires a dust pelletizing system and soft materials are also not suitable for fast wire cutting.
7.Q: About the name and website:
A: for the name, 8 years gold supplier in Alibaba.
And our engineers have researched our machines and made them even better. We
promise our machine will be as we said. Although we keep 10% for guarantee until
Install the machine well and the customer will be satisfied with our machine.
