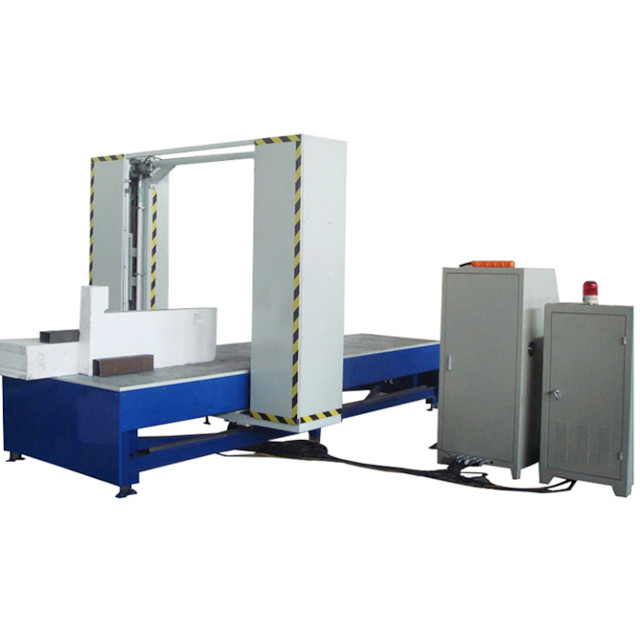

D&T EPS XPS Profiler Electric Wire Cutting Machine 1200kg

1 set
MOQ
USD 5000 - 40000 / set
Price
D&T EPS XPS Profiler Electric Wire Cutting Machine 1200kg
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Foam Cutting Machine
Type: DTC-E2012
Product Size: 2000*1300*1000mm
Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm
Power: 13.5kw,380v,50hz
Weight: 1200kgs
Highlight:

1200kg Electric Wire Cutting Machine

,

EPS Electric Wire Cutting Machine

,

XPS Profiler Foam Cutter

Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-E2012
Payment & Shipping Terms
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Product Description

D&T 1200kg Electric Wire EPS Cutting Machine XPS Profiler Foam Cutter

1. Main Introduction:

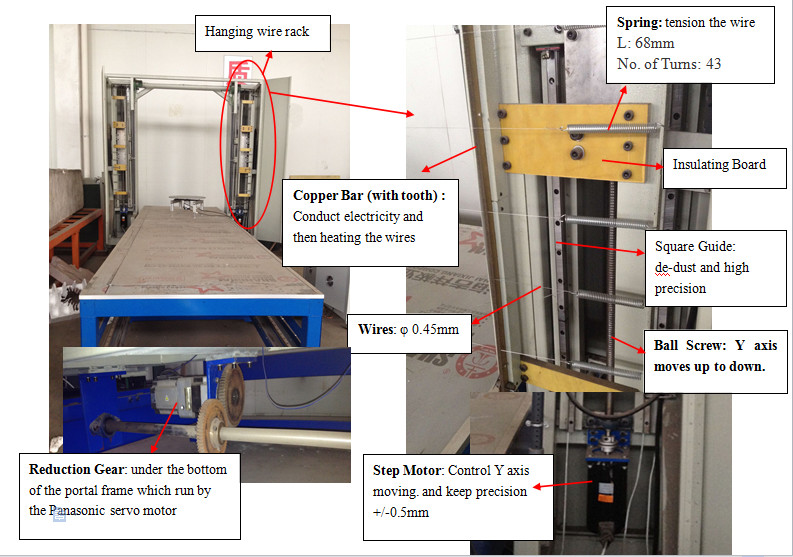

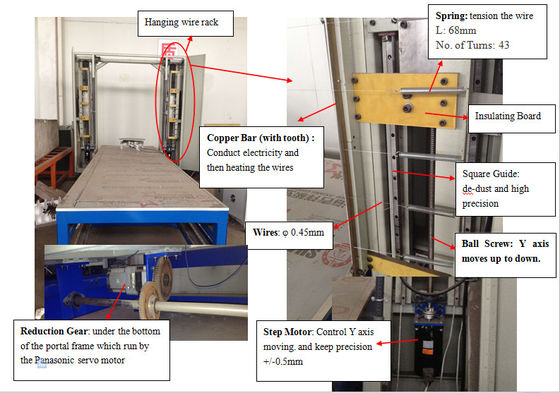

1  Main frame: aluminum alloy profile connected by special joints with
    stable function and performance, reasonable structure, high precision,
    easy and convenient operation which can save time, strength and raw material.

2  Full automatic industrial control system

3  Draw all kinds figures with CAD/CAM on computer and cut directly,
    or can cut after the cutting file is run from U-disc.

4  With convenient operating interface, the machine can display the parts to the cut,
   follow the cutting path as well as their respective status
   such as limits, alarm, operation conditions of each axis, etc.


5  With high strength and stability mechanical design,
    the machine can work smoothly with numerical control system
   and there is no need to adjust.

6 The machine has double track notion design with high precision,  which is durable.



2. Description Of 2D EPS cutting machine

Suit for: Polystyrene
Cutting line: Hot Wire

D&T series 2D EPS cutting machine is a special cutting machine,
which is for complex shapes of EPS products.
THis kind of cutter has one or sevaral cutting lines for different production request.

All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and enables the operator to
obtain the best yield from the foam block.

Fast Wire Contour Cutter has perfect safe system to provide the accident.

It includes: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.


 3. Technical Data of  2D EPS cutting machine


TECHNICAL DATA
TypeDTC-C2012DTC-E3012DTC-E6012
Max. Product Size2000*1300*1000mm3000*1300*1300(mm)6000*1300*1300(mm)
Cutting    Line0.5~1.2mm
Control    SystemIndustrial    Computer
SoftwareD&T    ProfilerD&T    ProfilerD&T    Profiler
Cutting    Speed0~1.5m/min0~1.5m/min0~1.5m/min
Precision                                                ±1mm
Power13.5kw, 380v, 50hz14.5kw, 380v, 50hz14.5kw, 380v, 50hz
Overall    Weight1200kg1500kg2000kg



























4. Company Information



 Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,


polyurethane cutting machine, quilting machine,mattress spring coiling machine  and foam relation assistant

equipments. Through the research of our engineers, our cutting machine had connected well

with the popularized CAD and achieved automation and high efficiency, high accuracy and

makes it easy to operate.We always put the customer on the first place and make utmost efforts

to satisfy you.We wholeheartedly look forward to developing economic, technical and trade

cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting

machine, eps cutting machine, quilting machine and so on.

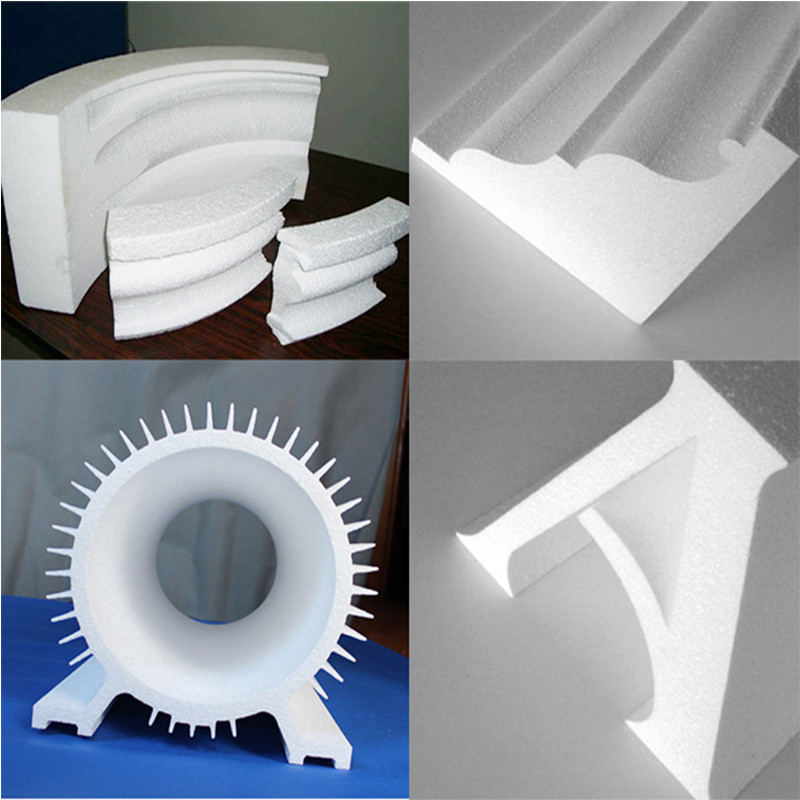

5. Samples for Cutting Product
D&T EPS XPS Profiler Electric Wire Cutting Machine 1200kg 0D&T EPS XPS Profiler Electric Wire Cutting Machine 1200kg 1
