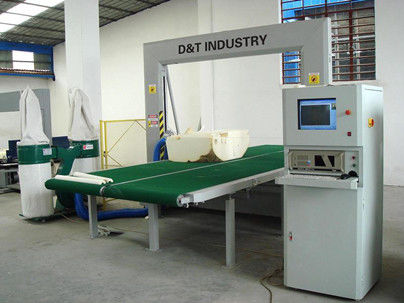

PIR / Fireproofing Panel Auto CNC Foam Contour Cutting Machine Cutter With Moving Table , Brake System
Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing
CNC foam Cutting machine,
polyurethane cutting machine,
quilting machine and
foam relation assistant equipments.
Through the research of our engineers,
our cutting machine had connected well with the popularized
CAD and achieved automation and high efficiency,
high accuracy and makes it's easy to operate.
We always put the customer on the first place and
make utmost efforts to satisfy you.
We wholeheartedly look forward to developing economic,
technical and trade cooperation with you.
Products: Fast wire cutting machine,
pu cutting machine,
hot wire cutting machine,
eps cutting machine,
quilting machine and so on.
Application:
Flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams
Specification:
| Model |
DTC-F2012
|
|
Max. Product Size
|
2500×2000×1200(mm)
|
|
Cutting Line
|
1.0~1.5mm
|
|
Control System
|
Industrial Computer
|
|
Software
|
D&T Profiler
|
|
Cutting Speed
|
0~6m/min
|
|
Precision
|
±1mm
|
|
Power
|
<6.5kw
|
|
Overall Weight
|
1500kg
|
|
Overall Dimension
|
6200×3200×2800mm
|
Advantage:
Computer control system,
all Motor will stop when the safety door be opened;
Exigency button on both
machine and control box for accident;
Brake system when cutting line broken.
Packing:
For the packing, there are a professional team to loading the cargo.
and also, we have some long-term cooperation with the shipping
agent who is rich experience of carrier. So do not worry,
it can save money and safe for you.
Description:
The D&T Fast wire Contour Cutter is a versatile machine,
which uses an abrasive wire moving at
high-speed to enable it to cut complex 2D shapes from a wide range of rigid and flexible foams.
These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and enables the
operator to obtain the best yield from the foam block.
Fast Wire Contour Cutter has perfect safe system to provide the accident.
It include: All Motor will stop
when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.
Optional:
Movable table

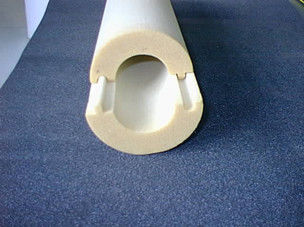

Finish products:
