Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | China |
|---|---|
| Brand Name: | D&T |
| Certification: | CE |
| Model Number: | DTC-SD2012 |
| Minimum Order Quantity: | 1 set |
| Price: | USD15000-50000/SET |
| Packaging Details: | packed with pvc film |
| Delivery Time: | 20days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 20 Sets Per Month |
| Max. Product Size: | 3000*2200*1250(mm) | Horizontal Cutting Blade: | 2300*3*0.5mm |
|---|---|---|---|
| Vertical Cutting Blade: | 2300*3*0.5mm | Control System: | Industrial Computer+Windows XP With D&T Profiler |
| Cutting Speed: | 0~10m/min(adjustable) | Power: | 10kw,380v,50hz |
| Blade Tension: | Cylinder Tensioning 6 Bar | Overall Weight: | 2000kg |
| Colour: | Clients’ Requirement | ||
| High Light: | Good Quality cnc contour cutting machine,PU foam cnc contour cutting machine,Dual Blade Oscillating foam contour cutting |
||

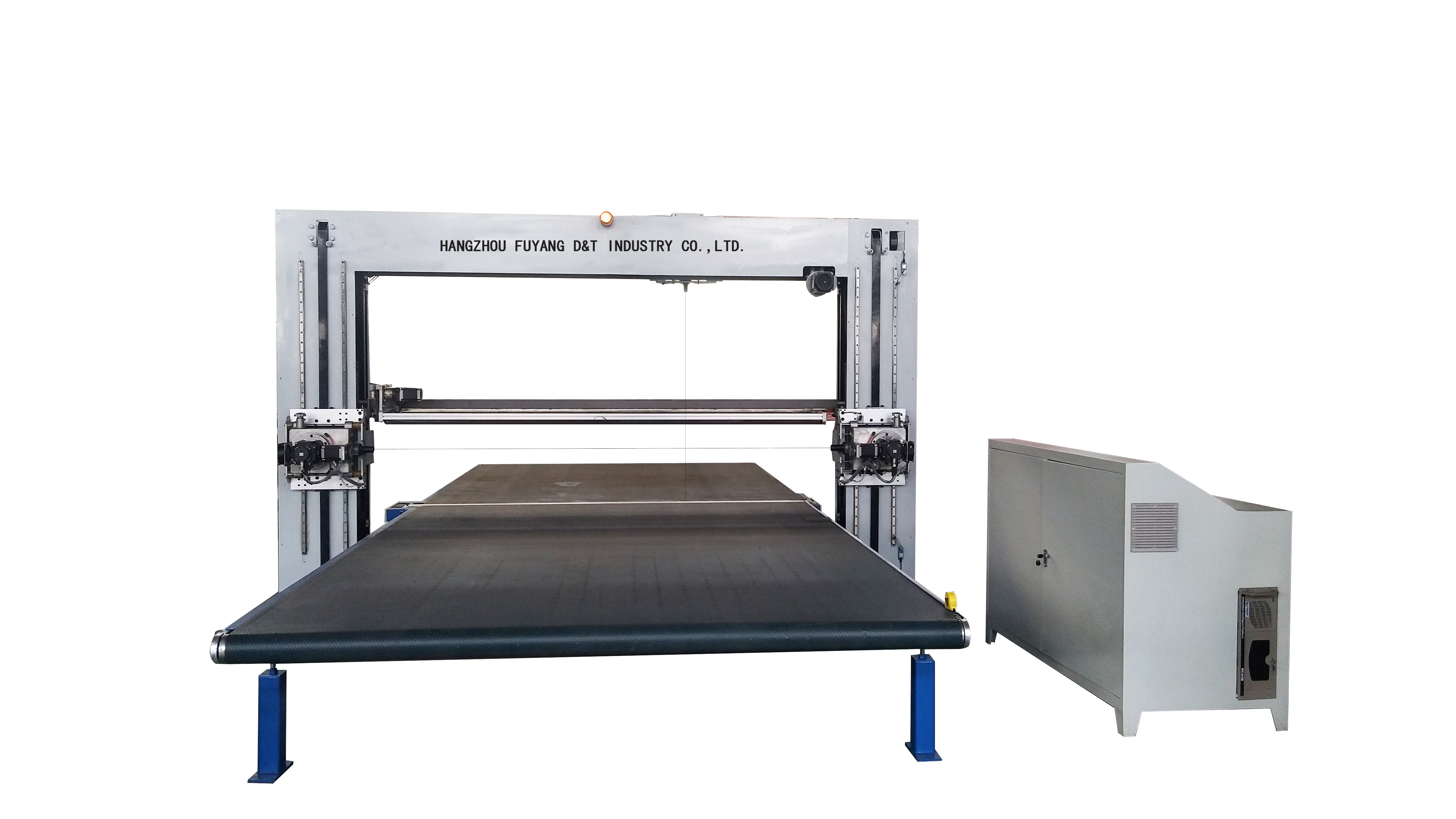

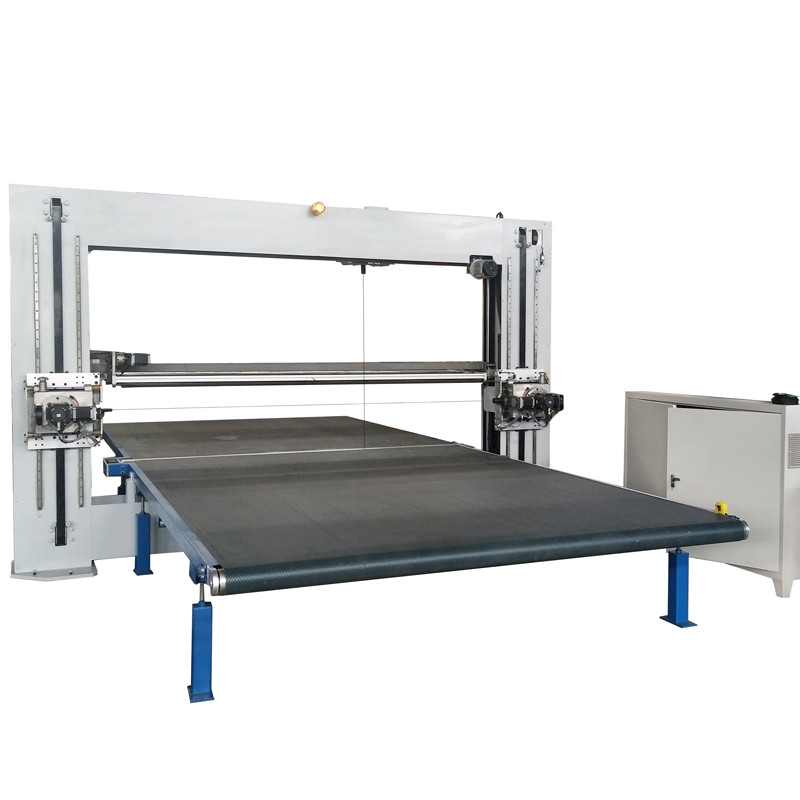

DTC-SD2012 Dual Blade Oscillating Foam Contour Cutting Machine PU Foam Sponge
1.Product Description
1) In addition to CAD software, we also designed another drawing software designed by our engineers, which is very easy to use. Operators only need to receive simple computer knowledge training.
2) The CNC contour cutting machine is equipped with a wireless remote control, which makes the operation more user-friendly and convenient.
3) Equipped with high-precision servo system; the cutting speed is fast, the cutting is accurate, and the work efficiency is improved.
4) During the cutting process, 85% of the dust is collected into the cloth bag, and the noise is low.
5) Operating system: Windows XP
6) Design software: Auto CAD/self-developed CNC operating software.
7) Cutting software: foam cutting control system
2.Product Parameter
| Type | DTC-SL2012 | DTC-SD2012 |
| Max. Product Size | 3000*2000*1200(mm) | 3000*2200*1250(mm) |
| Horizontal Cutting Blade | 2300*3*0.5mm | 2300*3*0.5mm |
| Vertical Cutting Blade | 2300*3*0.5mm | 2300*3*0.5mm |
| Control System | Industrial Computer+Windows XP with D&T Profiler | Industrial Computer+Windows XP with D&T Profiler |
| Cutting Speed | 0~10m/min(adjustable) | 0~10m/min(adjustable) |
| Power | 6kw,380v,50hz | 10kw,380v,50hz |
| Blade Tension | Cylinder Tensioning 6 Bar | Cylinder Tensioning 6 Bar |
| Overall Weight | 1800kg | 2000kg |
| Overall Dimension | 5000*3200*2400mm | 5800*3180*2400mm |
·Main Features
1) Suitable for sponge, flexible PU.
2) Cutting line: high speed, toothed blade.
3) Since the blade cuts with high-speed vibration, the work can be finished quickly and smoothly.
4) Dust free.
5) Simple operation
6) Various working tables for choosing to meet your demands.
3.Cutting material sample
4.Packing information
Packing has a professional team to load the cargo.
We also have long-term cooperative relationships with forwarders with rich forwarding experience.
Don't worry. Save money and be safe.
·After-sale Service:
1) Our engineers are available overseas for tuning installation, commissioning and training. Flight ticket and suitable accommodation
In addition, there is an additional charge of $60 per person per day.
2) Lifetime free maintenance.
3) Free training course in our factory.
4) 24/7 online service, free technical support.
5) The machine has been calibrated and tested before shipping.
·Warranty:
12 months limited warranty from date of delivery, excluding wear parts.
You are responsible for shipping costs for replacement parts during the warranty period.
·Terms of Papent:
30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
1) Q: Are you a factory?
A: Yes, we are a manufacturer and have been making foaming machines since 2006.
2) Q: What drawing software do you use?
A: Auto CAD.
3) Q: Whether your engineer can come to our factory for machine installation?
A: Yes, of course.
4) Q: Can I import DXF files from another source?
A: Yes. Any DXF file can be used.
5) Q: Other fast wire machines had dust extraction and filters. Does this machine also have a dust collection function?
A : Yes, please include.
6) Q: Which countries did you sell to?
A: Canada, Mexico, Brazil, Australia, Singapore, Malaysia, United Arab Emirates, Yemen, Qatar, Algeria, etc.
7) Q: What kind of safety controller does the machine have?
A: The control box and machine have an emergency bottom to stop the machine. There are two fences around the cutting frame and the machine stops when the fences open.
