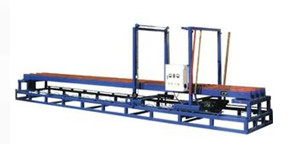

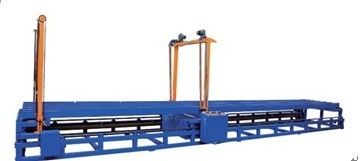

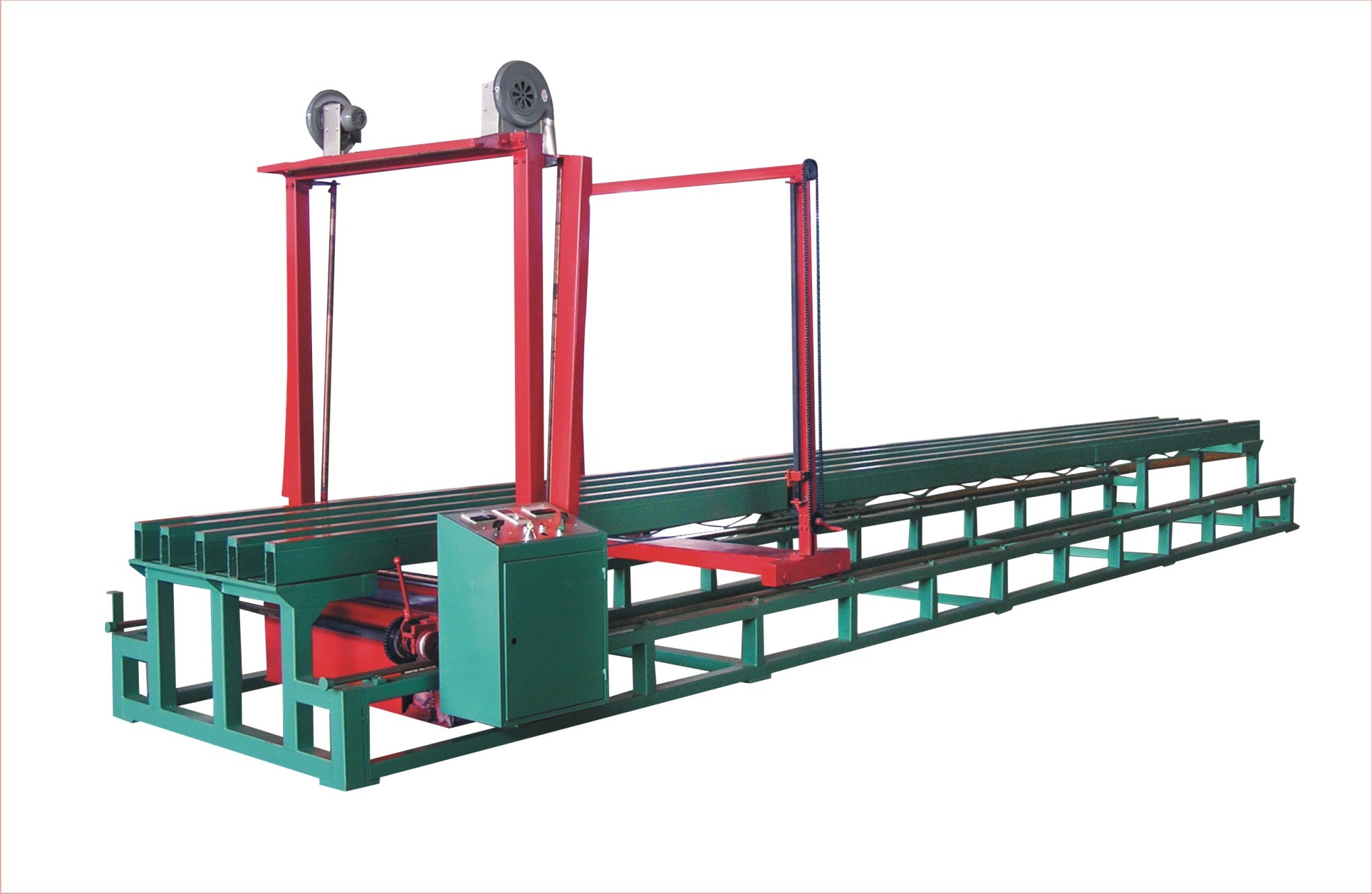

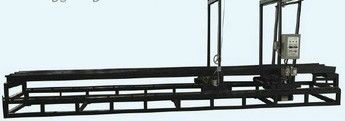

Continuous Block EPS Cutting Machine Automatic For Styrofoam , CE
1. Main Features:
1. The main frame of the machine is welded from square profile steel, with strong structure and high strength.
2．The machine has horizontal, cross and edge cutting devices.
3．The machine adopts transducer to get the suitable cutting speed for different type and density EPS block.
4．Voltage adjustment. With the transducer, the machine can cut sheet excellent.
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,
polyurethane cutting machine, quilting machine and foam relation assistant
equipments. Through the research of our engineers, our cutting machine had connected well
with the popularized CAD and achieved automation and high efficiency, high accuracy and
makes it easy to operate.We always put the customer on the first place and make utmost efforts
to satisfy you.We wholeheartedly look forward to developing economic, technical and trade
cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting
machine, eps cutting machine, quilting machine and so on.
Note: The price bases on present exchange rate. It will be changed with the exchange rate.
| TECHNICIAL DATA | |||||
| Type | DTC-EP200 | DTC-EP300 | DTC-EP400 | DTC-EP600 | DTC-EP800 |
| Max. Product Size |
2000×1300× 1300(mm) |
3000×1300× 1300(mm) |
4000×1300× 1300(mm) |
6000×1300× 1300(mm) |
8000×1300× 1300(mm) |
| Power | 11.2kW | 11.2kW | 11.2kW | 11.2kW | 11.2kW |
| Overall Dimension |
4800×1950× 1850(mm) |
5800×1950× 1850(mm) |
6800×1950× 2450(mm) |
8800×1950× 2450(mm) |
10800×1950× 2450(mm) |
| Overall Weight | 800㎏ | 1000㎏ | 1200㎏ | 1600㎏ | 2000㎏ |
This offer is valid: 30 days
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T or Sight Confirmed Irrevocable L/C
Delivery: 40 days after receipt of advance payment.
Installation and Start-up: One technician (with one Translator) will be assigned to coordinate installation, Commissioning and training, cost for flight and suitable accommodation plus USD60/day each will be charged additionally.
Warranty: 12 months limited warranty
The machine also can be produced by customer’s special requirement.
.
