| Re-bounding Foam Cutting Machine | ||
| Model | DTPQ-1650R | DTPQ-2150R |
| Max.Product Size | L2000*W1650*H1200mm | L3000*W2500*H1200mm |
| Cutting Thickness | 3.0-80mm | 3.0-80mm |
| Cutting Knife | 8940mm | 10000mm |
| Control System | Transducer | Transducer |
| Cutting Speed | 0-25m/min | 0-25m/min |
| Overall Power | 8.12kw | 8.12kw |
| Overall Dimension | L5800*W3800*H2400mm | L7800*W4300*H2400mm |
| Overall Weight | 18000kg | 2000kg |

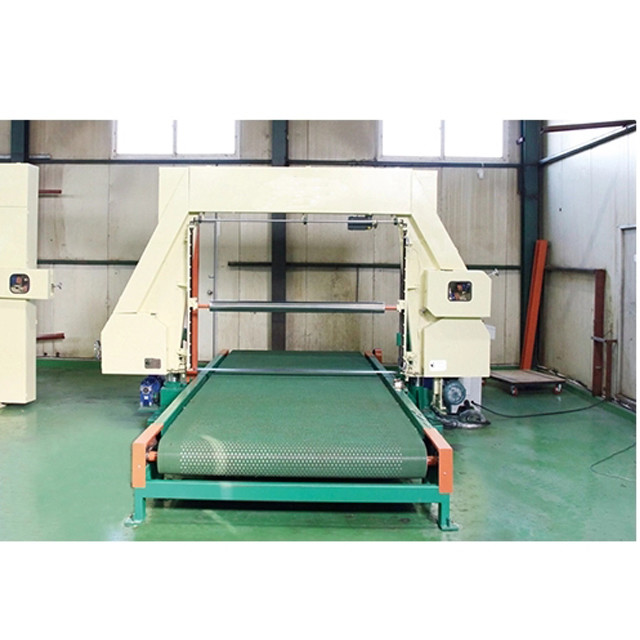

The machine is used for cutting rigid foam, foam plastic-board insulation, hard PU.
The worktable is adopt fully automatic digital control, setting the number by control box as need cutting thickness and foam density, the worktable automatically runs.
it can adding to pressure roller, and in order to prevent cutting foam removing. easy to operate, cutting precision.
